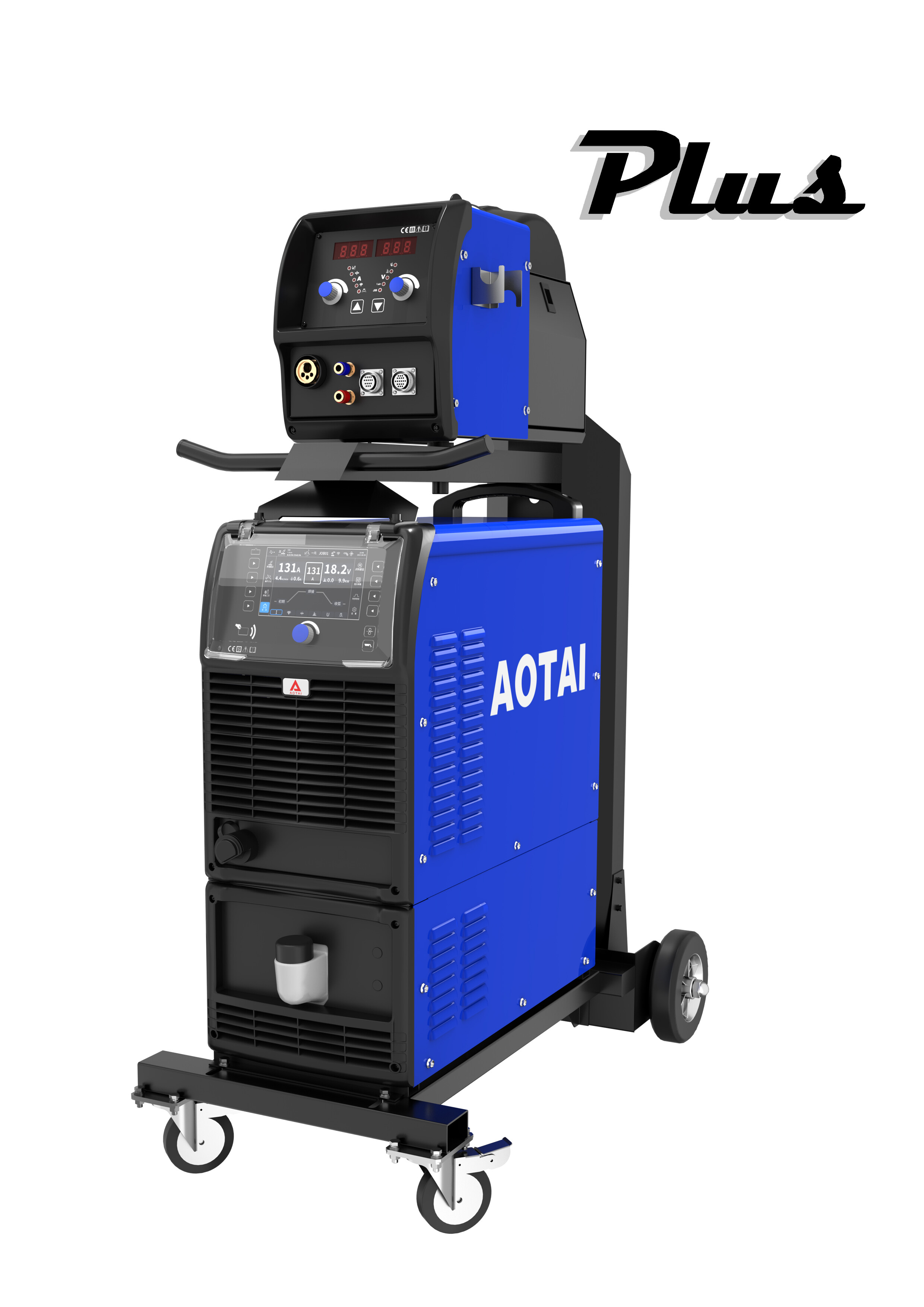

Visual MIG500

LONG WELDING CABLE 45m,WELDING PROCESS:RAPID PULSE MIG(FP MIG)/ DEEP PENETRATION(PD MIG)/DOUBLE PULSE MIG/PULSE MIG/CV MIG


Output t35.png t33.png t17.jpg t18.jpg t55.png t56.png t12.jpg 微信图片_20220317091517.jpg t10.jpg t62.png


Input t39.png  t41.png       Process  t26.jpg


Materials t45.png t46.png t49.png t57.png t47.png                           t16.jpg  t15.jpg


Share:

Inquiry
Features
Specification
Application
Accessories
Download
  • LCD HMI: 7#LCD touchscreen

  • High-frequency inverter: 60kHz inverting frequency, finely managing droplet energy in  real-time, concentrated arc energy, and high arc stiffness

  • Stable arc: latest energy control solution, up to 45m pulse welding loop cable, stable  welding with low current, non-broken arc

  • Precise current: wider adaptive range of mixed gas, more precise consistency between  electrode extension length and current

  • Easy arc striking: freely switch between arc starting modes, high arc striking success rate

  • Advanced processes: It equips pulse, double pulse, rapid MIG,deep penetration penetration, and CV welding process modules as standard, low spatter, and other welding  processes as optional. Customized developing process modules according to customer  requirements are available

  • Aluminum alloy welding expert: strong oxidation film breakthrough ability of aluminum alloy  welding, strong arc directivity, even metal transfer, fine and beautiful welds appearance

  • Stable wire feeding: Newly designed twin-closed-loop wire feeding control system cooperates with a large-torque permanent magnet motor to ensure precise and stable wire feeding

  • One-key operation: save and recall 100 sets of parameters

  • Exclusive usage: Bound via IC card, exclusive usage for the nominated person, quality  control, and quality traceability



Visual MIG500
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10%, 50/60Hz
Rated input power (KVA)25
Rated input current (A)38
Display7#LCD (Touch screen)
Range of welding current (A)60~500
Range of welding voltage (V)17~39
OCV (V)76
Duty cycle (%)100
Full-load efficiency (%)≥87
Wire diameter (mm)Ф1.0,Ф1.2,Ф1.4,Ф1.6
Gas flow (L/min)10~25
Dimension (mm3 )660*320*560
Weight (Kg/lb)55/121.3
Insulation classH
IP classIP23

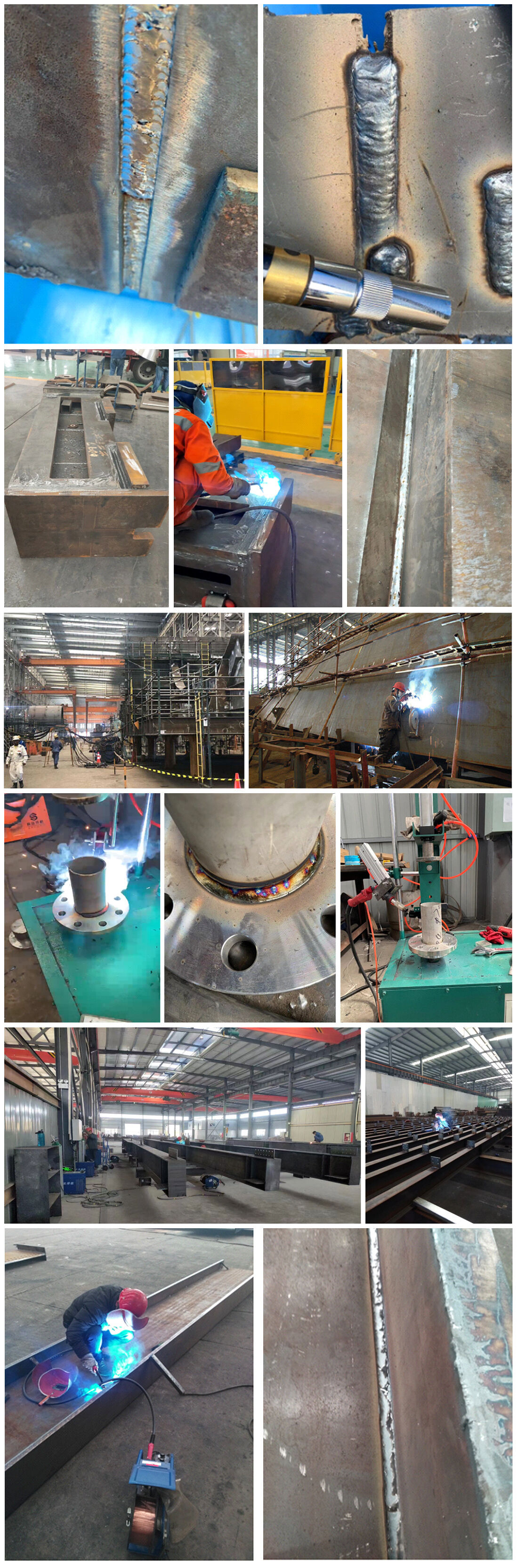

500m plus应用案例.jpg
