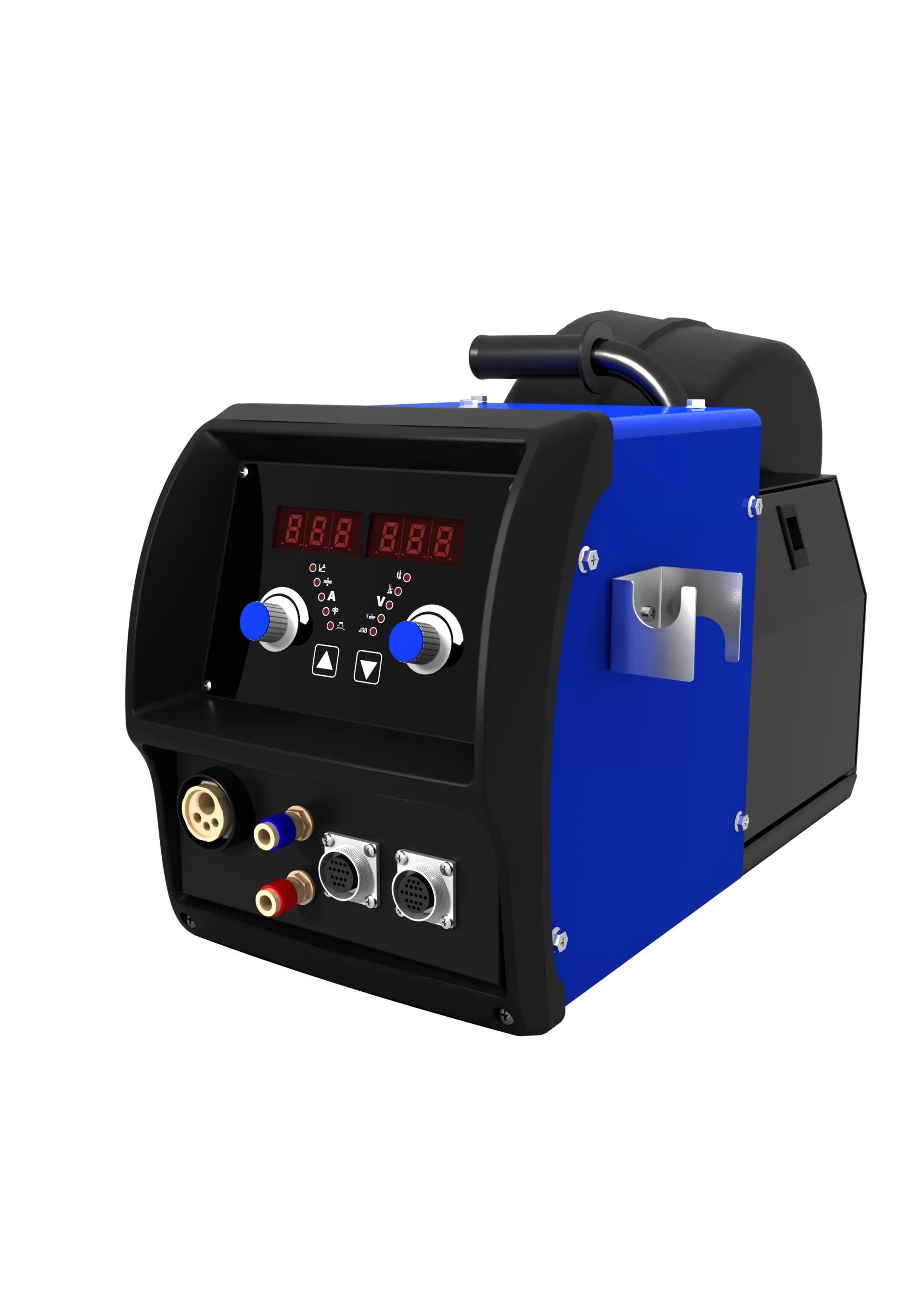

WF-500G (Mc)

Share:

Inquiry
Features
Specification
Application
Accessories
Download

  • Closed type wire feeding mechanism, safer protection, reduced short-circuit occurance

  • 4WD+encoder wire feeding motor, digital motor control, stable and more precise wire feeding speed

  • MCU control, digital display, more precise parameters adjustment

  • Euro-type welding torch connector

  • 300mm wire spool design

  • Optional travelling wheels, easy to move to every corner

  • Easy to be settled on the trolley, reduced space occupation

Technical Parameters

Model
WF-500G (Mc)
MotorMagnet motor (with encoder)
Motor Voltage(V)DC24
Ratedcurrent(A)5
Wire feeding speed (m/min)1.0-22
Rated welding current(A)500
Duty cycle (%)60
Wire diameter(mm)Ф0.8, Ф1.0, Ф1.2, Ф1.4, Ф1.6
Spindle diameter(mm)50
Wire coil (mm)Φ300*Φ50*103
Gas flow(L/min)10~25
Dimension(mm3)686x284x406
Weight (Kg)15
IP classIP23
