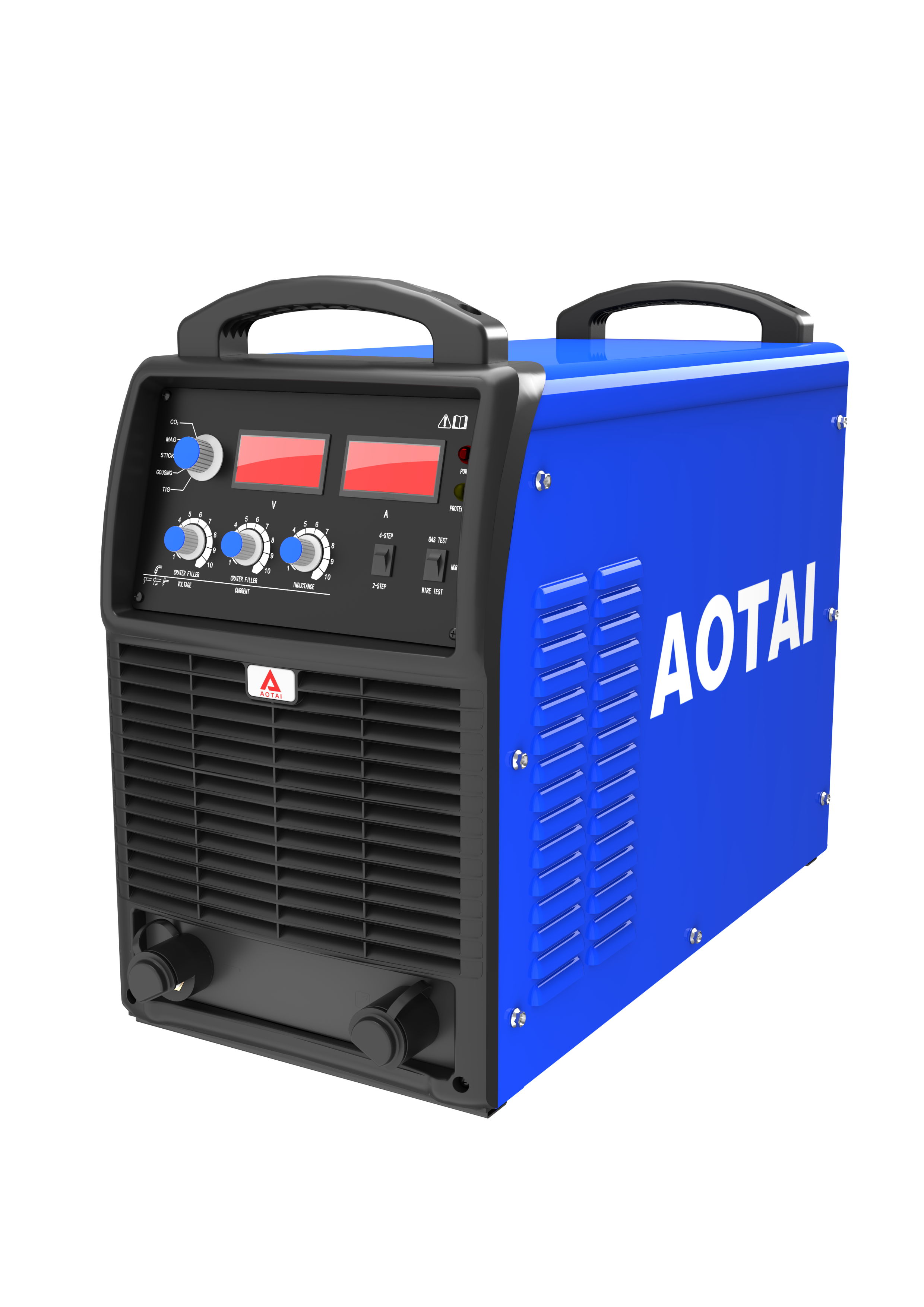

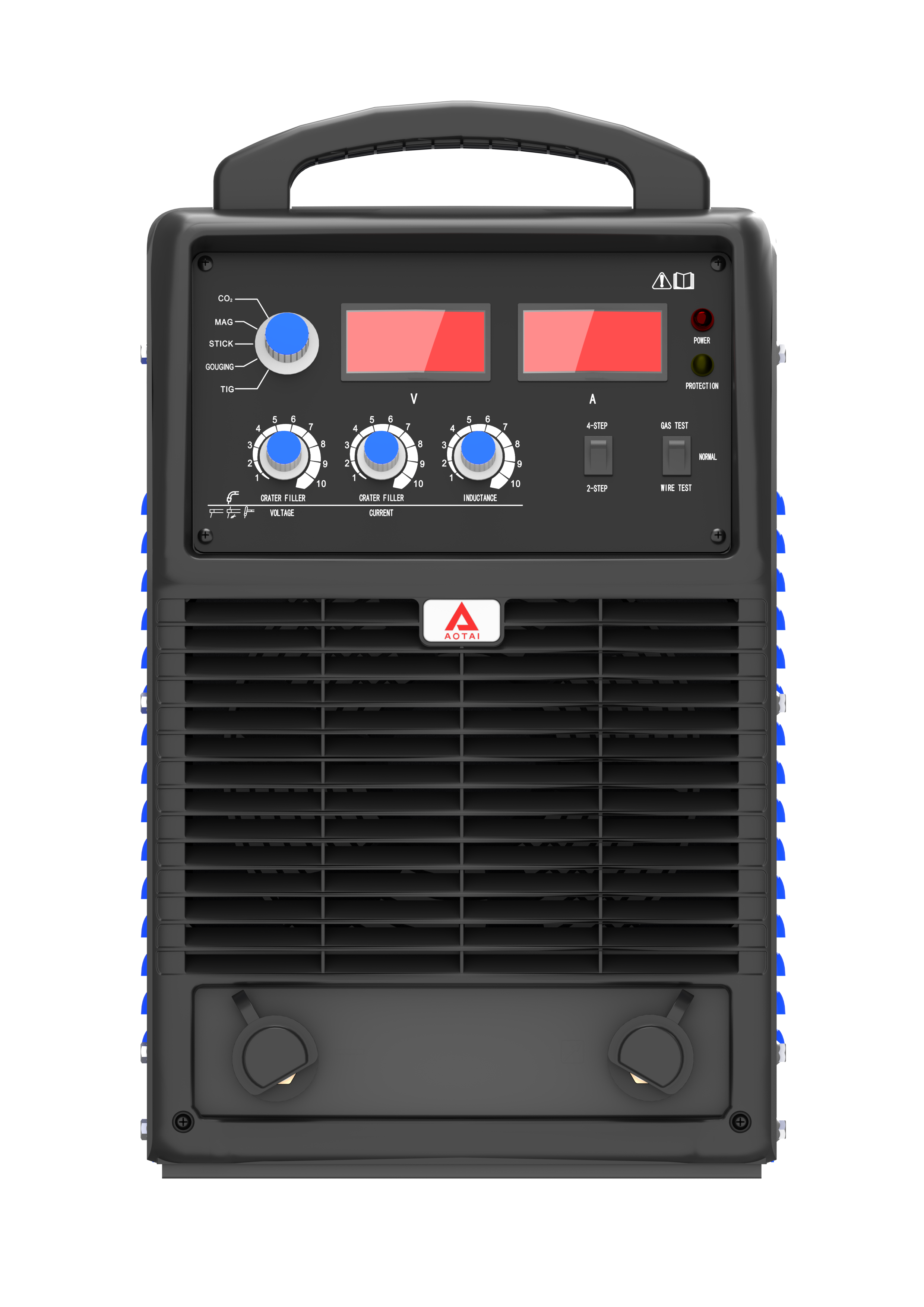

MIG-350 /350C /400 /500 /630M

MIG-M series is specially designed analog MIG for steel welding. All important MIG preference, like burnback and creep start is already included in this power source. All MIG-M machines is multiprocess to perform all needs. MIG-MC series is compact design.

Output Input Process

Materials

Inquiry

Features

Specification

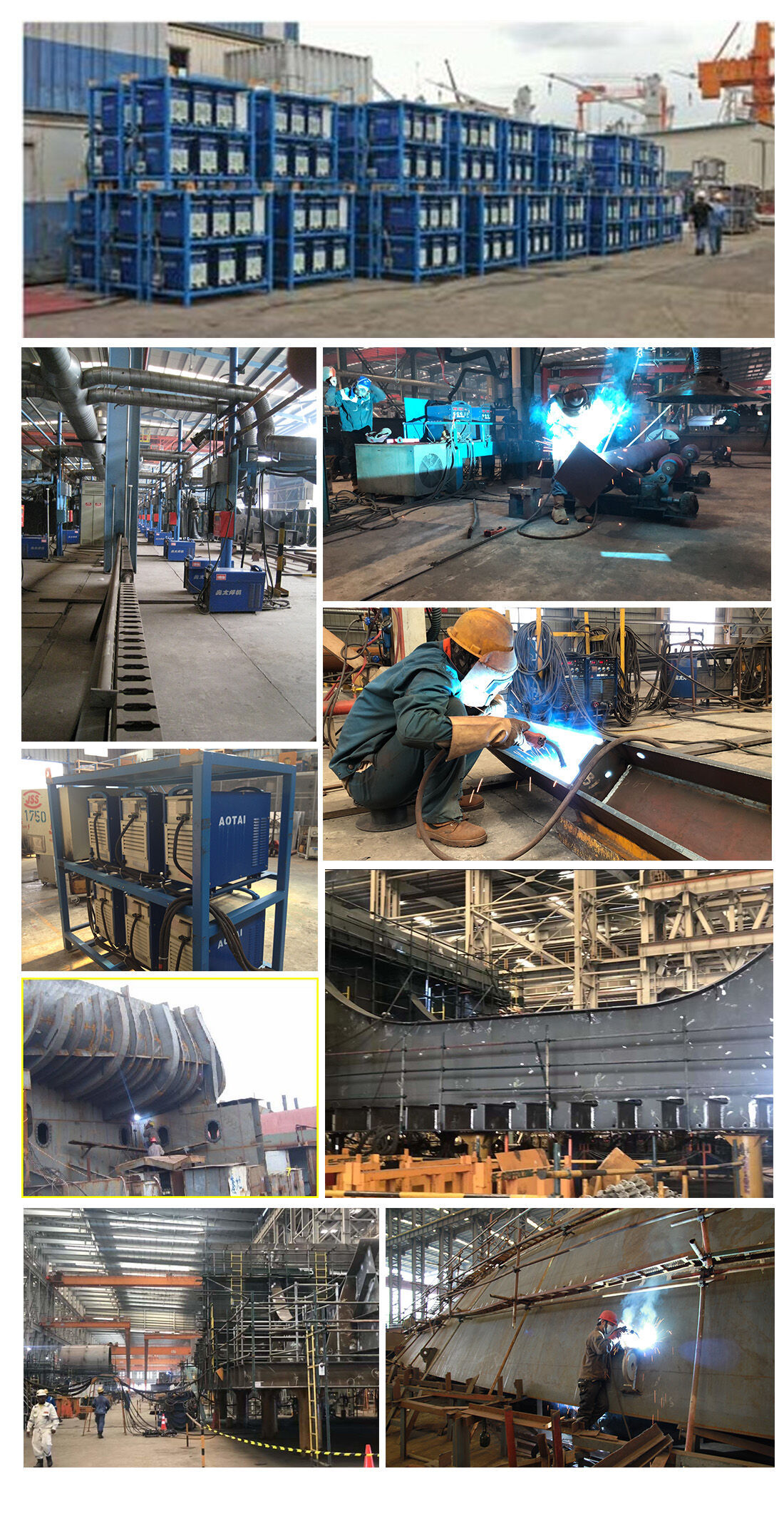

Application

Accessories

Download

Unique waveform control technology: less spatter and stable current
Advanced creep start and burn back technologies: easy arc starting and arc stopping

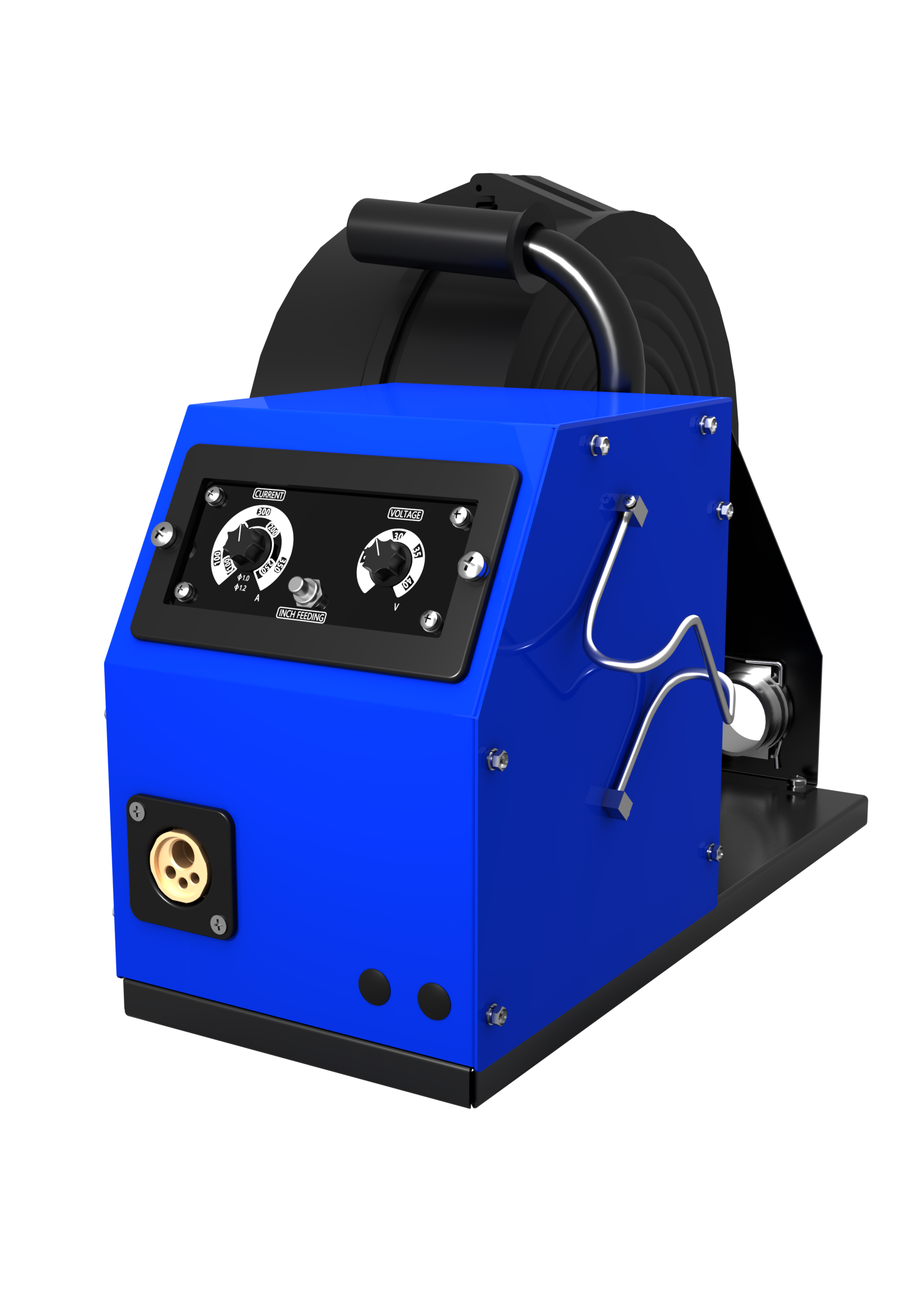

Different modes of wire feeder: integrated wire feeders, also have reserved sockets to connect with separated wire feeders (MIG350MC)
Stepless adjustment: stepless adjustment of current and voltage in a wide range
Trigger mode: 2-Step and 4-Step
VRD function

	MIG350M	MIG400M	MIG500M	MIG630M	MIG350MC
Rated input voltage /frequency (V/Hz)	3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)	12.7	18.7	23.4	33.6	12.7
Rated input current (A)	19.3	28.4	38	51.0	19.3
Duty cycle (40℃)	60%@350A	60%@400A	100%@500A	100%@630A	60%@350A
OCV (V)	70	70	82	95	70
Adjustable current range (A)	60-350	60-400	60-500	60-630	20-350
Adjustable voltage range (V)	14-40	14-40	14-50	14-50	14-40
Trigger mode	2 /4T
Wire size (mm)	0.8, 1.0, 1.2	0.8, 1.0, 1.2	1.0, 1.2, 1.6	1.0, 1.2, 1.6	0.8, 1.0, 1.2
Electrode size (mm)	2.0-6.0
Protection class	IP23				IP21S
Insulation class	H
Dimension (mm)	660320560	660320560	660320560	660320560	944500865
Weight (kg /lb)	40 /88.3	40 /88.3	50 /110.3	60 /132.4	65/143.3
