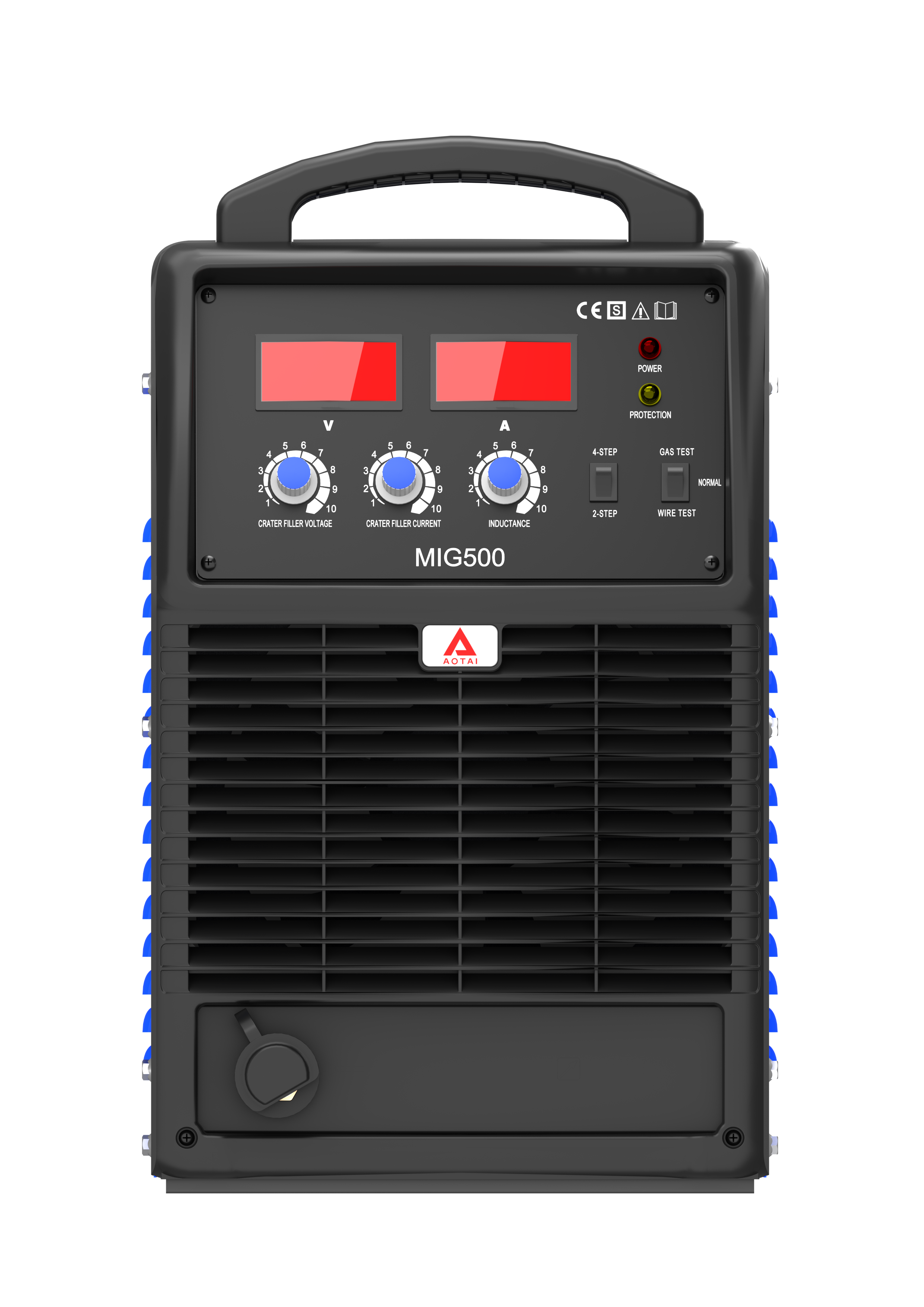

MIG-250C/350/500/630

MIG series is specially designed analog MIG for steel welding. All  important MIG preference, like burnback and creep start is already included in this power source.


Output t35.png  t33.png  t17.jpg       Input t39.png  t41.png       Process t26.jpg


Materials t45.png                                                                     t15.jpg


Share:

Inquiry
Features
Specification
Application
Accessories
Download


  • Beautiful weld formation: small welding distortion and high welding deposition rate

  • Slow wire feeding: easy for arc starting

  • Ball removing function: ensure stable arc-stopping performance

  • Less spatter: advanced waveform control technology

  • Continuous adjustment: for current and voltage in a wide range

  • Continuous welding: keep welding for a long time with a high duty cycle

  • Digital display: accurate parameters preset and easy to operate

  • Different welding wires: applicable for solid and flux-cored wires



MIG250CMIG350MIG500MIG630
Rated input voltage /frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)8.512.72333.6
Rated input current (A)12.919.33851
Duty cycle (40℃)60%@250A60%@350A100%@500A100%@630A
OCV (V)55708295
Adjustable current range (A)40-25060-35060-50060-630
Adjustable voltage range (V)14-3014-4014-50
Trigger mode2T2 /4T
Wire size (mm)0.8, 1.00.8, 1.0, 1.21.0,1.2,1.6
Protection classIP21SIP23
Insulation classH
Dimension (mm)500*272*495660*320*560660*320*560660*320*560
Weight (kg /lb)30 /66.340 /88.350 /110.360 /132.4

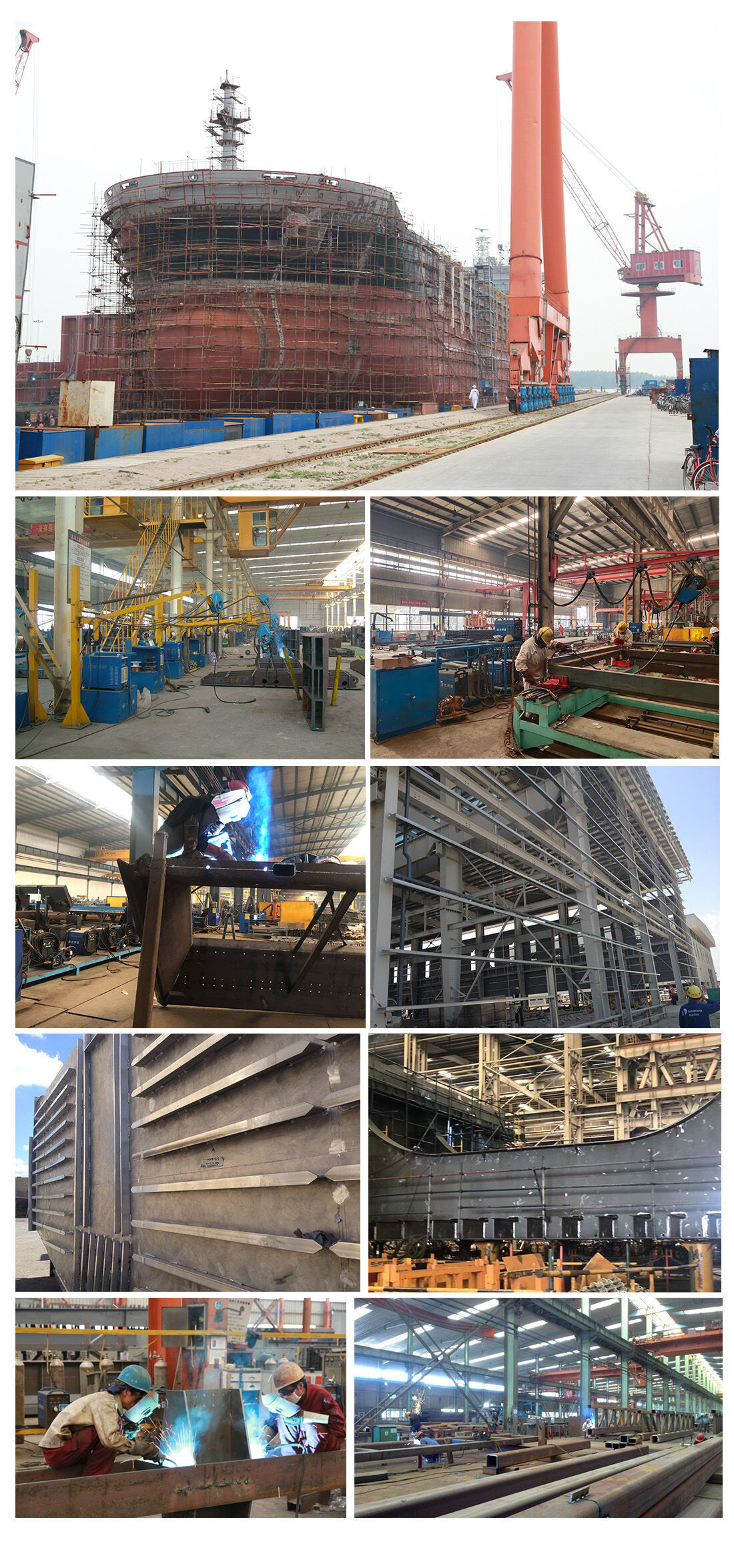

MIG250 350.jpg



Standard Equipments

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m

  • 1 Gas-cooled (or water-cooled) torch L=3m

  • 1 Wire feeder with Europe connection

  • 1 wire feeder cable L=5m
