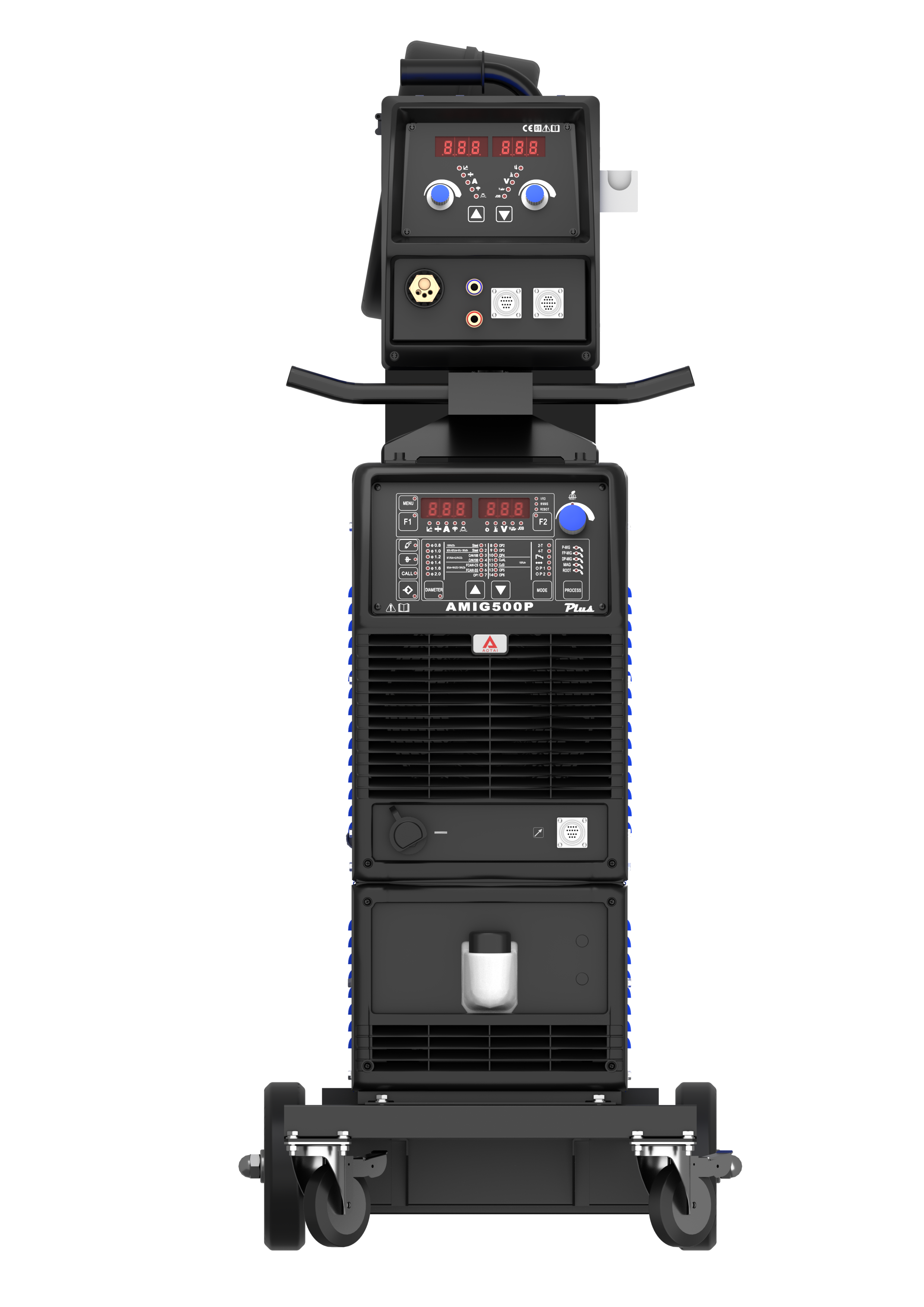

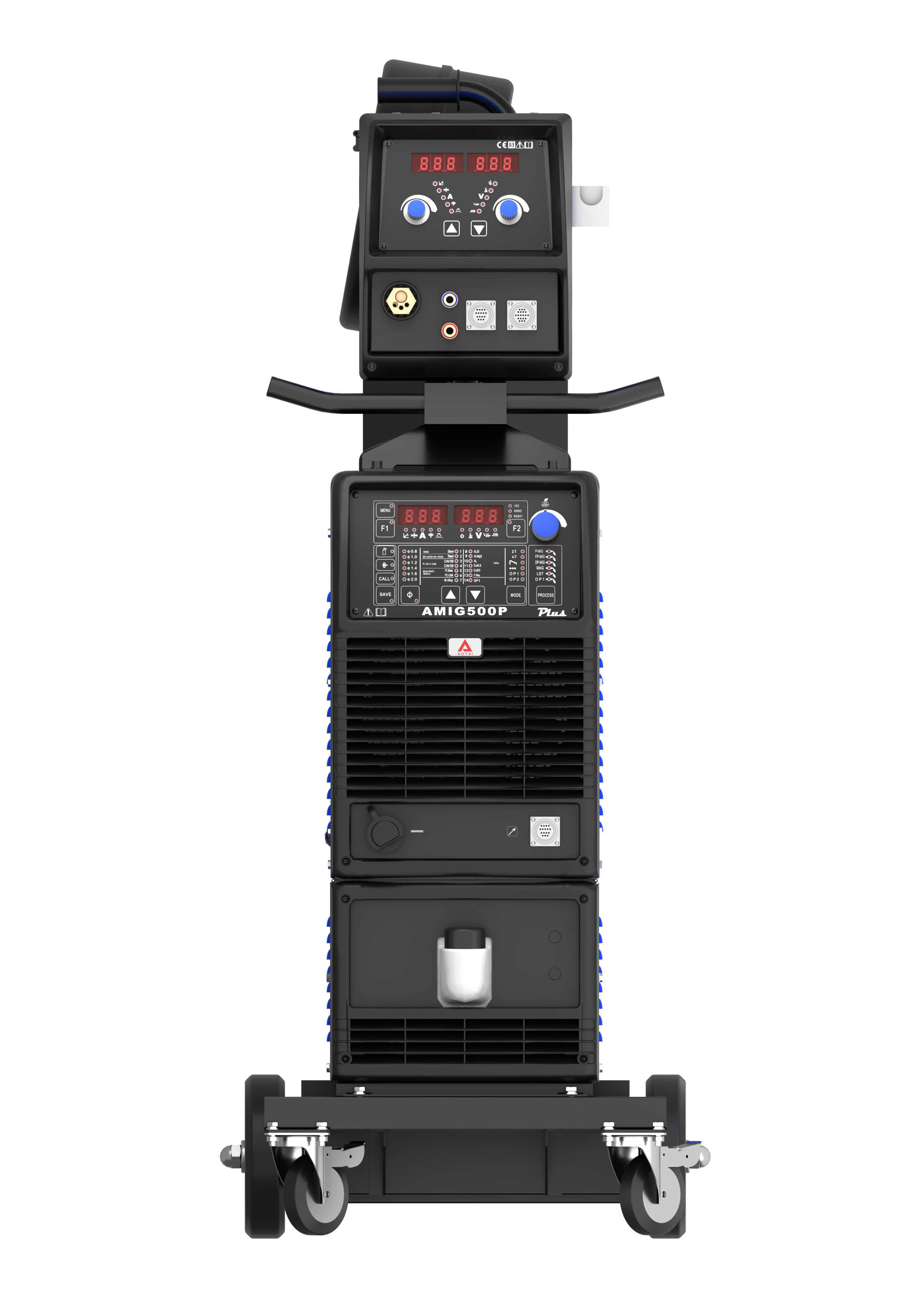

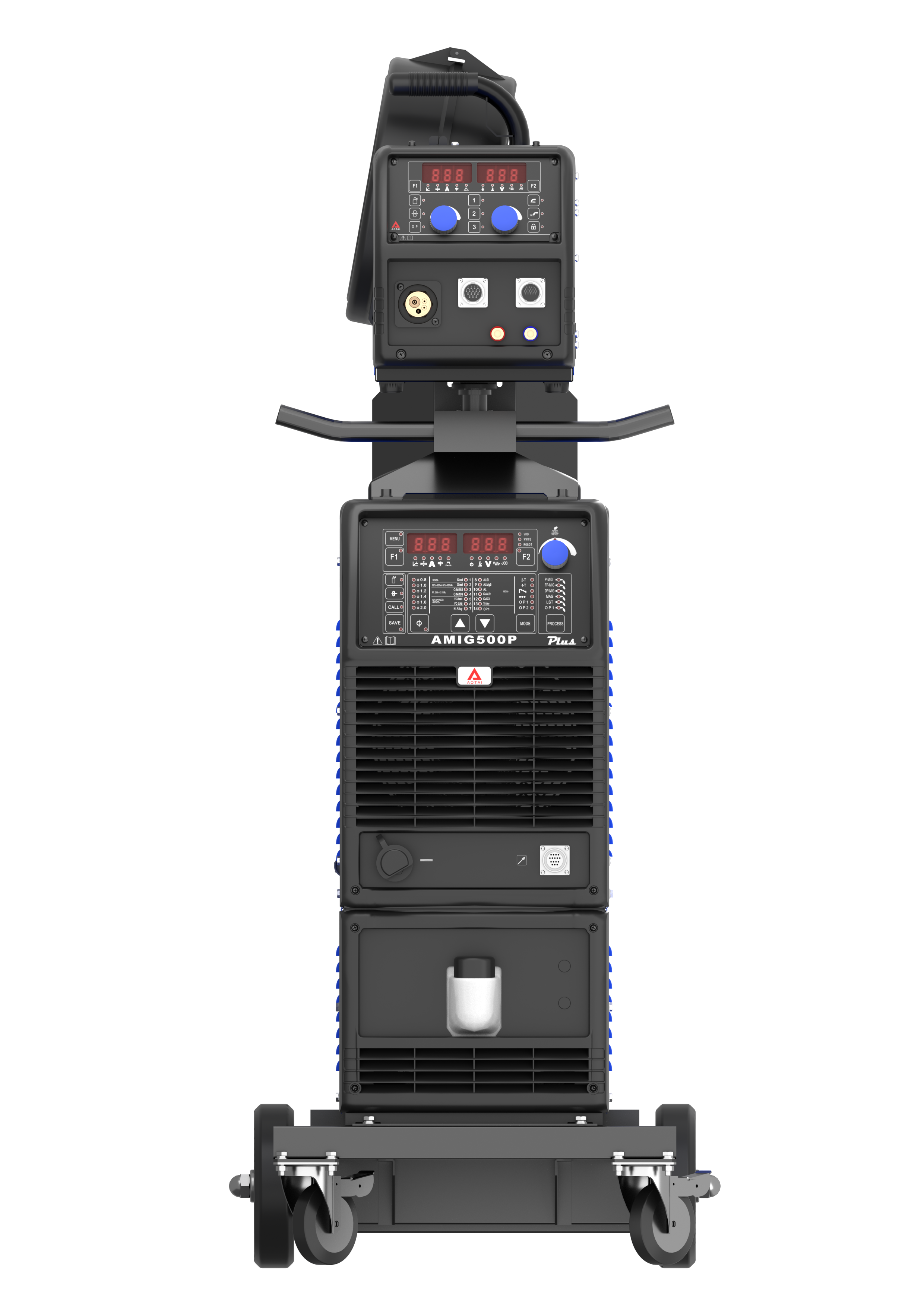

AMIG-400/500/630P PLUS

LONG WELDING CABLE 45m,WELDING PROCESS:RAPID PULSE MIG(FP MIG)/ DEEP PENETRATION(PD MIG)/DOUBLE PULSE MIG/PULSE MIG/CV MIG


Output t35.png t33.png t17.jpg t18.jpg t55.png t56.png t12.jpg 微信图片_20220317091517.jpg t10.jpg t62.png


Input t39.png  t41.png       Process t26.jpg


Materials t45.png t46.png t49.png t57.png t47.png                            t16.jpg  t15.jpg










Share:

Inquiry
Features
Specification
Application
Accessories
Download
  • High-frequency inverter: 60kHz frequency; real-time fine droplet energy management,  concentrated and stiff arc

  • Stable arc: 45m welding cable to weld carbon steel under pulse mode, stable low-current welding

  • Precise current: extended applicable range for shielding gas, precise consistency  between electrode extension and current

  • Easy arc starting: freely switched arc starting mode, high arc starting success rate

  • Platformization design: pulse, double pulse, rapid pulse, deep penetration, CV and other  advanced processes modules, even customized process modules are available

  • Aluminum welding experts: strong oxidation film cleaning ability, high arc directivity,  even droplet transfer, beautiful welds

  • Twin-core control: twin 32-bit high-speed high-precision ARM processor, nanosecond-level responding speed

  • Stable wire feeding: new twin closed loops wire feeding control system + large-torque  permanent magnet motor

  • One-key operation: save and recall 100 sets of parameters

  • Specific personnel operating: bound through IC card to achieve process controlling and  quality tracing

  • ECO design



AMIG400P PLUSAMIG500P PLUSAMIG630P PLUS
Rated input voltage/frequency (V/Hz)3 phase, 380V±10%, 50 /60Hz
Rated input power (KVA)182534
Rated input current (A)27.53851
Range of welding current (A)60~40060~50060~630
Range of welding voltage (V)17~3417~3917~44
OCV (V)767698
Duty cycle (%)100
Full-load efficiency (%)≥85≥87≥89
Wire diameter (mm)Ф0.8,Ф1.0,Ф1.2,Ф1.4,Ф1.6Ф1.0,Ф1.2,Ф1.4,Ф1.6Ф1.0,Ф1.2,Ф1.4,Ф1.6
Gas flow (L/min)15~2010~2510~25
Insulation classH
IP classIP23
Dimension (mm)660*320*560660*320*560655*324*546
Weight (kg)4855/121.365/143

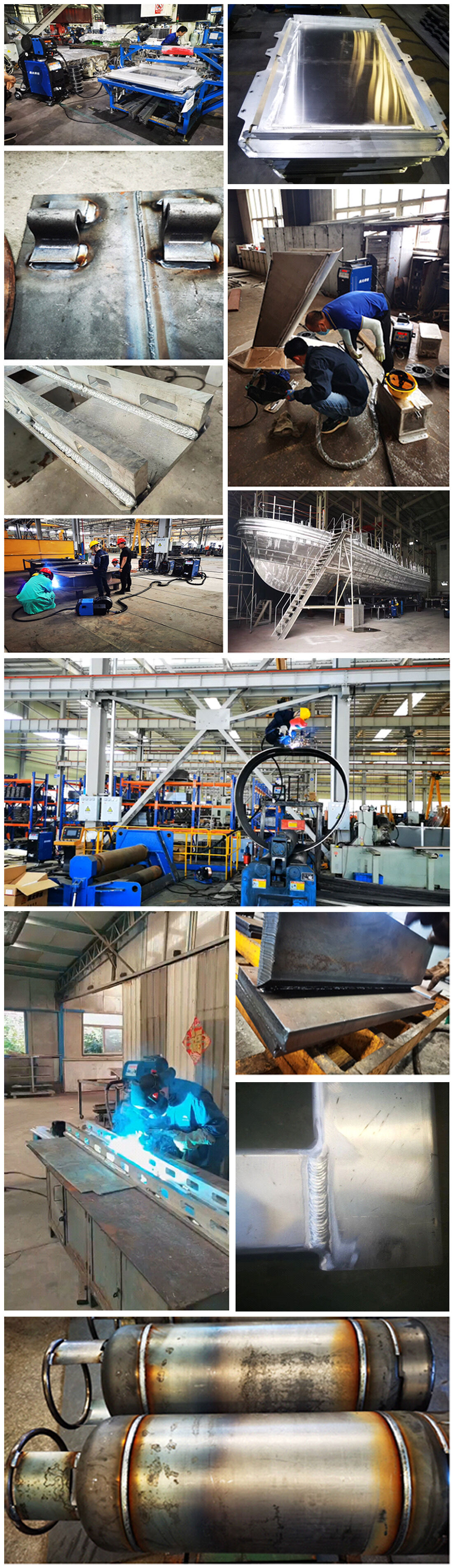

500p plus应用案例.jpg


  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Water cooling machine

  • 1 Ground cable L=3m

  • 1 Water-cooled (or Gas-cooled) torch L=3m

  • 1 Wire feeder with Europe connection

  • 1 Trolley

  • 1 wire feeder cable L=2m
