AMIG280PM

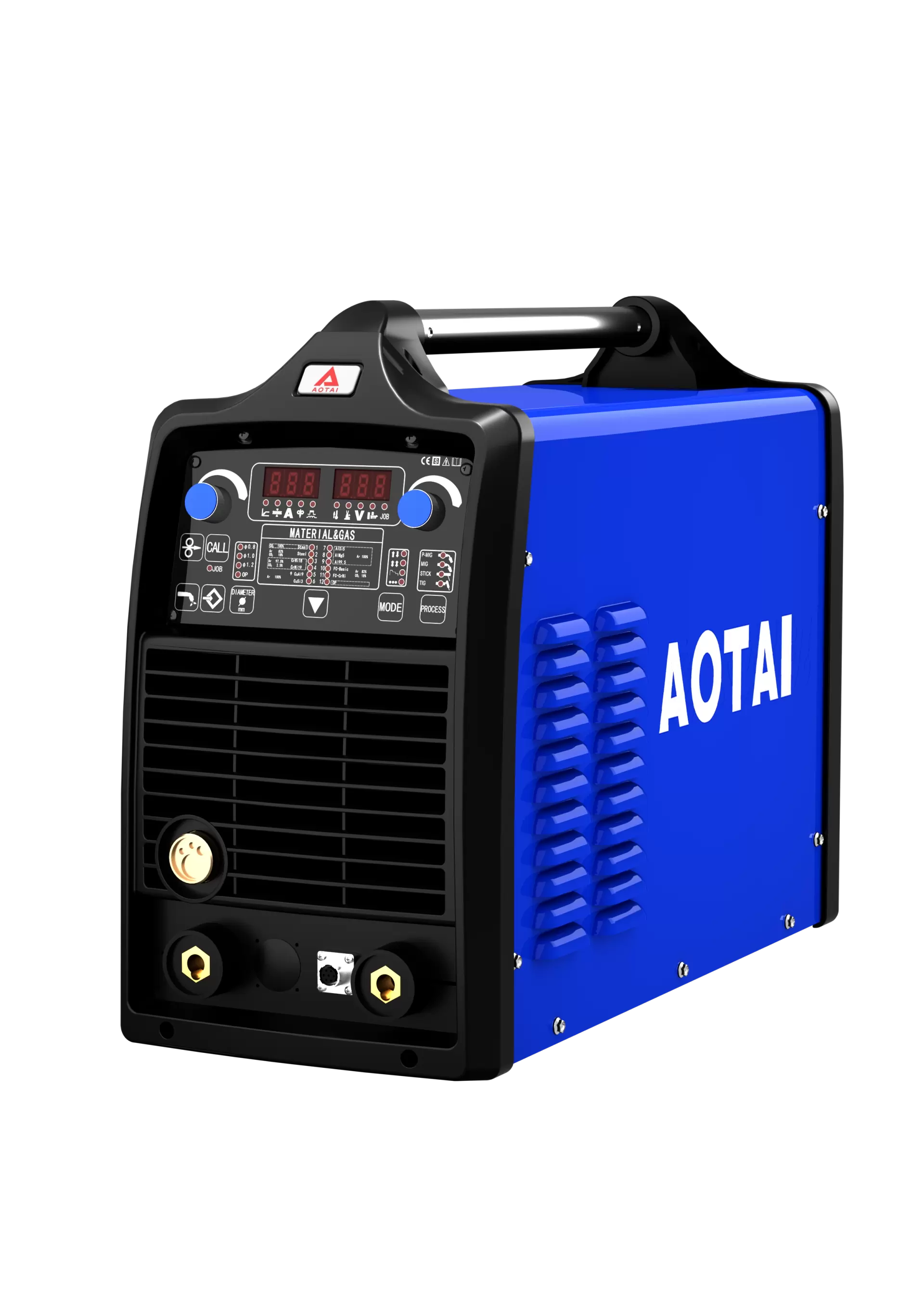

AMIG280PM is a portable welding machine that equips a built-in 4-roller wire feeding mechanism. It is specially designed for light industry, which enjoys light weight, small size, easy transport, and stable wire feeding. AMIG280PM can be applied to weld aluminum sheets, carbon steel, and stainless steel.


Output AMIG280PM AMIG280PM AMIG280PM AMIG280PM AMIG280PM AMIG280PM AMIG280PM       Input AMIG280PM  AMIG280PM


Process AMIG280PM


Materials AMIG280PM AMIG280PM AMIG280PM AMIG280PM AMIG280PM                                         AMIG280PM


Share：

Inquiry
Features
Specification

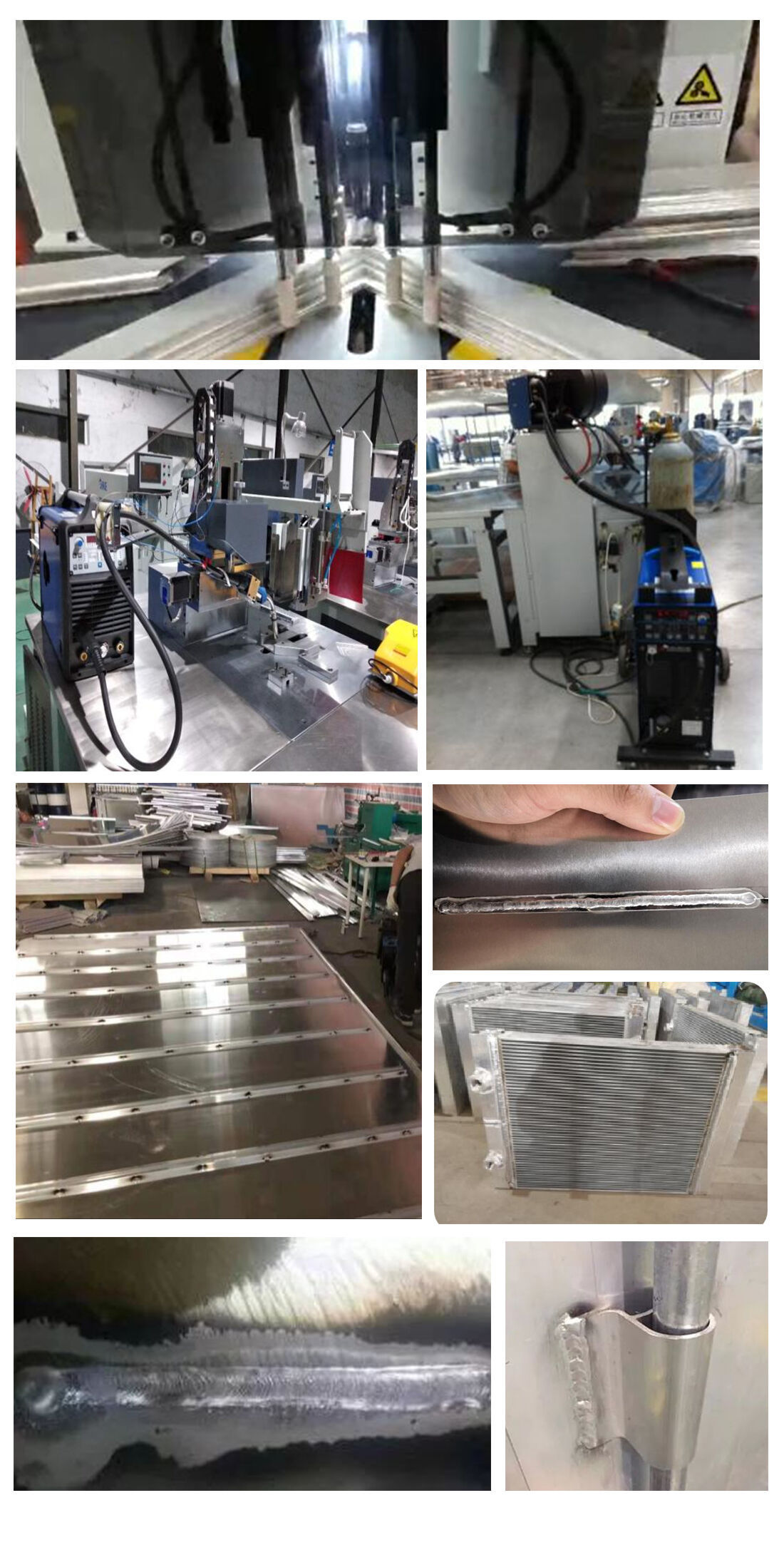

Application
Accessories
Download


  • Excellent sheet welding performance: new numerical control system and perfect combination of exact arc control algorithm

  • Sheet welding expert: especially suitable for aluminum alloy sheet welding with a thickness from 0.7mm to 4mm

  • Precise wire feeding and stable arc: dual-core and double closed loop wire feeding control system+ dual digital grating feedback control

  • Multiple welding modes: single-pulse, double-pulse, CV, MMA, TIG

  • Built-in wire feeder design: small in size and light in weight, easy to move

  • Synergic function: easy to operate and control

  • Standard digital interface: convenient to work together with automation equipment



AMIG280PM
Rated input voltage /frequency (V/Hz)3 phase, AC380V±10%, 50/60Hz
Rated input capacity (KVA)14.3
Rated input current (A)21.5
Duty cycle (40℃)40%@280A
OCV (V)107
VRD (V)16
Output current range (A)20-280
Output voltage range (V)15-28
Wire size (mm)0.8,1.0,1.2
Protection classIP21S
Dimension (mm)630*280*480
Weight (kg /lb)34/74.8
Insulation classH

AMIG280PM



Standard Equipments

  • 1 Power source

  • 1 Connected primary cables L=3m

  • 1 Ground cable L=3m

  • 1 Gas cooled torch L=3m
