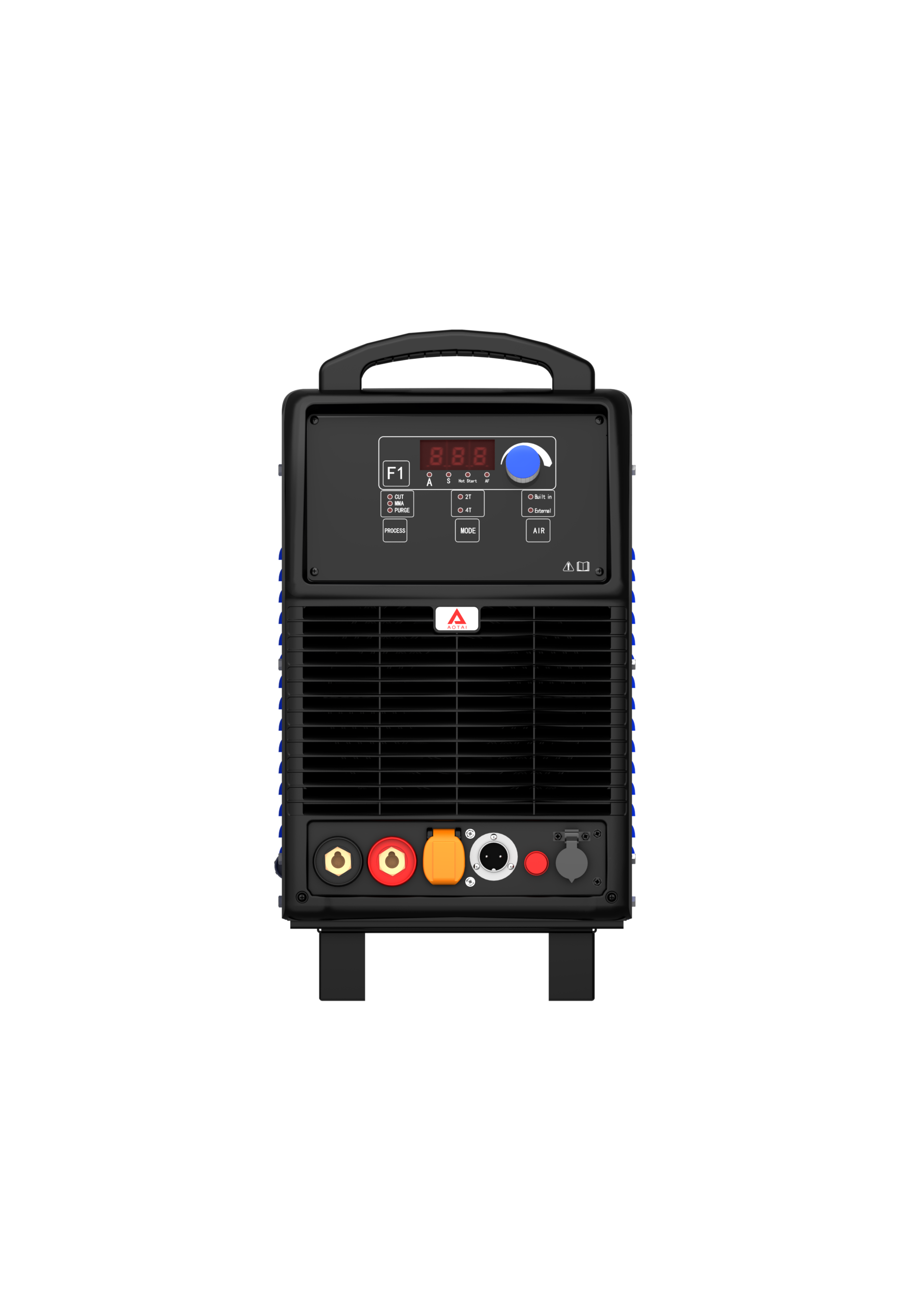

ACUT-120Y

MMA/CUT process,built in air compressor


Output t34.png  t33.png     Input  t39.png  t41.png    Process t27.jpg  t21.jpg


Share:

Inquiry
Features
Specification

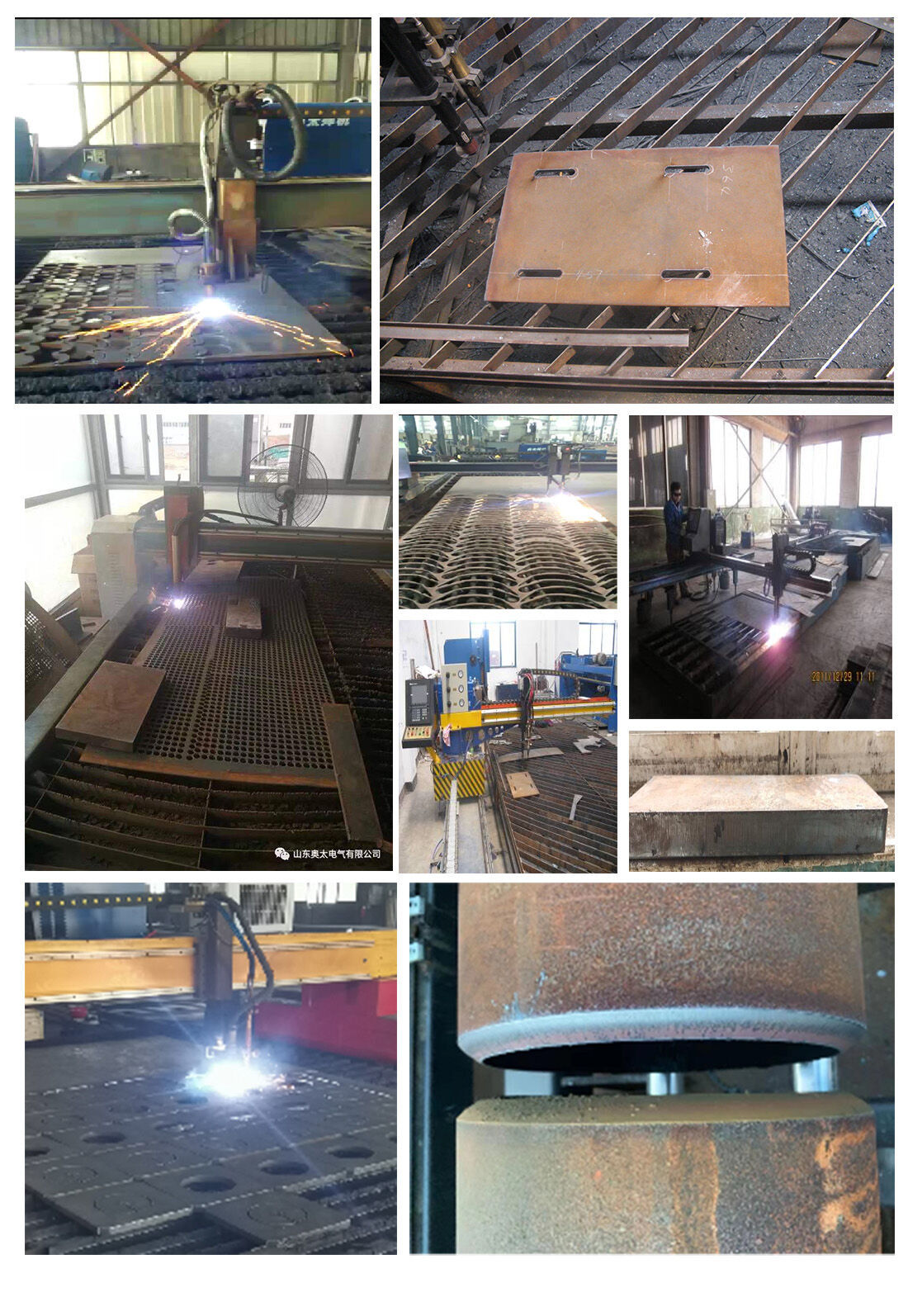

Application
Accessories
Download
  • Outstanding operation performance: full digital control, gas pre-flow time and gas post-flow time, up-slope

  • time and donwn-slope time, and other parameters are adjustable;

  • Non contact type HF start (transfered arc);

  • 2T/4T operation modes;

  • Digital display;

  • Adjustable gas pre-flow time and gas post-flow time;

  • The hot arc starting function and adjustable arc force of MMA;

  • Duty cycle(40℃): cut 120A@60%;

  • Equipping CNC interface and multiple functions to meet requirements of different customers;

  • Full-bridge inverter soft switch control technology, double IGBT modules, quick recovery diode module;

  • long-life polypropylene filter capacitor;

  • Protection against overheat, over-current, over-voltage, output short-circuiting; error code display


Technical Specification



ACUT120Y
Rated input voltage/frequency (Hz)3 phase, AC380V±10%, 50Hz
Rated input capacity (KVA)19
Rated input current (A)29
PlasmacuttingCutting current range (A)30-120
OCV (V)340
Duty cycle (%)60
Maximum cutting thickness/CS (mm)40
Quality cutting thickness/CS (mm)1-20
MMAWelding current range(A)50 - 400
OCV (V)70
Arc force range (A)10 - 200
Duty cycle (%)35
Dimension (mm)758×322×630
Weight (Kg)65
IP classIP21S
Insulation classH





Standard Equipments

1 Power source

1 Connected primary cable L=3m

1 Ground cable L=3m with clamp and quick plug

1 Pressure-reducing valve

1 Plasma torch
