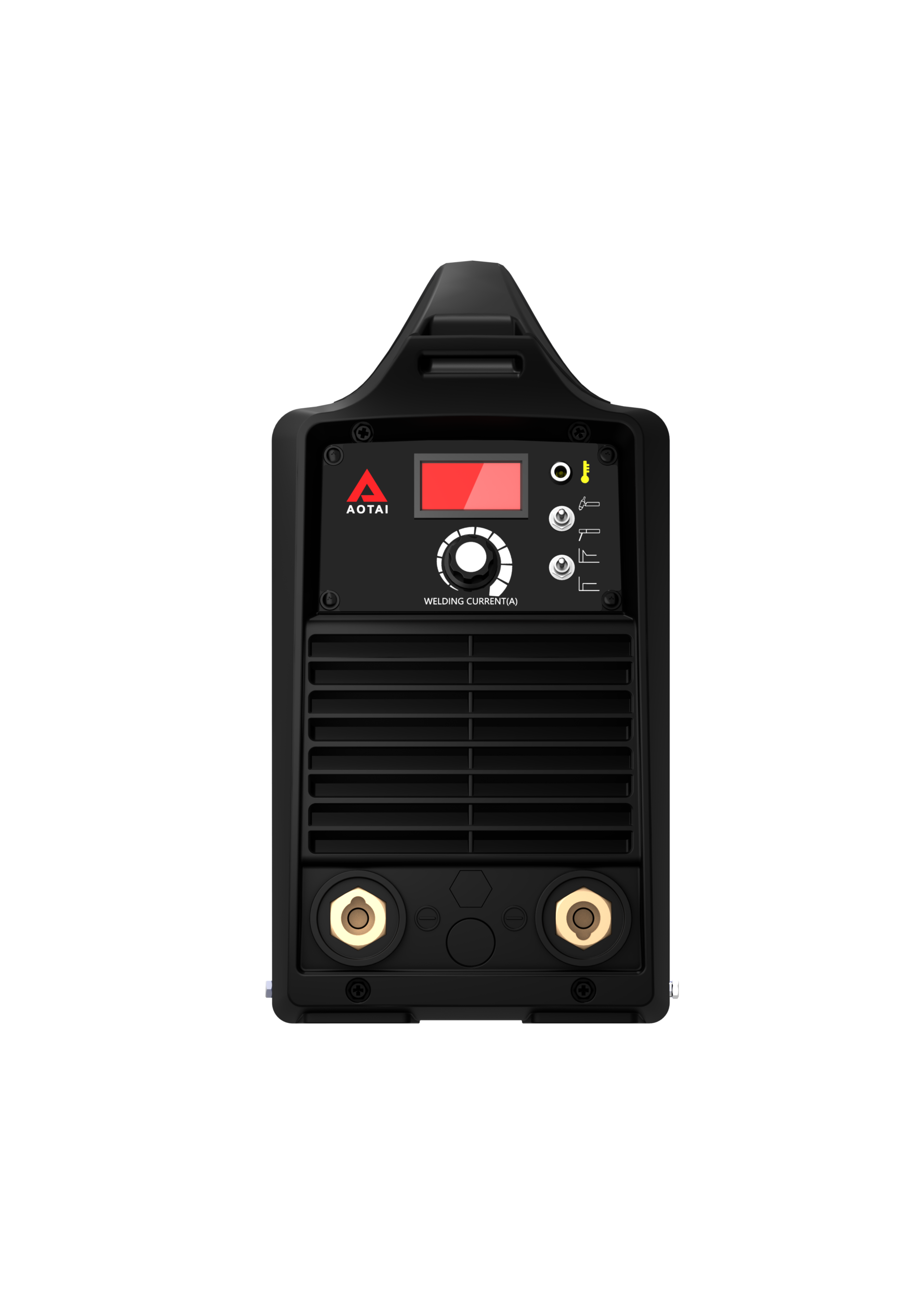

DuraARC200

DuraARC200 is new generation single phase portable SMAW model for industry and household application. Light weight, compact size and outstanding robust design make it more convenient to carry around.DuraARC performs powerful stable DC arc and can continuously welding 4mm electrode without stop. DuraARC is designed to Generator-compatible and it performs full power against voltage fluctuation.


Output t34.png  t33.png  t17.jpg       Input one phase.png  t41.png       Process t21.jpg




Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • Streamline design: fashionable, beautiful, and upscale

  • Robust performance: 200A output current, high duty cycle, long-time welding with 4mm electrode

  • Multiple protections: over-voltage protection, under-voltage protection, over-heat protection, fan fault protection, over-current protection



DuraARC200
Rated input voltage/frequency (V/Hz)1 phase, AC230V±10%, 50 /60Hz
Rated input capacity (KVA)8.6
Rated input current (A)39
Duty cycle (40℃)35%@200A
OCV (V) 59
Output current range (A)10-200
Efficiency>80%
Protection classIP23S
Insulation classF
Dimension (mm)381*155*298
Weight (kg/lb)7.3 /16.1




Standard Equipments:

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Welding cable L=3m (optional)

  • 1 Ground cable L=3m (optional)



DuraARC200.pdf
