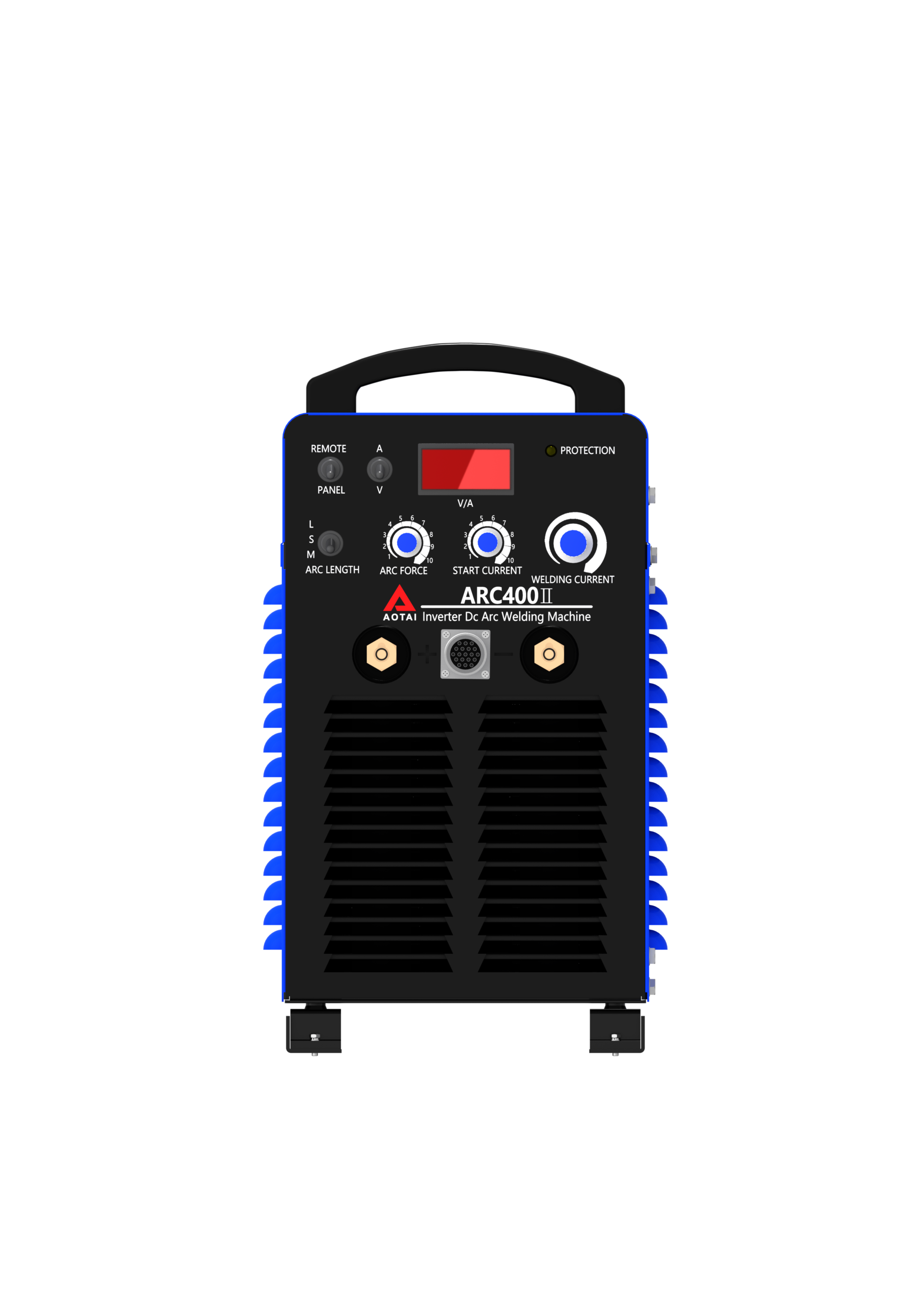

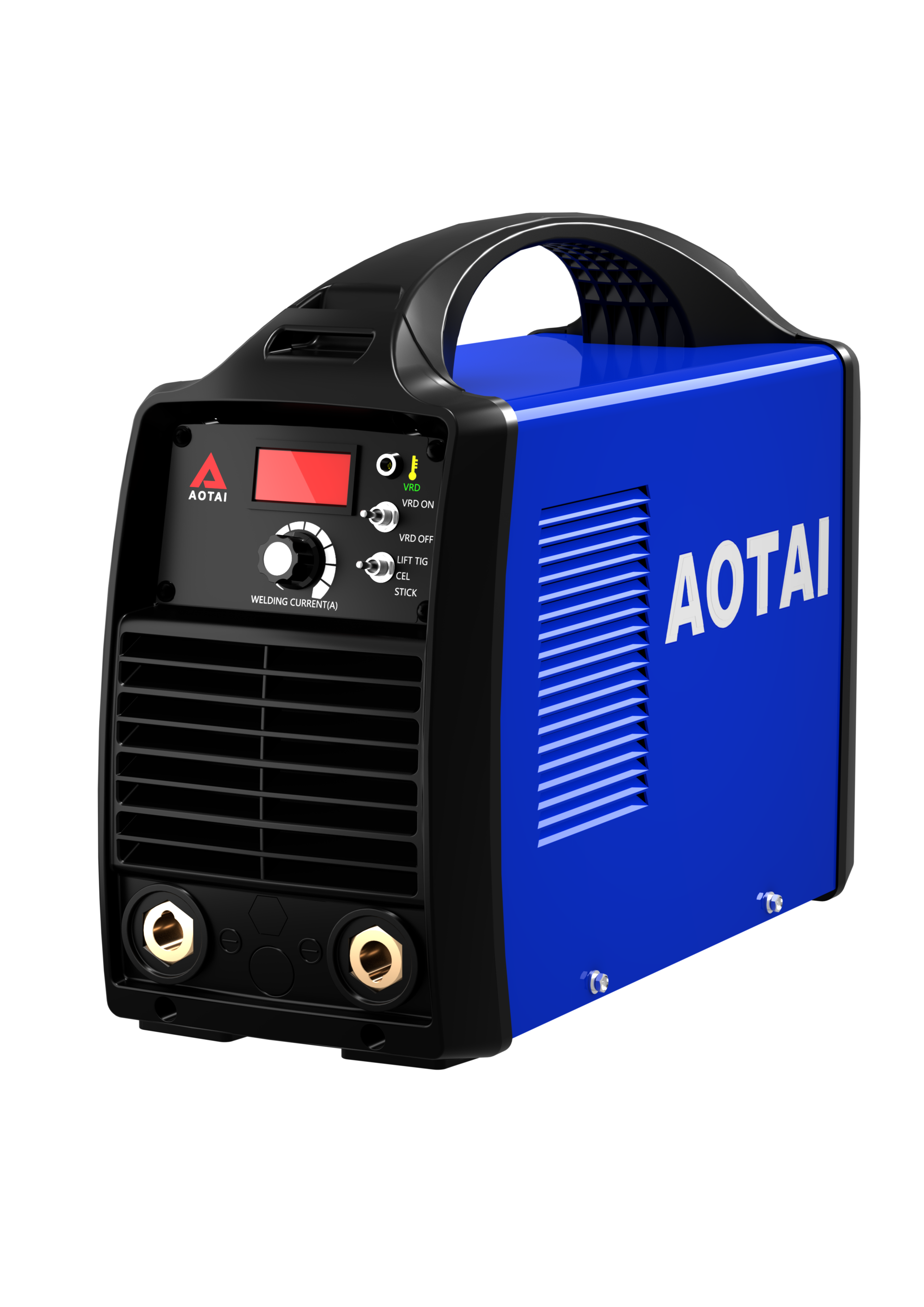

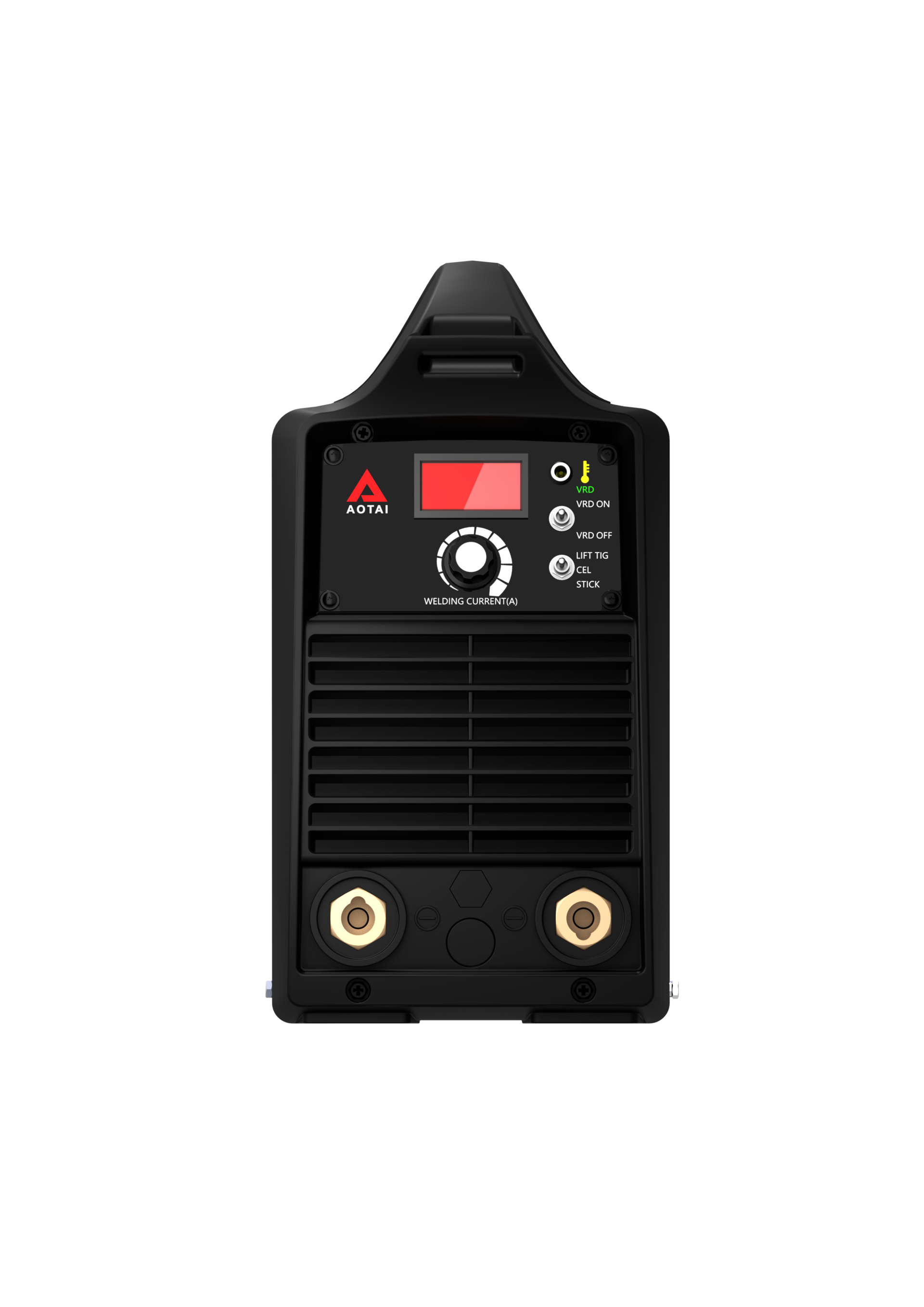

ARC-400II/DuraARC200II

ARC ll series is specially designed for MMA welding with Cellulose Electrodes (CEL).This series is suitable for working under extremely harsh industry field, special inner structure with optimum dust /water protection to ensure ARC ll robust design with unconditional usage for optimum welding results.


Output t34.png  t33.png  t17.jpg       Input t39.png  t41.png       Process t21.jpg  微信图片_20220317104025.png




Share：

Inquiry
Features
Specification

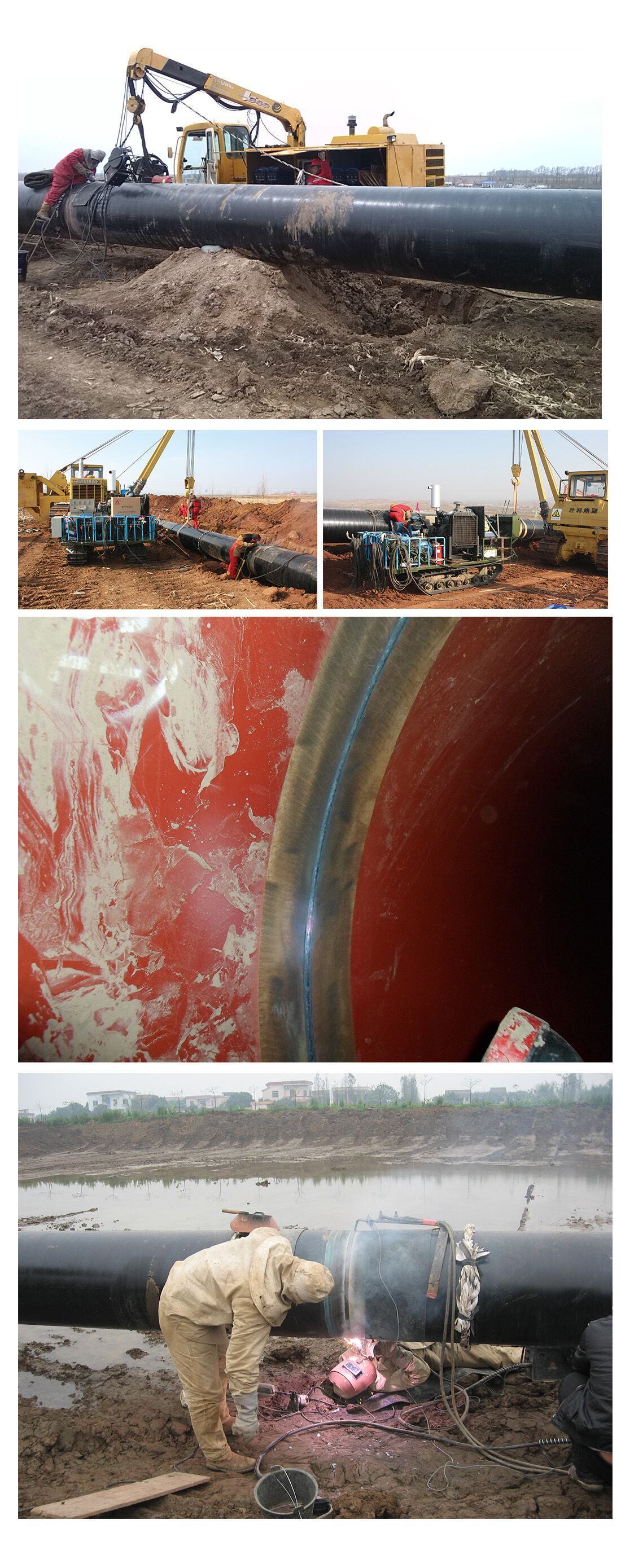

Application
Accessories
Download


  • Hot start: 100% arc ignition success rate

  • Wire remote control: optional for ARC400II

  • Long-distance welding: up to 100m

  • Adjustable arc force: great performance of all-position welding

  • Full power input: stable arc during long-cable welding and voltage fluctuating

  • Extra arc force: deep penetration and perfect vertical down-welding of cellulose electrodes (CEL)

  • Work with generator

  • Lift TIG process: for DuraARC200II



ARC400IIDuraARC200II
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz1 phase, AC230V±10%, 50/60Hz
Rated input capacity (KVA)18.49
Rated input current (A)2839
Duty cycle (40̊C)60%@400A35%@200A
OCV (V)8482 ((VRD OFF) /13 (VRD ON)
Output current range (A)20-40010-200
Efficiency89%>80%
Protection classIP21SIP23S
Insulation classHF
Dimension (mm)594*307*578381*155*298
Weight (kg/lb)43 /957.3/16.1



Standard Equipments(ARC-400II)

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Welding cable L=3m

  • 1 Ground cable L=3m



Standard Equipments(DuraARC200II)

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 2 Quick plugs
