SMAW

‹

ARC400E

›

‹

  • ARC400E
  • ARC400E

›

ARC400E

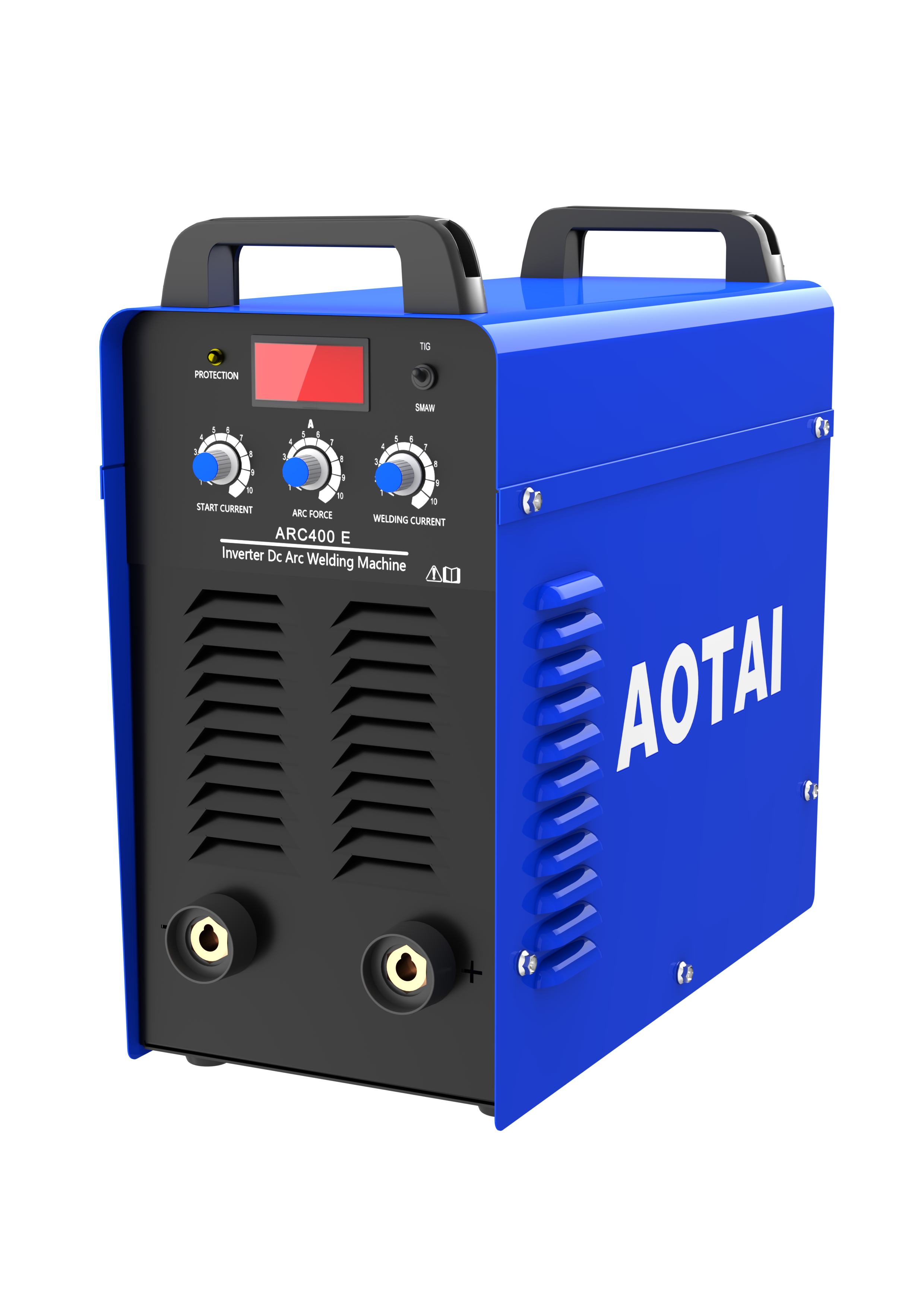

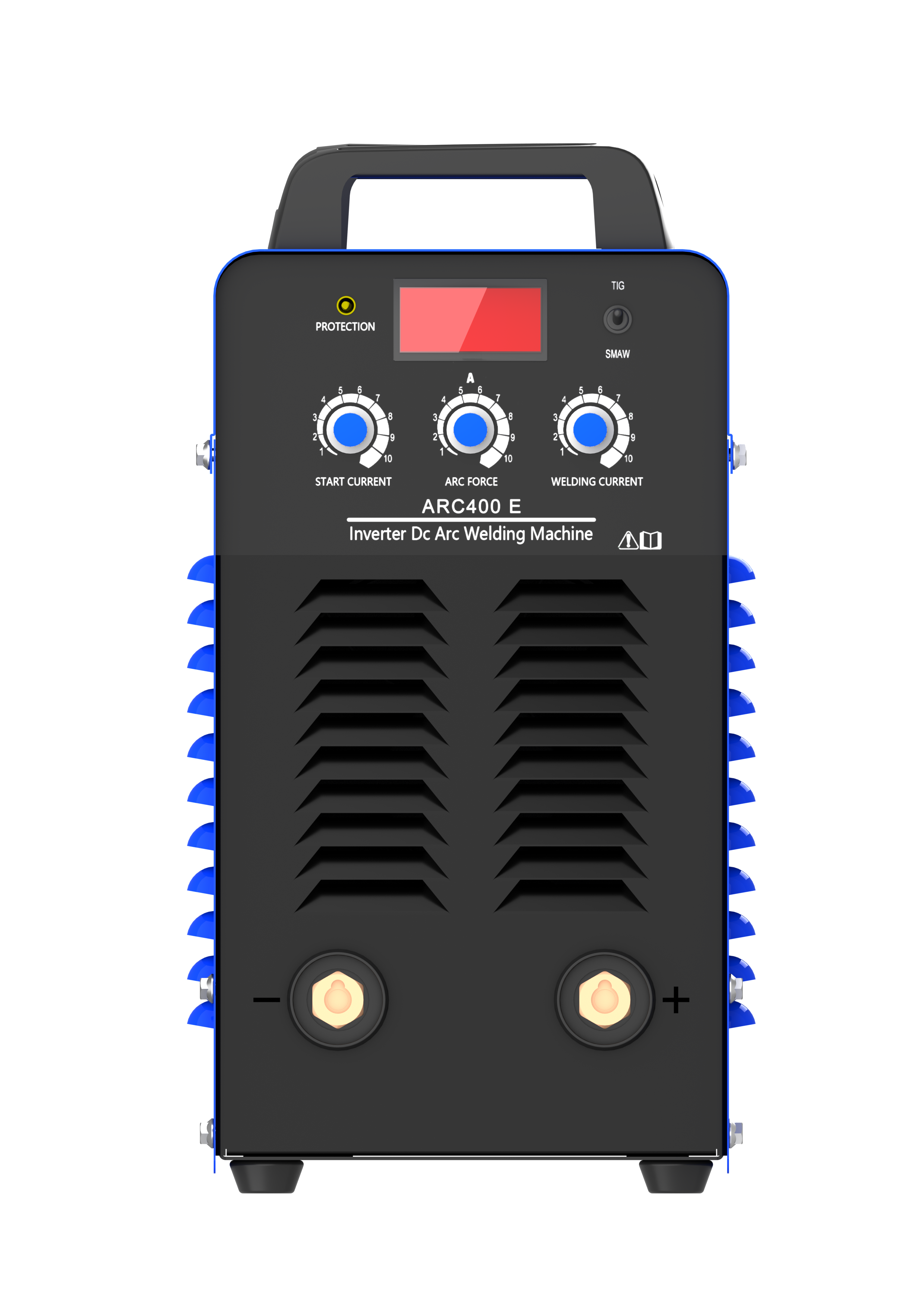

ARC400E welding machine is an inverter energy-saving welding equipment with small size and light weight, which can offer great assistance in outdoor  construction, installation and building, and other industries.


Output ARC400E  ARC400E  ARC400E       Input ARC400E  ARC400E       Process ARC400E


                                                                                                                 ARC400E


Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • Easy arc striking: adjustable arc striking current, ensuring 100% arc striking success rate

  • Anti-stick and unbroken arc: adjustable arc force, ensuring quick metal transfer

  • Wide adjustment range of welding current

  • Easy operation: intuitive digital display of current, extremely simple operation design

  • Portable design, easy to transport: lighter than 30kg

  • Multiple protection: Over-current, over-voltage and overheating protections ensure safe operation of welding machine

  • Generator-compatible



ARC400E
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)18
Rated input current (A)28
Duty cycle (40̊C)60%@400A
OCV (V)67
Output current range (A)20-400
Efficiency89%
Protection classIP21S
Insulation classH
Dimension (mm)500*230*500
Weight (kg/lb)29/63.9


ARC400E


Standard Equipments

  •  1 Power source

  •  1 Connected primary cable L=3m

  •  1 Welding cable L=3m (optional)

  •  1 Ground cable L=3m (optional)





ARC400E

ARC400E.pdf
