TANDEM-1000/1250/1600


Output t36.png t37.png t17.jpg t75.png       Input t39.png  t41.png


Process t23.jpg  t21.jpg  t60.png                                   t11.jpg  t15.jpg


Share:

Inquiry
Features
Specification
Application
Accessories
Download


  • High speed and high efficiency: the welding speed and efficiency are over two times those of single-wire SAW

  • Flexible modes: the anterior DC wire can work with the posterior AC wire simultaneously or work separately

  • Flexible mounting of tractor head: can be mounted on the  auxiliary machines, such as gantry, manipulator, and so on

  • Wide applicable range: for the wire diameter over 3mm, and suitable for DC welding, AC welding, and TANDEM welding

  • With more adjustable parameters: to ensure the welding penetration and width and improve welding quality

  • Multiple configurations: the type matching with automation equipment, tractor type

  • Multiple configurations according different currents:  AC(1000 /1250) /AC(1000 /1250), AC(1000 /1250) /DC(1000 /1250 /1600)



TANDEM1000TANDEM1250TANDEM1600

ASAW1000IIASAW1000ACDCASAW1250IIASAW1250ACDCASAW1600IIASAW1250ACDC
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)55x269688868
Rated input current (A)83x2105103130103
Duty cycle (40℃)100%@1000A100%@1000A100%@1250A100%@1250A100%@1600A100%@1250A
OCV (V)899092929292
Adjustable current range (A)60-100050-101060-125050-126060-160050-1260
Adjustable voltage range (V)20-50
Wire size (mm)3.0-6.0
Protection classIP21S
Insulation classH
Dimension (mm)788*366*8151040*500*720788*366*8461040*500*720788*366*8461040*500*720
Weight (kg /lb)95 /209.8165 /364.7100/220.9170/374.7130/287170/374.7

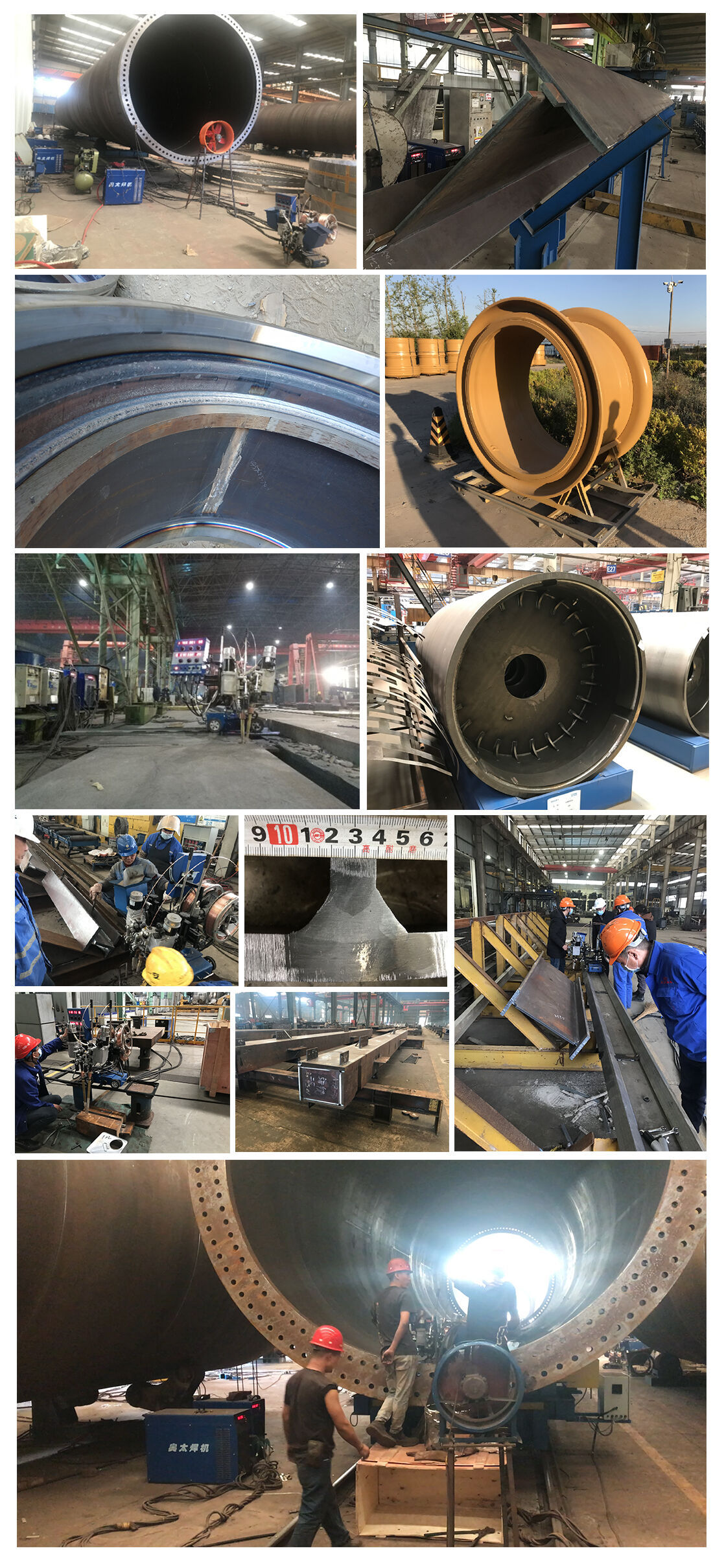

TANTERM 1000.jpg
