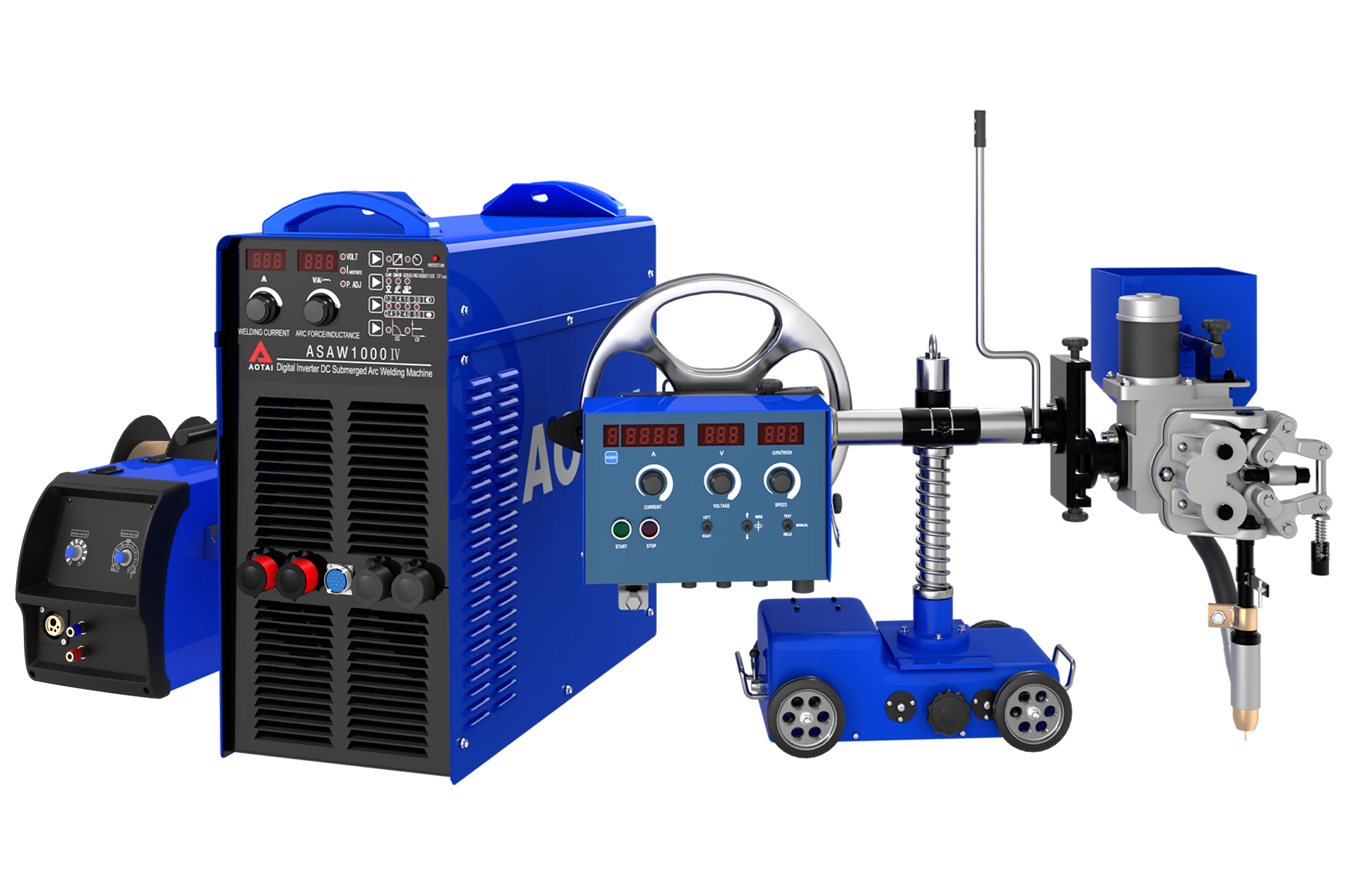

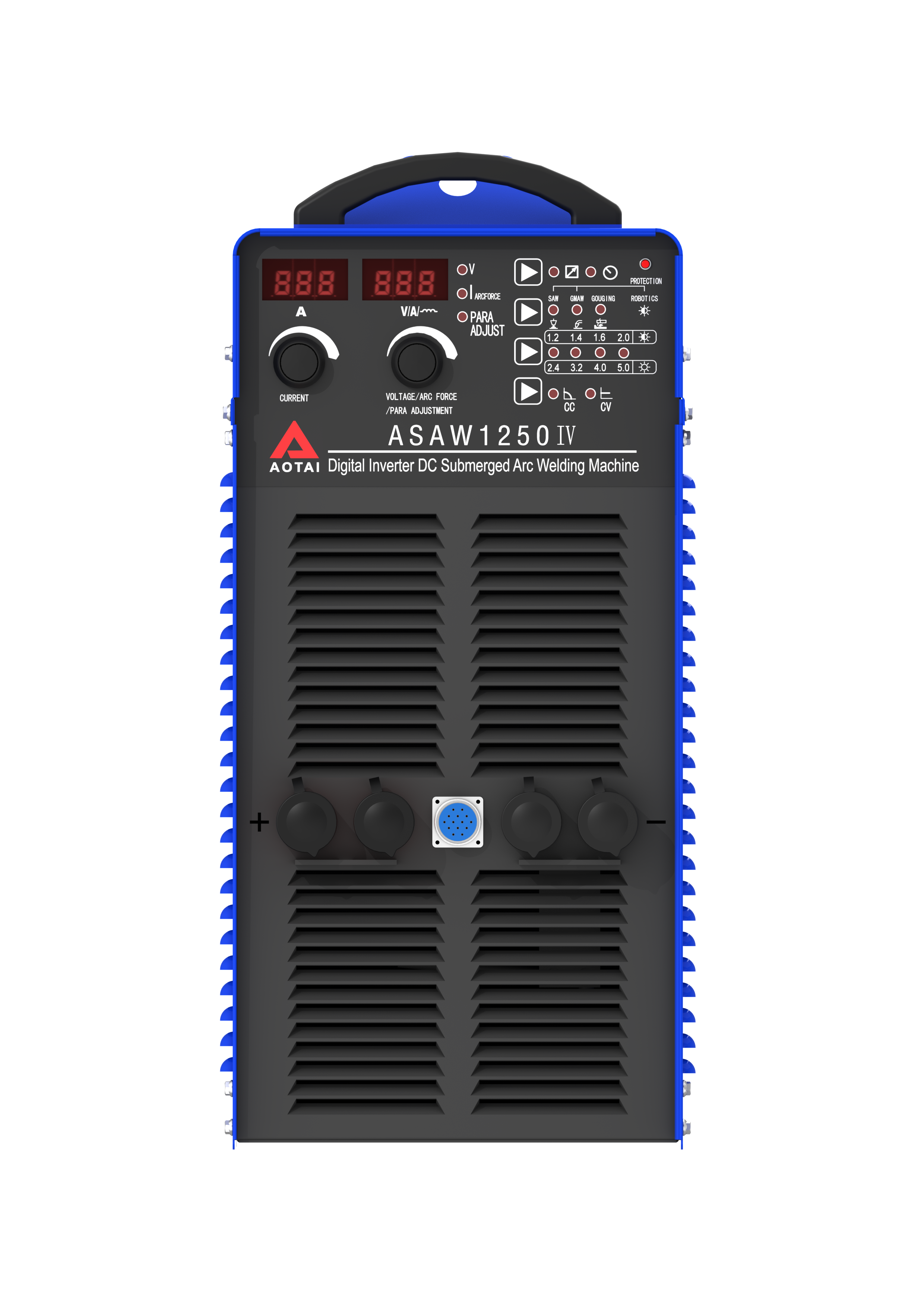

ASAW-1000/1250IV

ASAW1000 IV is used in pipeline prefabrication, cladding, working with robot and automation equipment, high-power gas shielded welding, repairing wear resistant material and other industries, It enjoys great popularity for it’s comprehensive functions and multi-purpose performance.


Output t36.png t33.png t17.jpg       Input t39.png  t41.png


Process t23.jpg t26.jpg t21.jpg t60.png


Materials t45.png t46.png                              t11.jpg  t15.jpg


Share:

Inquiry
Features
Specification
Application
Accessories
Download
  • Multi-process welding machine: SAW, GMAW, Gouging  and SMAW

  • Equipping CC and CV characteristics makes it suitable for  several kinds of applications

  • Plenty choices for configuration; supporting many kinds of

  • SAW processes: thick wire, thin wire, strip cladding,  twin-wire single arc, visible arc flux-cored wire and other  welding

  • Supporting several kinds of GMAW process: single wire  and twin-wire single arc of solid wire welding, FCAW and so on

  • Equipping digital or analog interface and supporting  extension of robot interfaces achieve robotic SAW and robotic GMAW processes

  • Equipping digital or analog interface enables matching with PLC and others to form welding automation system

  • Enjoying great application in pipeline, steel fabrication, wear-resisting layer cladding and other industries

Technical Specification


ASAW1000 IVASAW1250 IV
Rated input voltage/frequency (V/Hz)3 phase, 380V±10%, 50 /60Hz
Rated input capacity (KVA)5569
Rated input current (A)83105
Duty cycle (40℃)100%@1000A100%@1250A
OCV (V)8492
Adjustable current range (A)60-100060-1250
Adjustable voltage range (V)14-5022-44
Wire size (mm)1.2-6.0/3.0-5.01.2-1.6/3.0-6.0
Protection classIP21SIP21S
Insulation classHH
Dimension (mm)788*366*815788*366*846
Weight (kg /lb)95 /209.8100/220.9

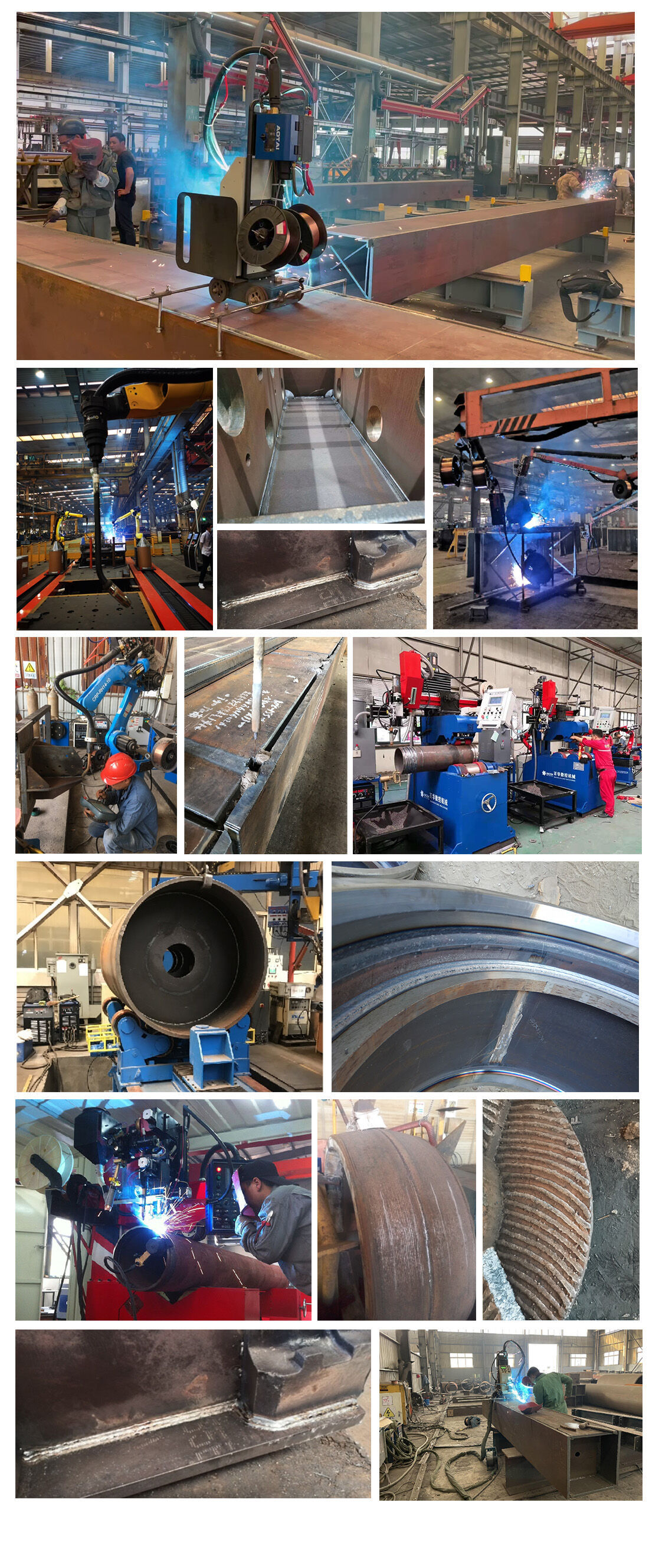

ASAW 1000 IV.jpg


Standard Equipments

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 2 Ground cable L=5m

  • 2 Welding cable L=15m

  • 1 Control cable L=16m

  • 1 Tractor
