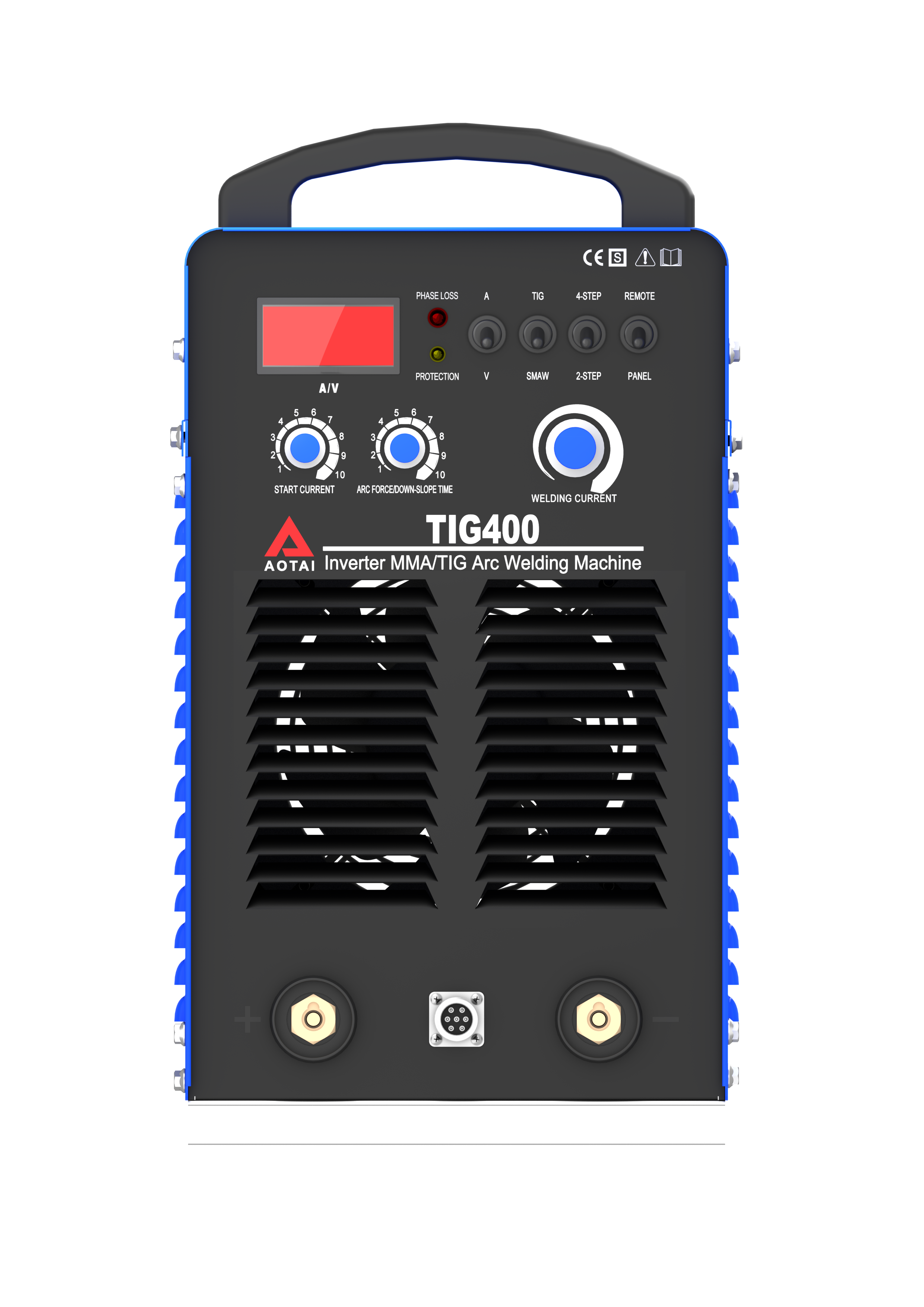

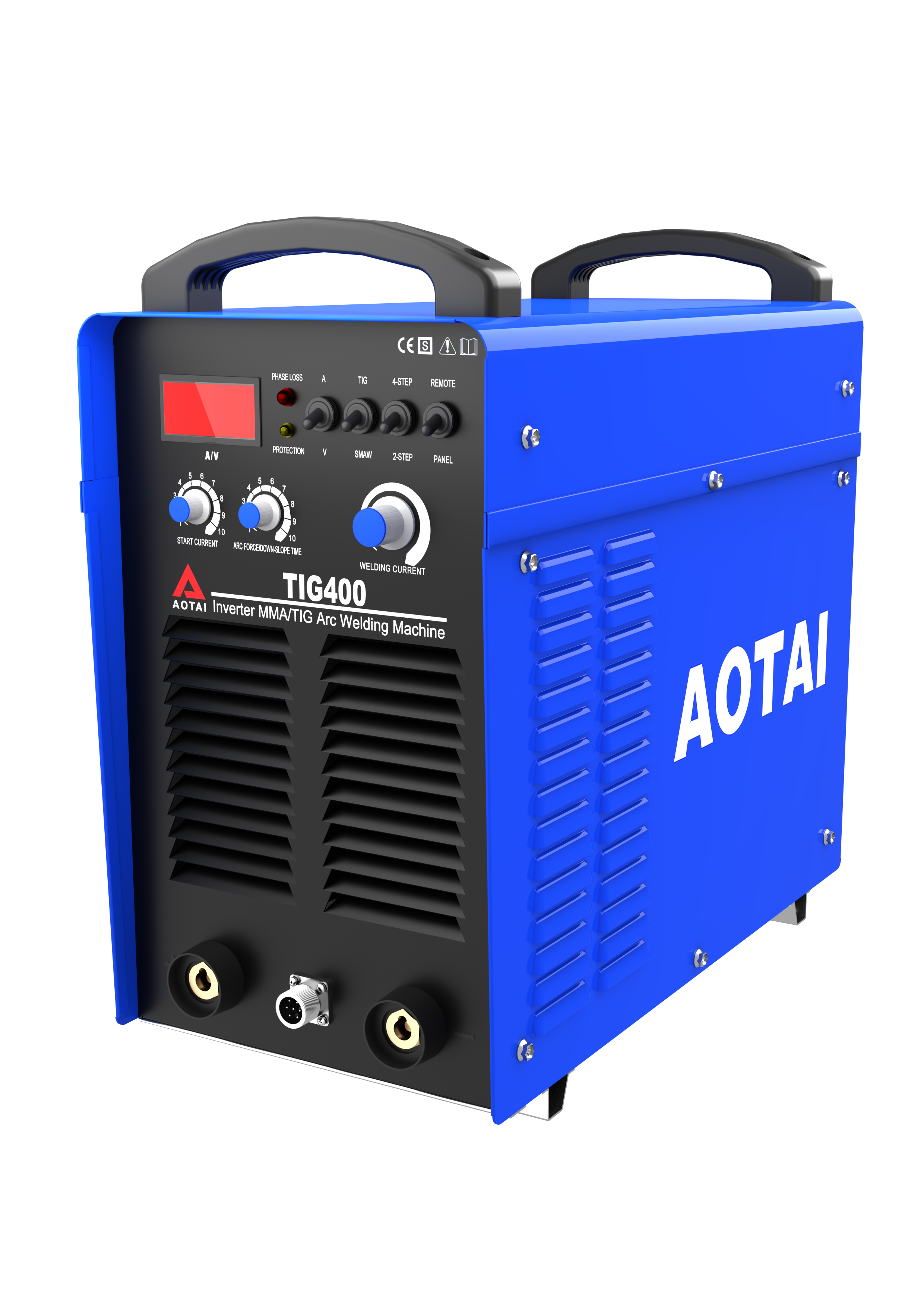

TIG-400/500/630

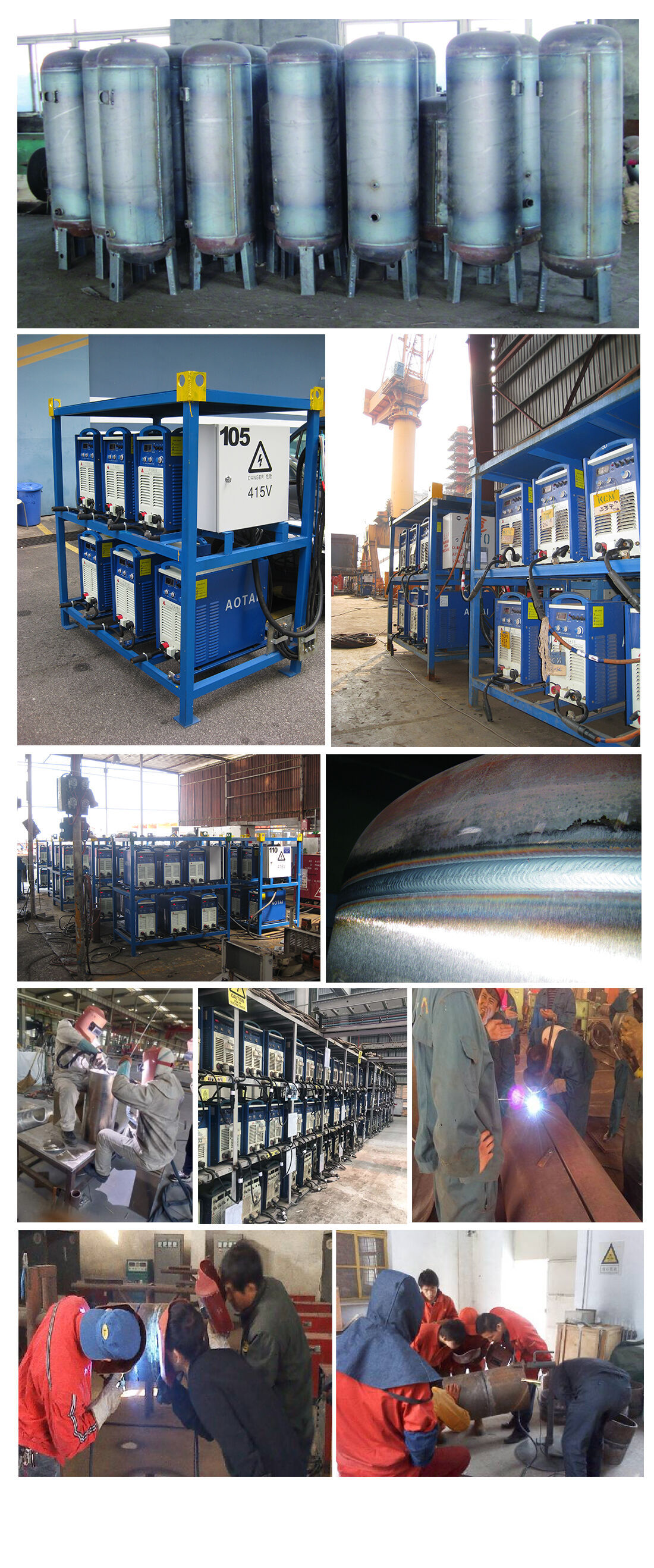

TIG series features analog DC TIG welding machines built on soft-switch inverter technology, specifically engineered for harsh industrial environments. With a user-friendly interface and a stable arc, it ensures reliable and efficient manual welding.Designed for high-performance DC TIG and MMA welding, the TIG Series is ideal for alloy fabrication, pipe welding, and workshop maintenance.


Output TIG-400/500/630 TIG-400/500/630 TIG-400/500/630       Input TIG-400/500/630  TIG-400/500/630       Process TIG-400/500/630  TIG-400/500/630


Materials TIG-400/500/630 TIG-400/500/630 TIG-400/500/630                                               TIG-400/500/630


Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • Fully adjustable parameters: Arc force, hot start, and down-slope time for precise weld control

  • Generator compatible: Optional support for operation with generators, ideal for field work

  • Remote control ready: Supports both wired and wireless remote controllers

  • Dual arc start methods: HF and scratch TIG with up to 100% arc ignition success rate

  • Digital display: Clear, intuitive parameter visualization

  • Flexible trigger modes: 2-step and 4-step operation to suit different welding scenarios



TIG400TIG500TIG630
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)18.724.634.2
Rated input current (A)28.437.452
Duty cycle (40℃)60%@400A60%@500A
100%@630A
OCV (V)7184
95
Output current (A)20-40020-500
50-630
Arc ignition methodHF /Contact
Trigger mode2/4T
Efficiency89%
Protection classIP21S
Insulation classH
Dimension (mm)600*300*570660*320*570690*320*580
Weight (kg /lb)43 /94.850 /110.458 /128.1



TIG-400/500/630



Standard Equipments

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Welding cable L=3m

  • 1 Ground cable L=3m

  • 1 TIG torch




TIG-400/500/630

TIG400/500/630.pdf
