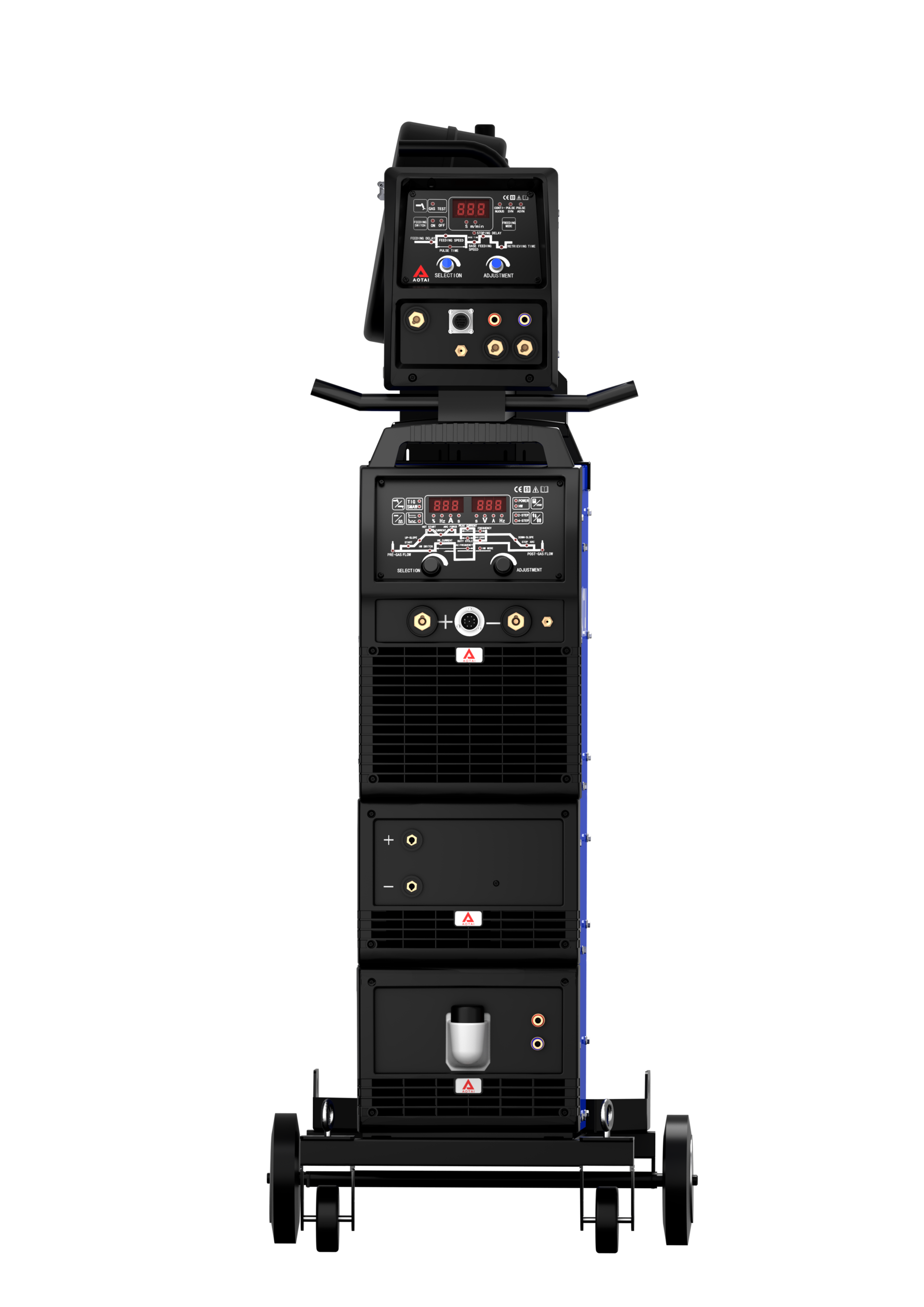

ATIG-400P(HW)/500P(HW) PLUS

ATIG-400P(HW) /500P(HW) PLUS hot wire TIG system is a TIG welding equipment with high efficiency and high quality. It is a semi-automatic or automatic TIG welding system consisting of a welding power source, hot wire power source, wire feeding mechanism and special welding torch. Compared with cold wire TIG, it enjoys one time improved welding deposition rate and the same welding speed as MIG, which makes it become the best choice for high-quality and high-speed application of carbon steel/stainless steel/titanium alloy welding.


Output t34.png t33.png 微信图片_20220317091517.jpg       Input t39.png  t41.png       Process t25.jpg


Materials t45.png t46.png t51.png t49.png                                    t11.jpg  t15.jpg


Share：

Inquiry
Features
Specification

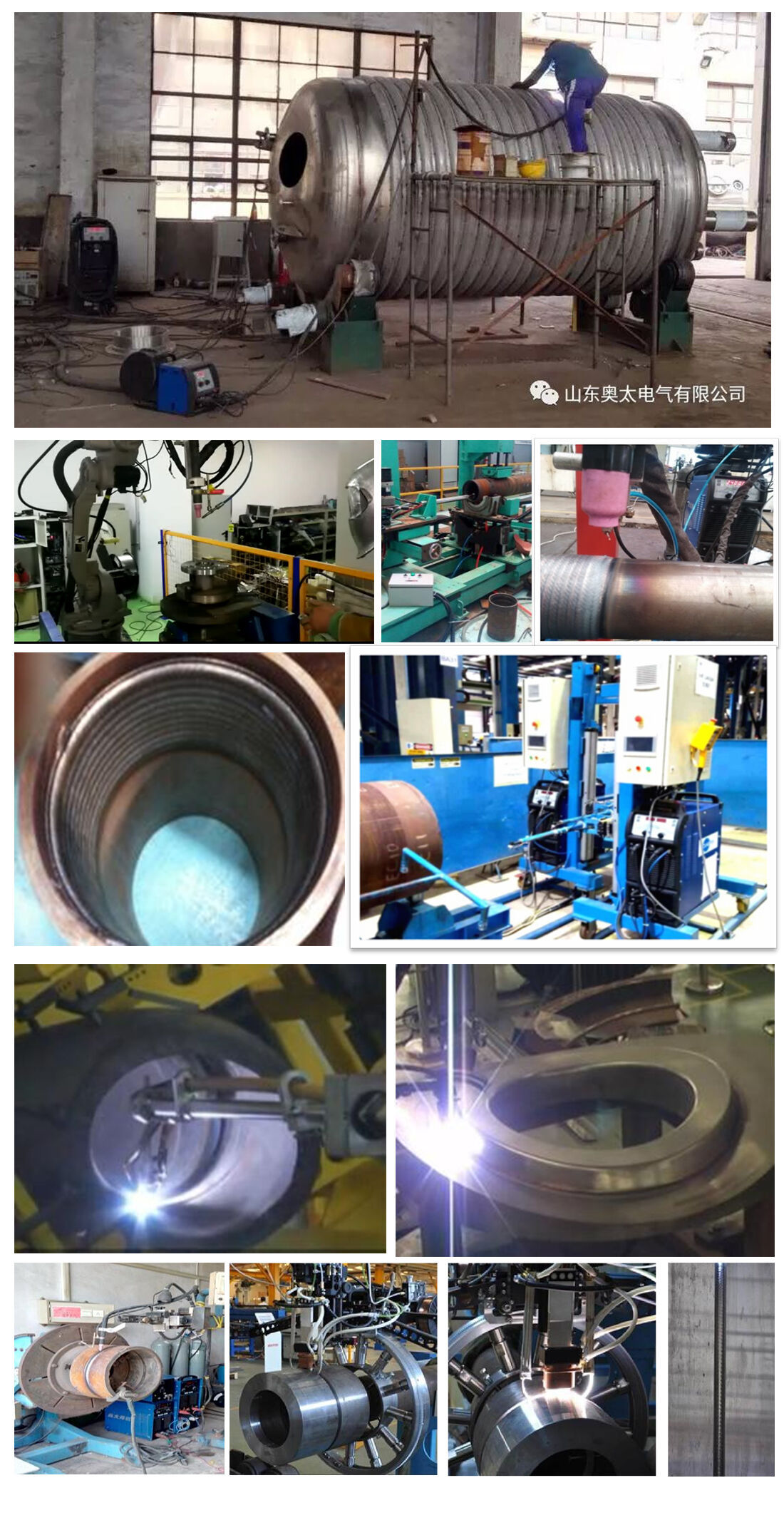

Application
Accessories
Download


  • Digital system: multi-core digital control system precisely controls welding process and realizes synchronized work of  wire feeding and welding

  • High-speed welding: AC power source heat the wire has no interference to welding arc, has a certain stirring effect to the molten pool, and improves the welding speed

  • Simple temperature control of welding wire: one key to switch hot wire and cold wire, one key to switch AC and DC

  • Perfect welding seam formation: pulse and CC welding  process realizes synchronizing wire feeding with the pulse, and forms perfect welding seam

  • Highly precised wire feeding system: 4 rolls drive, full-digital twin closed loop raster feedback wire feeding system, more precise and more stable wire feeding

  • Welding automation interface: standard analog control interface, easy to match with automatic welding equipment


Welding Power Source

ModelATIG400P(HW)ATIG500P(HW) PLUS
Rated input voltage /frequency (V/Hz)

3 phase, AC380V±10%, 50 /60Hz

Rated input capacity (KVA)1825
Rated input current (A)2836
Duty cycle (40℃)60%@400A100%@500A
Adjustable current range (A)5~400A5~500A
OCV (V)7379
Tungsten electrode diameter (mm)1~6
Weight (Kg/lb)55 /121.2849/108
Dimension (mm)660*320*560660*330*610
Insulation classIP23



Hot Wire Power Source

ModelHW-200
Rated input voltage /frequency (V/Hz)3 phase 380V±10% /50Hz
Rated input capacity (KVA)2.6
Rated input current (A)4
Duty cycle (%)35
Output current range (A)5~200A
OCV (V)16
Weight (Kg /lb)21 /46.31
Dimension (mm)690*330*290
Insulation classH



Water Cooler

ModelWCS-400T
Rated input voltage/frequency (V/Hz)1phase, AC380V±10%, 50/60Hz
Motor power (W)  370
Duty cycle (%)100
Max. pressure (MPa)0.3
Temperature-10~+40
Protection classIP21
Dimension (mm)690*340*290



Wire Feeder

ModelWF-400TWF-500T(CC)
Power supply voltage (V)DC24VDC48V
Wire diameter (mm)0.8~1.6
Wire feeding speed (m/min)0.3~7.00.1~15.0
Dimension (mm)650*280*390
Weight (Kg /lb)15/33.08

ATIG315 hot wore III.jpg



Standard Equipments

  • 1 Power source

  • 1 Primary cable=3m

  • 1 Hot wire power source

  • 1 Water cooler

  • 1 Wirefeeder

  • 1 Trolley

  • 1 Wirefeeder cable=10m

  • 1 Ground cable=3m

  • 1 Hot wire ground cable=3m

  • 1 TIG torch
