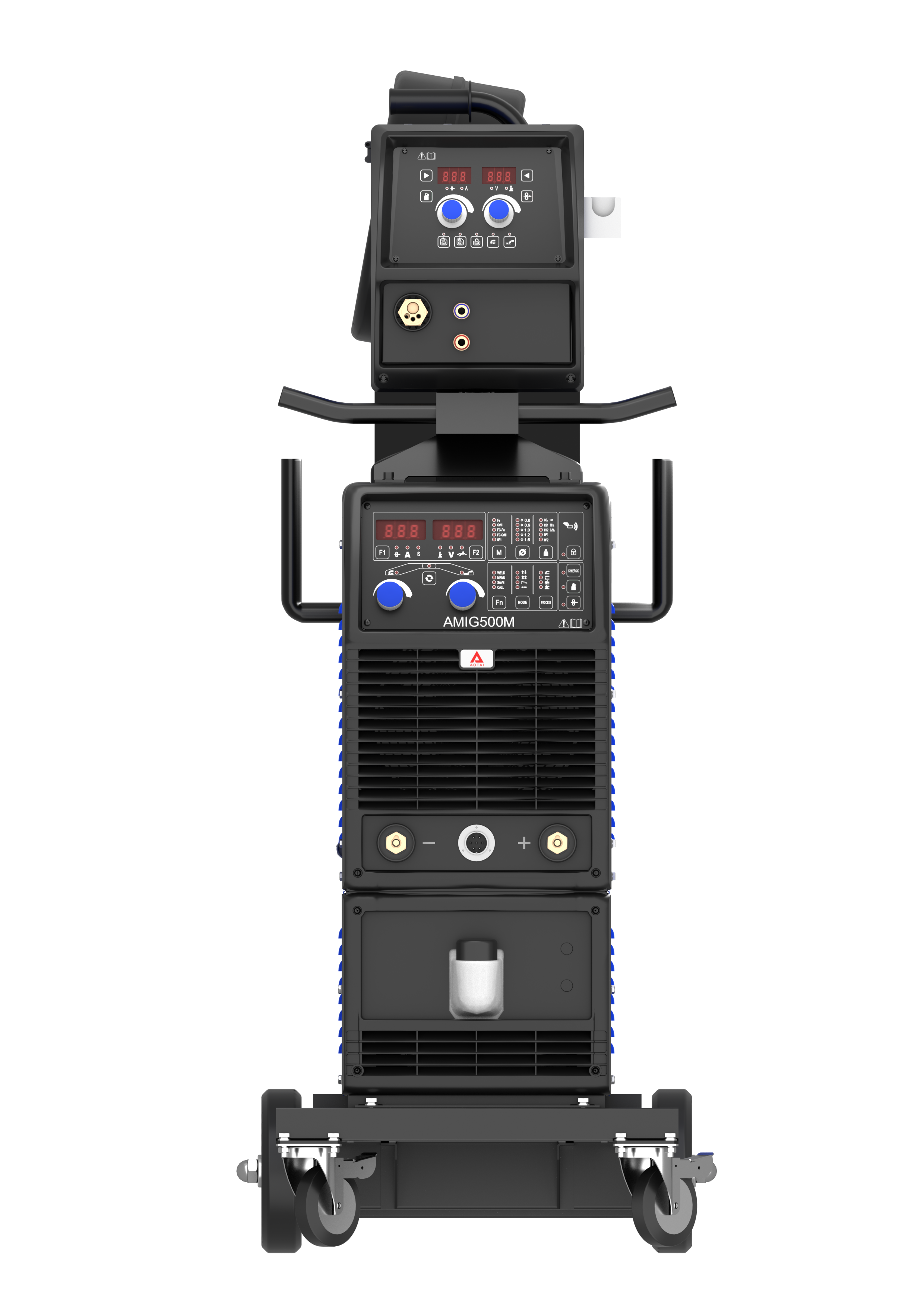

Low-cost carbon steel thick plate welding expert for deep penetration MIG process

Output t36.png t33.png 微信图片_20220317091517.jpg t10.jpg     Input t39.png  t41.png     Process  t26.jpg t25.jpg t22.jpg


  • Full digital multi-core MCU + DSP control

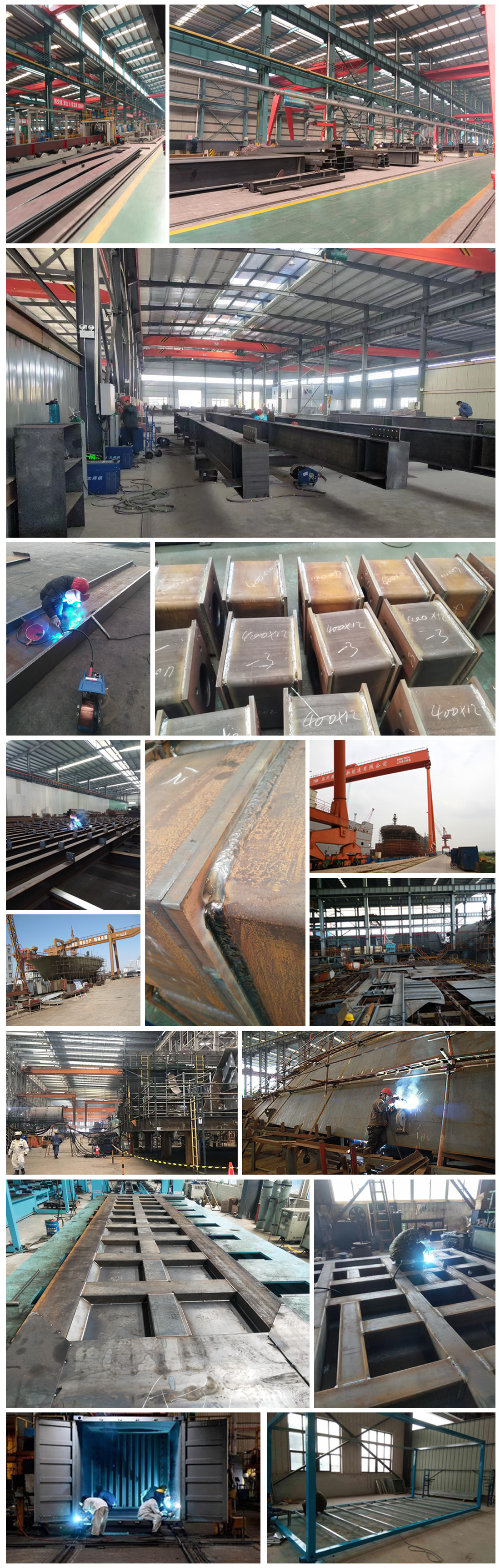

  • Deep penetration carbon steel welding process realizes full penetration welding for medium thick plate and one-time penetration welding for 12mm thick plate with no groove. It enjoys 30% deeper welding penetration than standard pulse MIG for which the welding quality is outstanding. Thick plate welding enjoys reduced groove angle and material cost. It also enjoys lower labor cost through reducing the number of welding layers and passes.

  • Built-in expert database program enables it performing carbon steel, stainless steel, aluminum and other materials welding; solid core wire and flux-cored gas shielded wire are applicable.

  • Optional wire diameter: 1.0/1.2/1.4/1.6/D 1.0/D 0.8;

  • Gas pre-flow time, gas post-flow time, burn back time, slow wire feeding speed, spot welding time, double-pulse and deep penetration parameters are adjustable

  • 2T /4T /SP-4T /spot welding operation modes

  • One-key to save and recall 100 sets of parameters intelligently

  • Intelligent fan control technology; Eco design;

  • Efficiency reaches up to 89%

  • Full-bridge inverter soft switch control technology, double IGBT modules, quick recovery diode module

  • PCB is processed with three-proofing lacquer and the drive board is processed with waterproof rubber

  • It enjoys IP23 class protection and H class insulation

  • Protection against overheat, over-current, over-voltage, output short-circuiting and the faults of wire feeder; error code display

  • Closed type wire feeder and the 15kg wire spool is applicable; 4-roller drive + encoder feedback ensure stable and robust wire feeding; digital and analog wire feeder can be selected

  • European type wire pushing welding torch, digital welding torch and push-pull welding torch can be selected

  • 3-phase power supply; optional generator powering

Rated input voltage/frequency (Hz)3 phase, 380V±10%, 50 /60Hz
Rated input capacity (KVA)2434
Rated input current (A)3851
Duty cycle (40̊C)100%@500A100%@630A
OCV (V)10698
Adjustable current range (A)60-50060-630
Adjustable voltage range (V)17-3917-44
Trigger mode2 /4T, Spot, Special 4T /Special 2T
Wire size (mm)1.0, 1.2, 1.4, 1.61.0, 1.2, 1.4, 1.6
Double pulse frequency (Hz)0.5-5
Job channels100
Protection classIP23
Dimension (mm)655*324*546655*324*546
Weight (kg /lb)55 /12165 /143



Standard Equipments

1 Power source

1 Connected primary cable L=3m

1 Water cooling machine

1 Ground cable L=3m

1 Water-cooled (or Gas-cooled) torch L=3m

1 Wire feeder with Europe connection

1 Trolley
