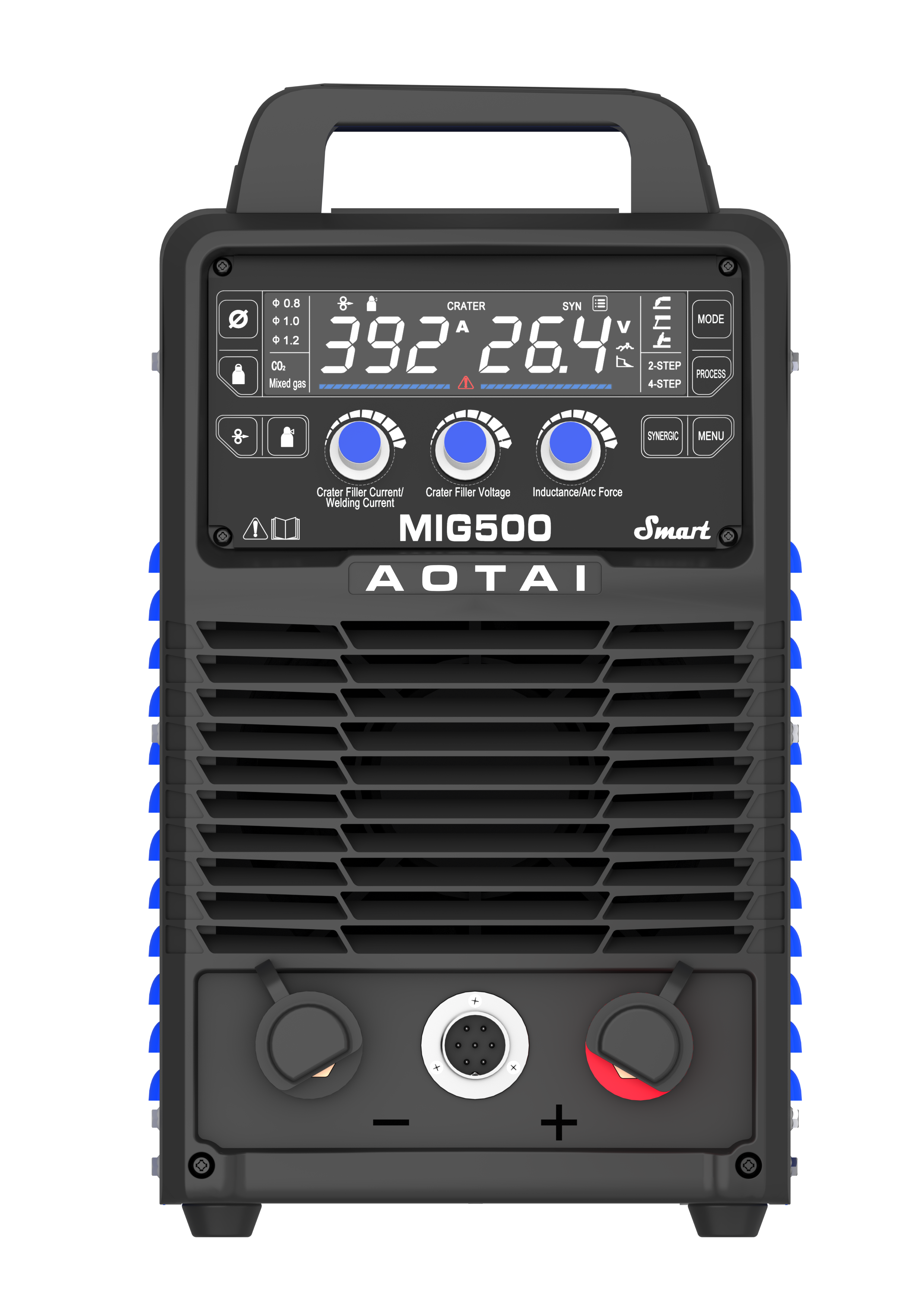

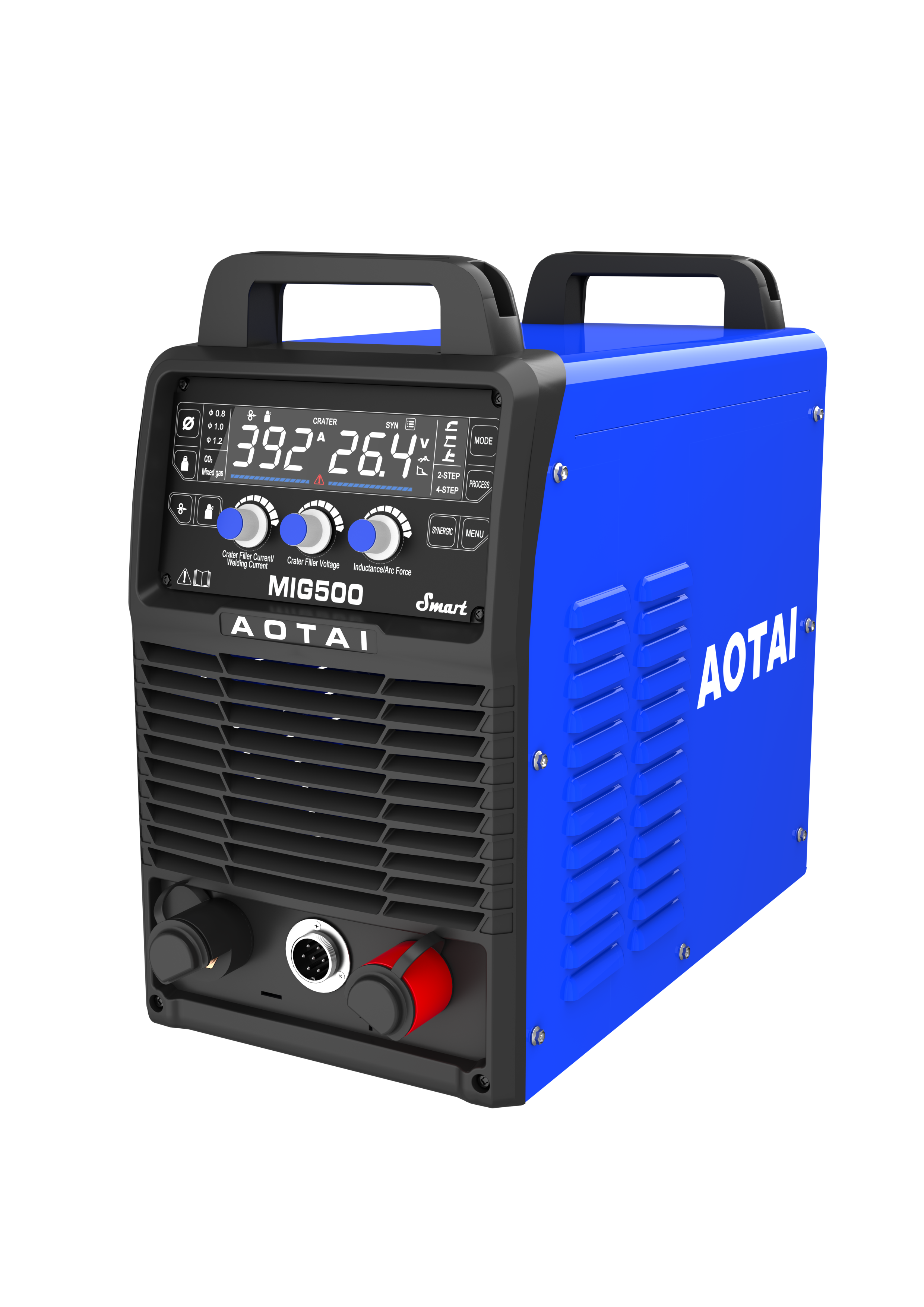

Smart MIG-350/500

Smart MIG series uses a fully digital system for consistent welding control and process data. Validated in industrial tests, it ensures reliability and stability, with future upgrades delivered via software for long-term scalability.


Output t36.png t33.png t12.jpg t17.jpg       Input t39.png  t41.png       Process t20.jpg


Materials t45.png t46.png                                                                   t11.jpg  t15.jpg


Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • Dual IGBT Modules: Reliable, stable, and consistent current output

  • Unified System Design: Automatically matches expert settings and indicates voltage deviations

  • High Energy Efficiency: Saves power and environmentally friendly

  • Versatile Applications: Supports gas-shielded welding, SMAW, TIG welding

  • Intuitive HMI: HD digital display for easy parameter adjustment

  • Comprehensive Process Library: All-position welding: flat, horizontal, vertical, overhead

  • Supported Wire Diameters: Ф0.8 /Ф1.0 /Ф1.2



Smart MIG350Smart MIG500
Rated input voltage/frequency (V/Hz)3 phase, 380V±10%, 50 /60Hz
Rated input capacity (KVA)1324
Rated input current (A)1936
Rated output voltage (V)31.539
Duty cycle (40℃)60%@350A60%@500A
Rated no-load voltage (V)6781
Output current range (A)40~35040~500
Output voltage range (V)14~4014~50
Power factor≥0.92
Welding wire diameter (mm)0.8, 1.0, 1.2
Wire feeding type
Push feed
Shielding gas flow rate (L/min)15~25
Torch cooling methodAir-cooled
Protection classIP21S
Insulation classH
Overall dimension (mm)545*273*482
Net weight (kg /lb)26 /57.327 /59.5




Standard Equipments

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m

  • 1 Gas-cooled torch L=3m

  • 1 Wire feeder

  • 1 Wire feeder cable L=5m
