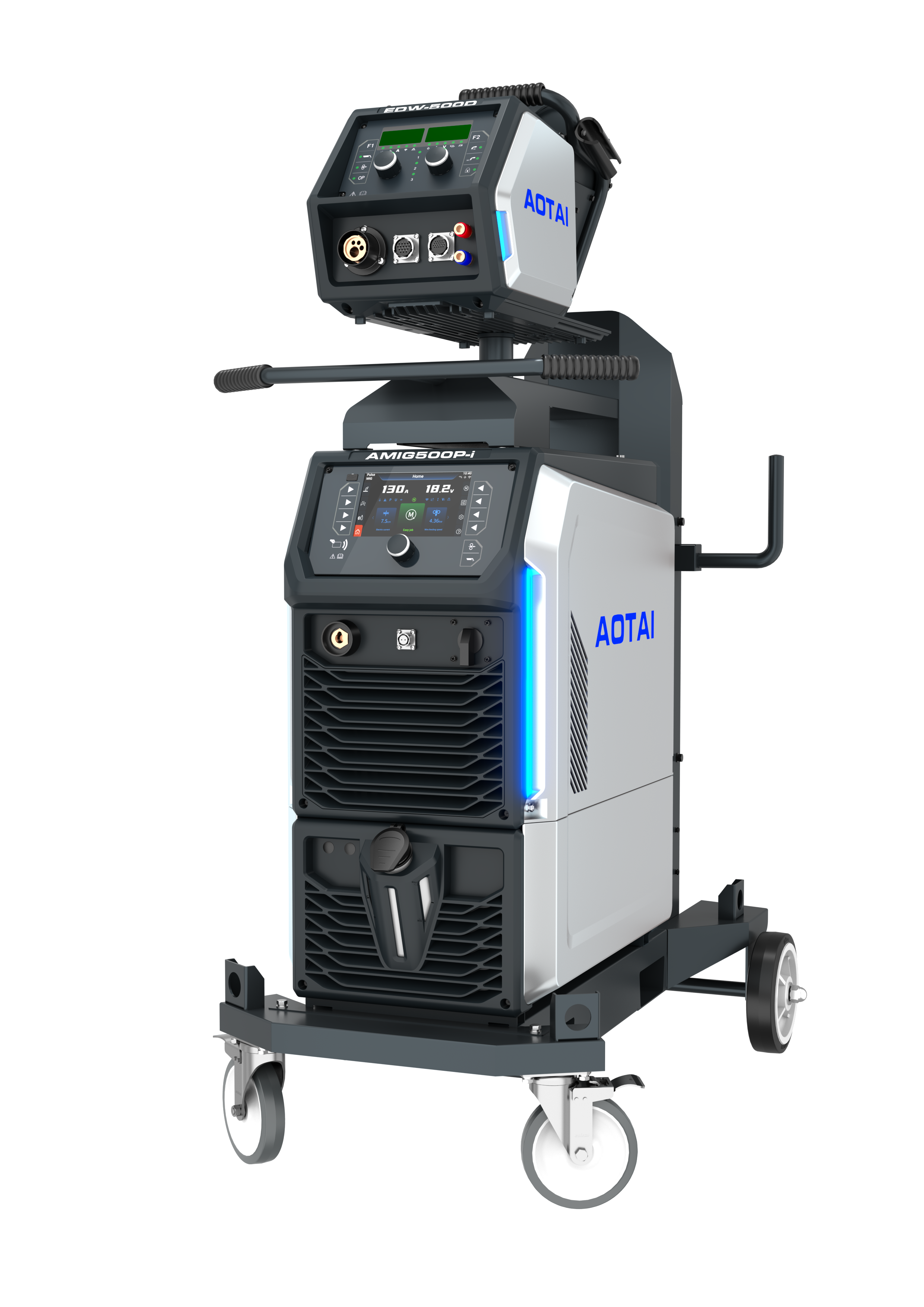

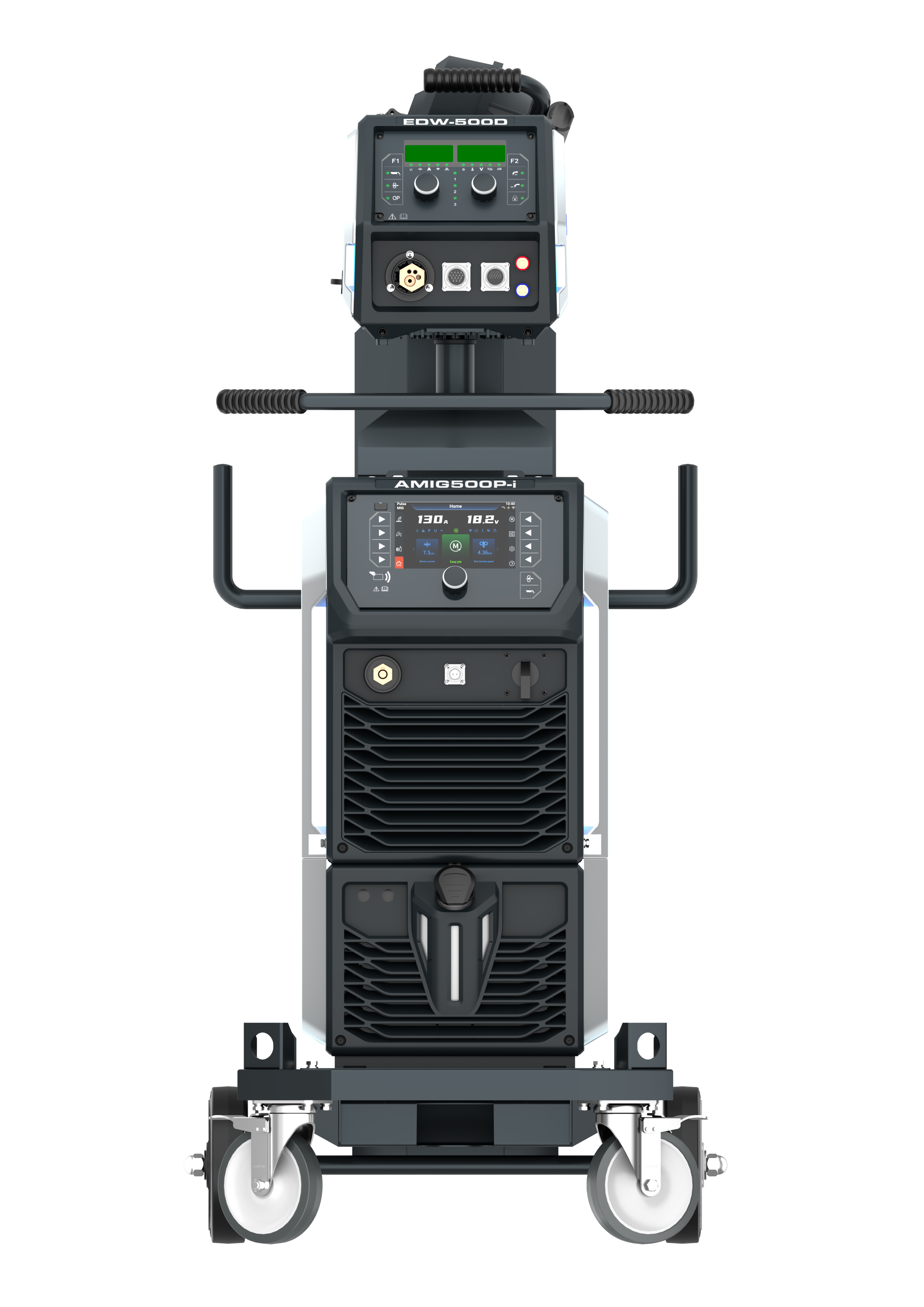

AMIG500P-i

AMIG500P-i delivers a next-generation platform with an open, programmable system. Tailored to your materials and welding conditions, it optimizes every weld for higher quality and lower costs.


Output AMIG500P-i AMIG500P-i AMIG500P-i AMIG500P-i AMIG500P-i AMIG500P-i AMIG500P-i AMIG500P-i       Input AMIG500P-i  AMIG500P-i


Process AMIG500P-i


Materials AMIG500P-i AMIG500P-i AMIG500P-i AMIG500P-i AMIG500P-i                                     AMIG500P-i  AMIG500P-i


Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • Display Function: 10" LCD screen, All parameters fully visual-ized, replacing traditional numeric displays

  • 60 kHz Inverter: Precise droplet control, strong arc

  • Stable Arc: Works with up to 45m cables, steady at low current

  • Accurate Current: Wide gas range, consistent performance

  • Easy Start: Multiple modes, high success

  • Advanced Processes: Pulse, Double pulse, Fast pulse, Deep penetration, Mixer pulse, MIG /MAG, and Custom options

  • Aluminum Welding: Strong oxide breaking, clean seams

  • Dual-Core Control: Fast 32-bit ARM processors

  • Stable Feeding: Dual-loop system with torque motor

  • One-Key Operation: Save/recall 100 sets, IC card option

  • Supports card access and group control, with all-in-one connectivity via 4G/5G, Ethernet, and Wi-Fi




AMIG500P-i
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10％, 50/60Hz
Rated input capacity (KVA)25
Rated input current (A)38
Duty cycle (40℃)100%@500A
OCV (V)76
Output current & voltage range (A/V)30A /15.5V~500A /39V
Welding wire diameter (mm)Ф0.8,Ф1.0,Ф1.2,Ф1.4,Ф1.6
Wire feeding typePush
Protection classIP23
EMC emission classA
Insulation classH
Dimension (mm )660*320*560
Weight (Kg/lb)55 /121.3




Standard Equipments:

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Water cooling machine

  • 1 Ground cable L=3m

  • 1 Water-cooled (or Gas-cooled) torch L=3m

  • 1 Wire feeder

  • 1 Trolley

  • 1 Wire feeder cable L=2m
