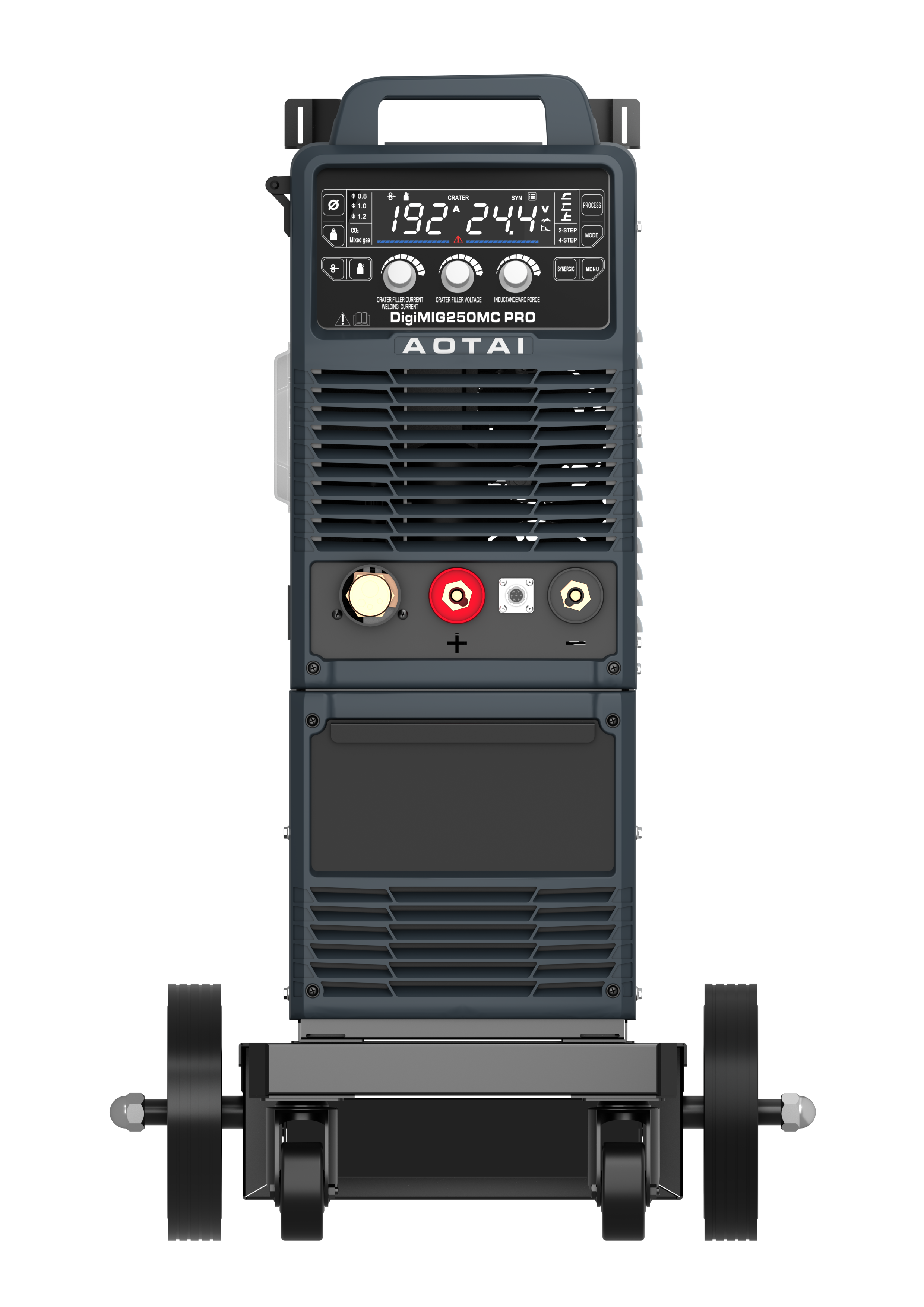

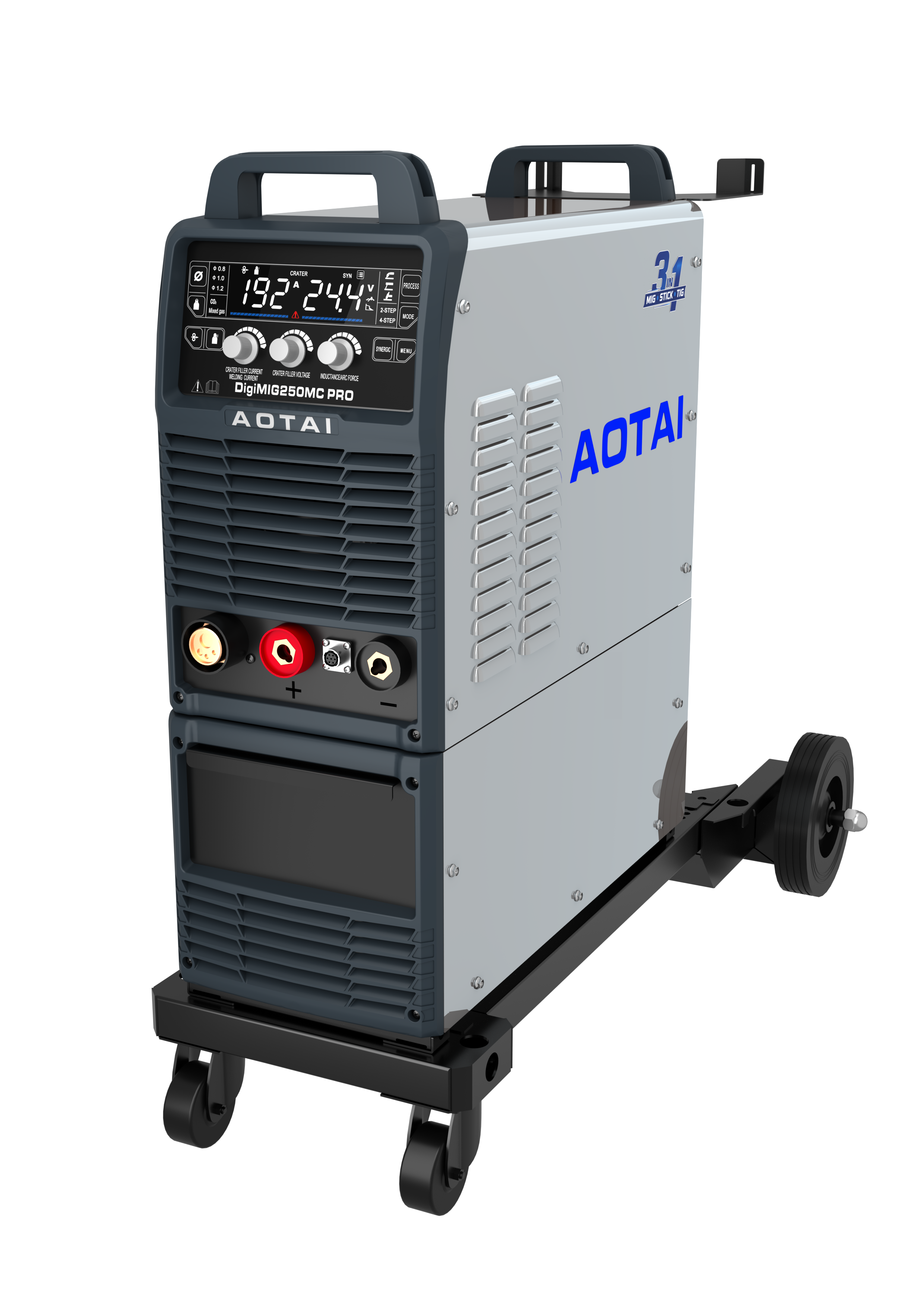

DigiMIG250MC PRO

›

‹

›

DigiMIG250MC PRO

DigiMIG250MC PRO is a portable welding machine with a built-in wire feed mechanism. It's designed for light industrial use and features a lightweight, compact design, making it easy to move around while providing stable wire feeding. The DigiMIG250MC PRO supports Multi-process, capable of meeting a variety of needs.


Output DigiMIG250MC PRO DigiMIG250MC PRO DigiMIG250MC PRO        Input DigiMIG250MC PRO  DigiMIG250MC PRO       Process DigiMIG250MC PRO

Materials DigiMIG250MC PRO DigiMIG250MC PRO                                                           DigiMIG250MC PRO  DigiMIG250MC PRO


Share:

Inquiry
Features
Specification
Application
Accessories
Download


  • Integrated design of power source and wire feeder system, offering high power density in a compact and lightweight structure

  • Wire feeding system features an observation window, allowing intuitive monitoring of wire spool level and feeding status

  • High-definition digital display enhances user operation experience

  • Compatible with trolley, meeting user requirements in various scenarios

  • Optional enclosed large-capacity storage toolbox for storing accessories, tools, and other consumables

  • Multi-process: MIG /MAG /MMA /Lift TIG



DigiMIG250MC PRO
Rated input voltage /frequency (V/Hz)3 phase,AC380V±10%,50/60Hz
Rated input capacity (KVA)8.5
Rated input current (A)12.9
Duty cycle (40℃)60%@250A
OCV (M)
55
Adjustable current range (A)40-250
Adjustable voltage range (V)14-30
Trigger mode2T
Wire size (mm)0.8 /1.0
Protection classIP21S
Insulation classH
Dimension (mm)
966*536*884
Weight (kg /lb)60 /132.3



Standard Equipments

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m

  • 1 Gas-cooled torch L=3m

  • 1 Trolley (optional)

  • 1 Toolbox (optional)
