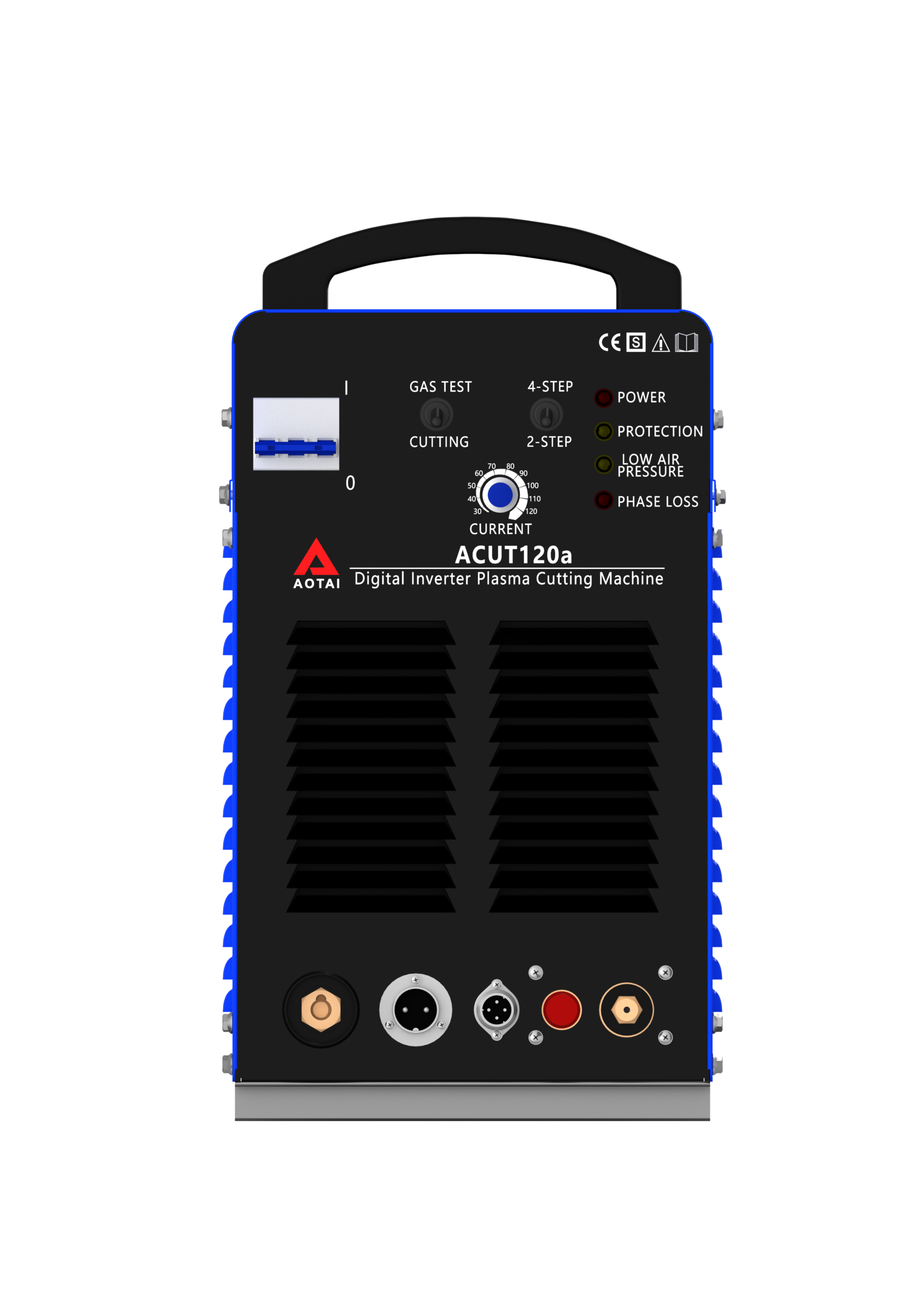

ACUT-120a

ACUT-a series is invented for professional use in heavy duty application with CNC system. ACUT-a series can be integrated with CNC system and have special non HF ignition for best arc start. ACUT-a series can show best result for cutting steel with thickness up to 15 mm.


Output t34.png t33.png t58.png       Input t39.png  t41.png       Process t27.jpg


Materials t45.png t46.png t47.png t48.png                                      t11.jpg  t15.jpg


Share：

Inquiry
Features
Specification
Application
Accessories
Download

  • Inverter technology provide a low weight power source that can  be easily maintained or carried by the welder

  • ACUT-a is air cooled power source to provide a non-stop work  with 60% duty cycle with full power

  • ACUT-a provides cutting of steel, stainless steel, copper,  aluminum and etc

  • Self-diagnostic and different protections help in work and  maintain power source

  • Post flow function gives additional cooling for plasma torch

  • ACUT-a series can be integrated with CNC system and has  special non HF ignition for best arc start

  • Smart fan feature greatly expands working life of the fan and  reduces fault rate

Technical Specification


ACUT120a
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)16.5
Rated input current (A)25
Duty cycle (40℃)60%@120A
OCV (V)340
Output current rang (A)30-120
Arc ignition methodNon-HF (low frequency)
Maximum cutting thickness (mm)35
Clean cut thickness (mm)1-15
Air pressure (Mpa)0.8
Protection classIP21S
Insulation classH
Dimension (mm)621*311*557
Weight (kg /lb)43.5 /96.1

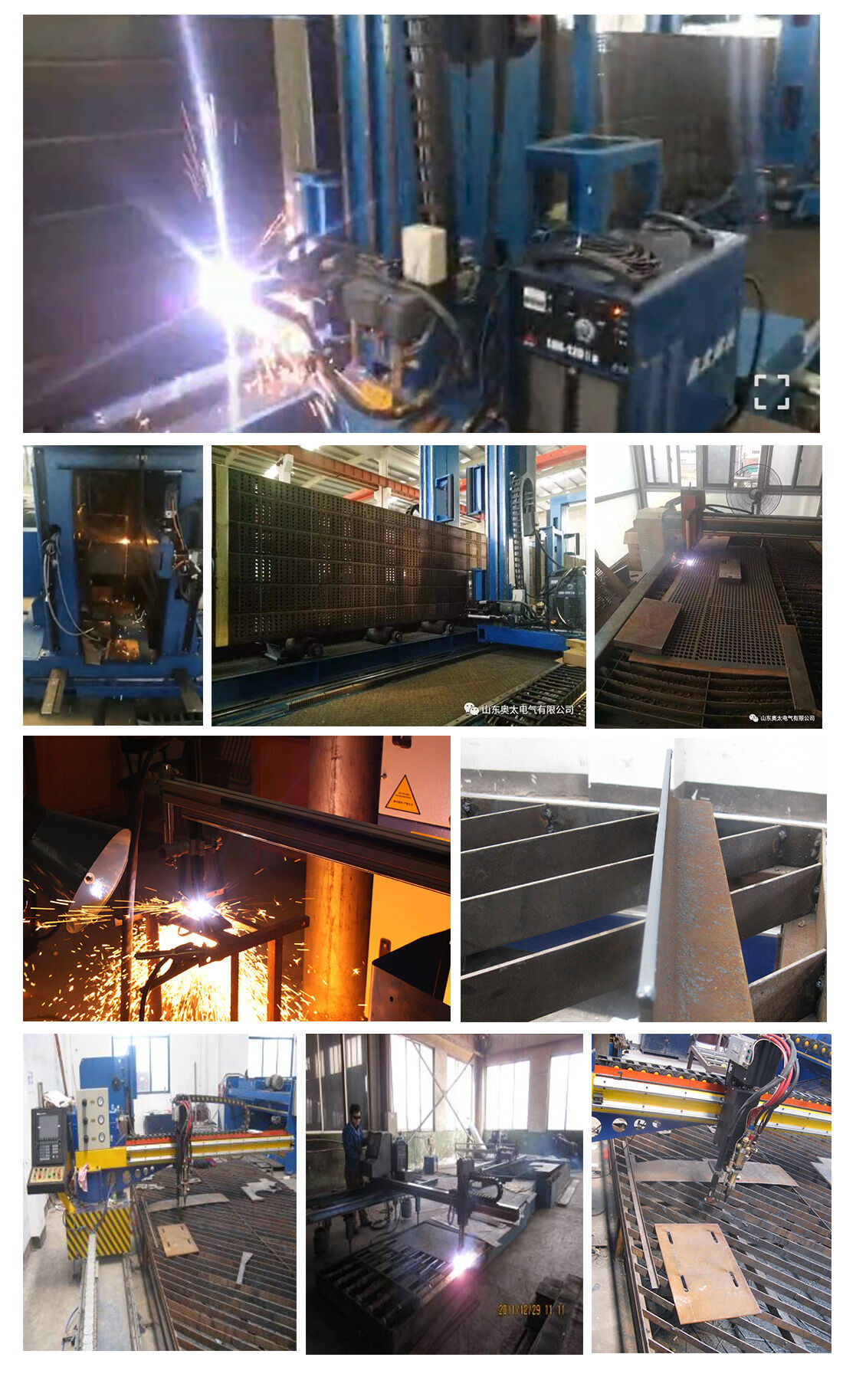

ACUT 120A.jpg


Standard Equipments

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m with clamp and quick plug

  • 1 Pressure-reducing valve

  • 1 Plasma torch
