CUTTER

‹

›

‹

  • ACUT-160/200
  • ACUT-160/200

›

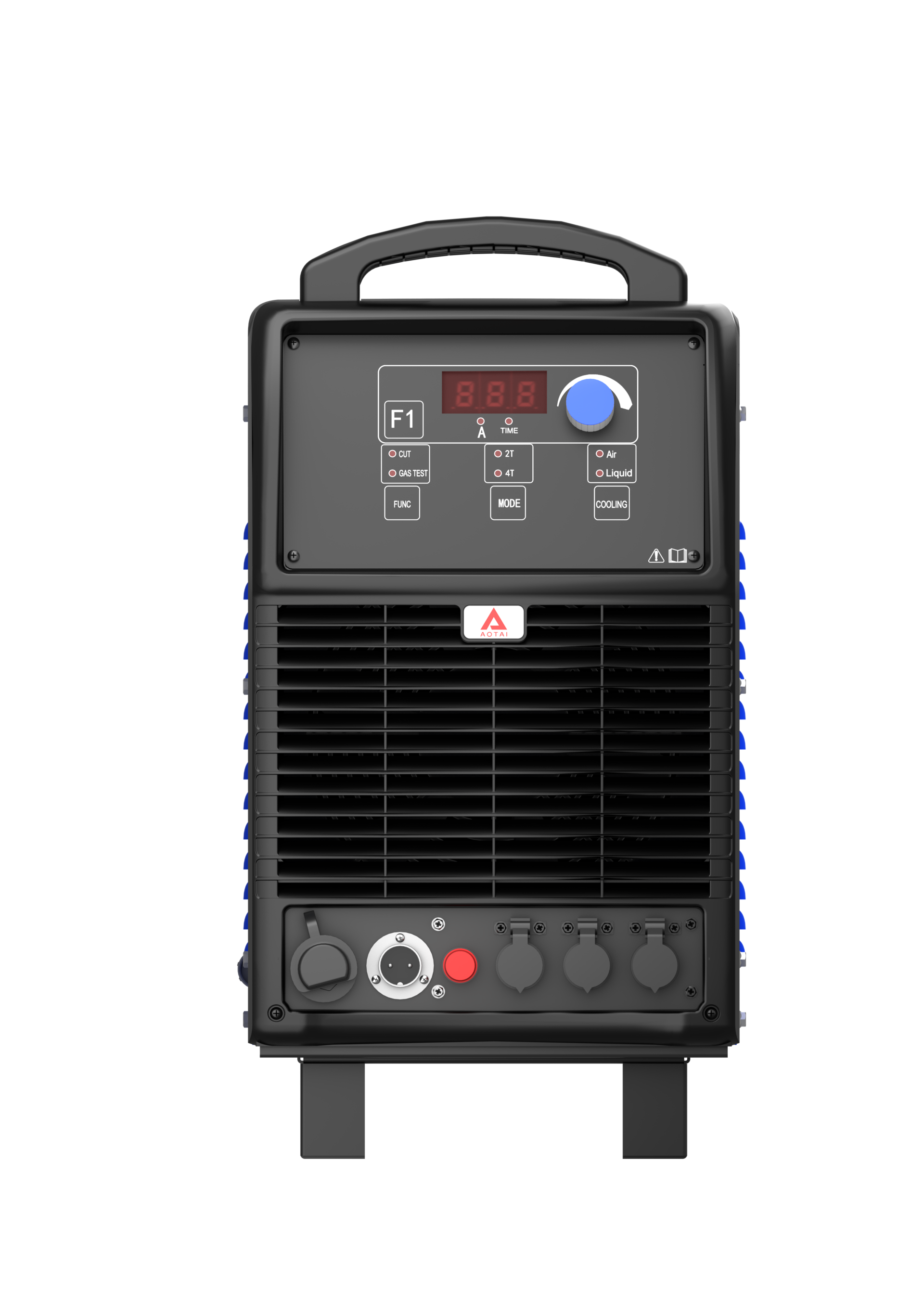

ACUT-160/200

ACUT-160 /200 is invented for professional use in heavy duty application. ACUT power source can be used for manual cutting with HF ignition to provide best arc start and avoid defect in arc start process. ACUT series can show best result for cutting steel with thickness up to 60 mm.


Output t34.png t33.png t58.png       Input t39.png  t41.png       Process t27.jpg


Materials t45.png t46.png t47.png t48.png                            t11.jpg  t15.jpg


Share：

Inquiry
Features
Specification

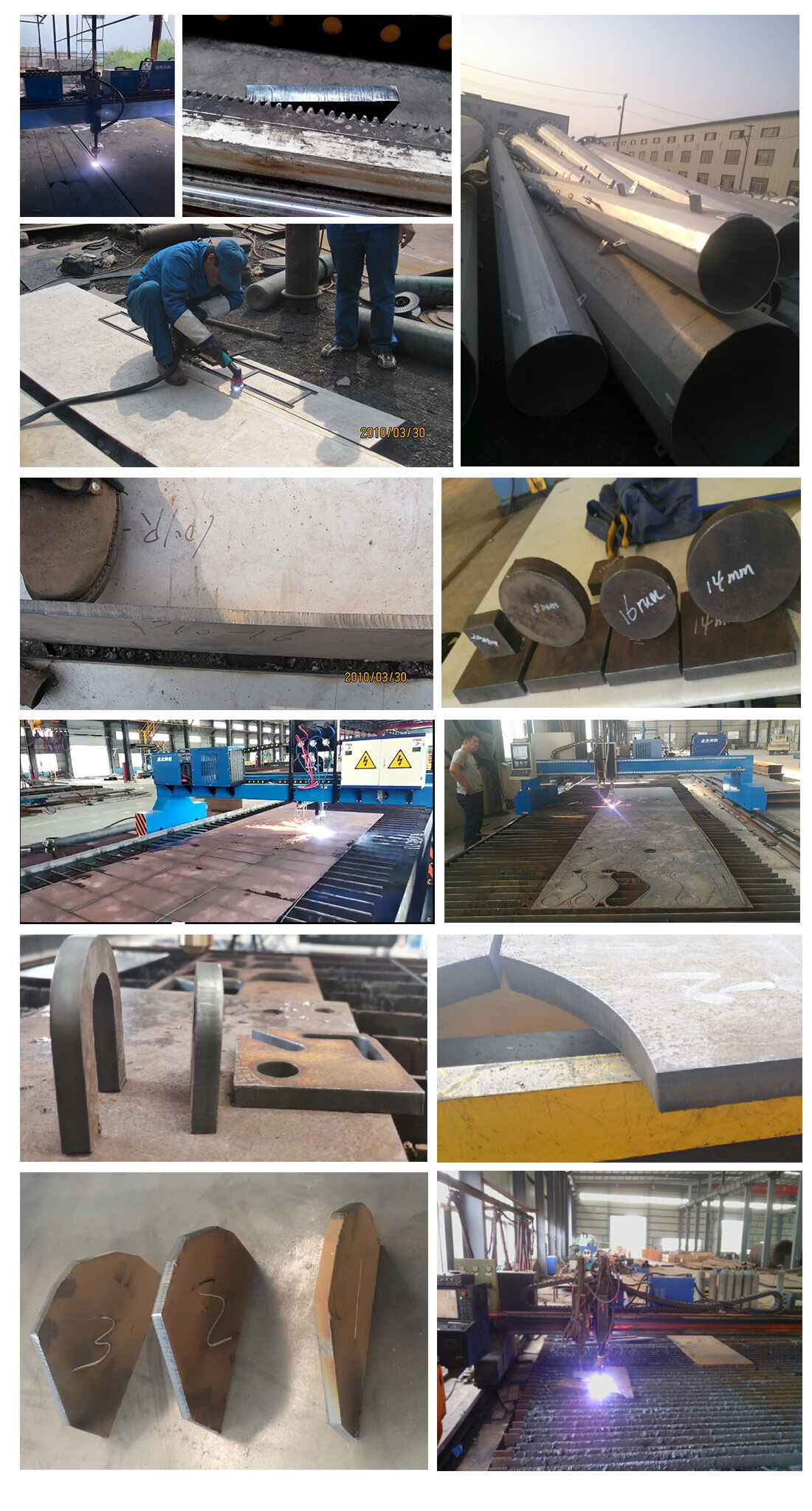

Application
Accessories
Download


  • Excellent cutting ability: concentrated energy ensures smooth and neat cutting surface

  • Multiple protection: ensuring stable operation of air compressor

  • CNC interface: CNC interface and multiple functions make it enjoy great popularity

  • Outstanding cut thickness: as for carbon steel cutting, an edge starts is appicable for no more than 40mm, a pierce starts is applicable for no more than 20mm

  • Long-cable cutting torch: up to 15m

  • Easy arc starting: the maximum arc starting height is 10mm



ACUT160ACUT200
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)3034
Rated input current (A)4355
Duty cycle (40℃)100%@160A100%@200A
OCV (V)320
Arc ignition methodSpecial HF
Output current rang (A)30-16030-200
Maximum cutting thickness (mm)60
Clean cut thickness (mm)1-30
Air pressure (Mpa)0.4-0.55
Water flow rate (L/min)250
Protection classIP21
Insulation classH
Dimension (mm)660*320*560720*330*630
Weight (kg /lb)52 /114.6
58 /128.1



Standard Equipments

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m

  • 1 Pressure-reducing valve

  • 1 Plasma torch

  • 1 Water cooler 20L
