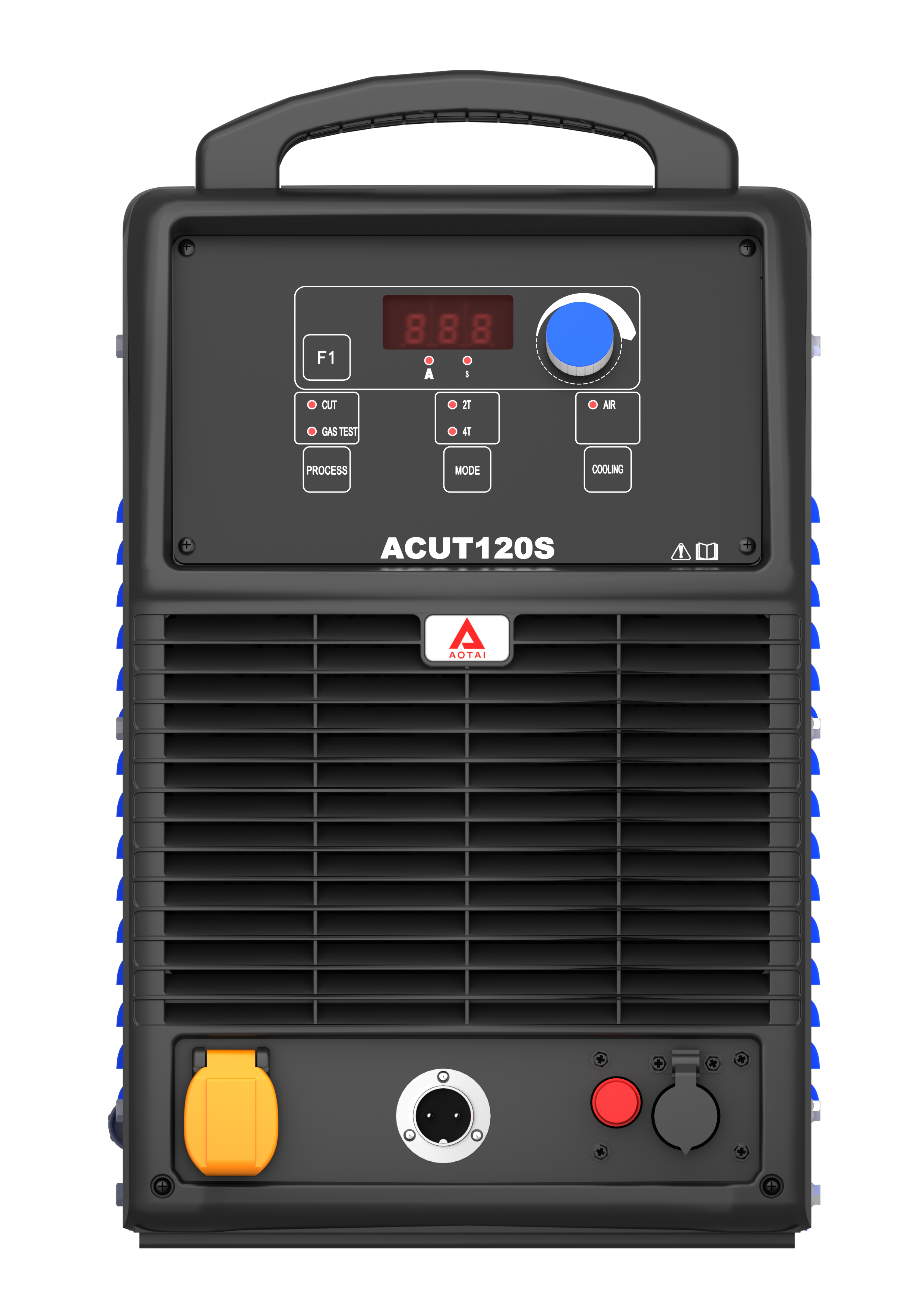

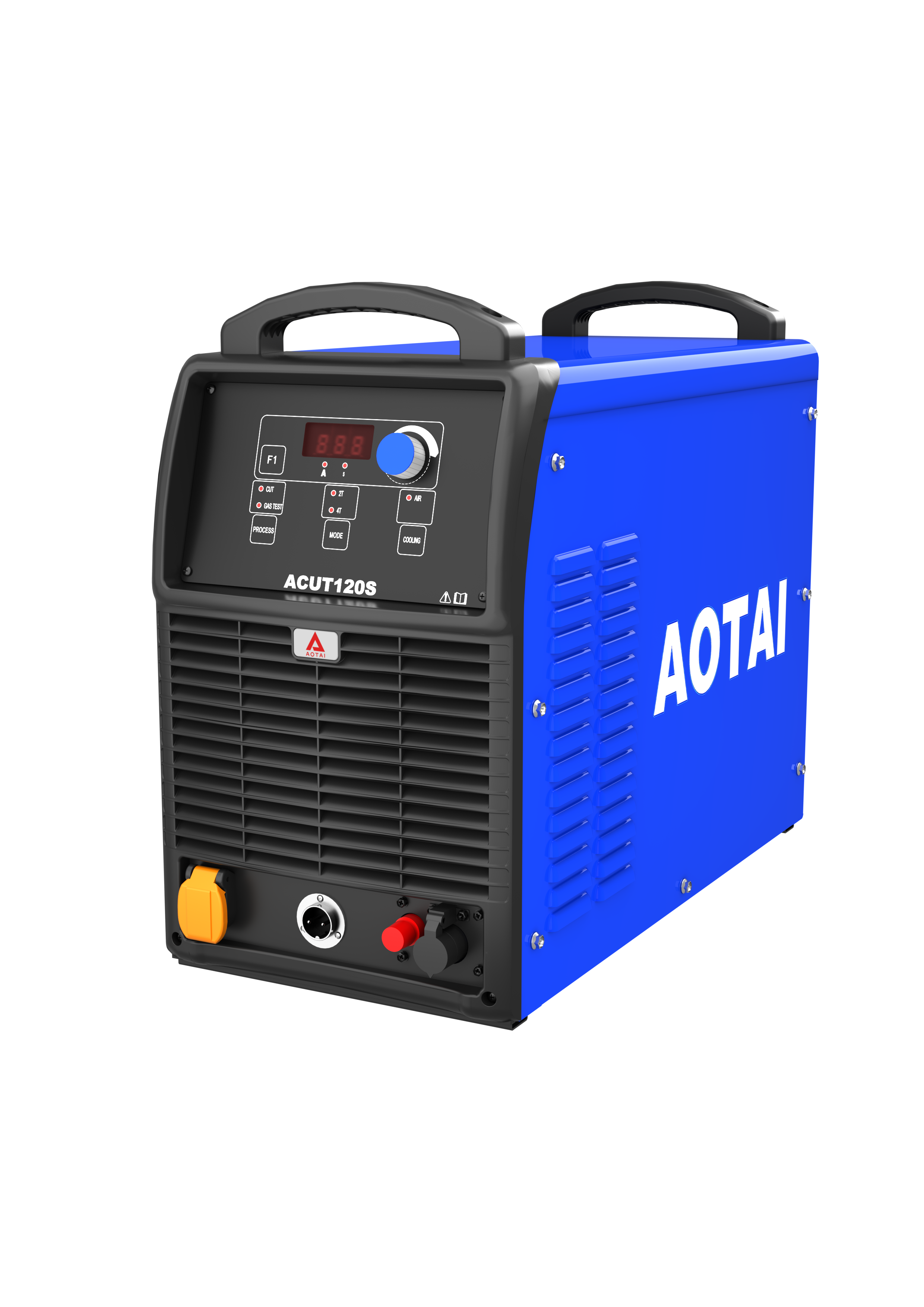

ACUT120S

ACUT-S series is invented for professional use in heavy duty application with CNC system. ACUT-S series can be integrated with CNC system and have special non HF ignition for best arc start. ACUT-S series can show best result for cutting steel with thickness up to 45 mm.


Output t34.png t33.png t58.png       Input t39.png  t41.png       Process t27.jpg


Materials t45.png t46.png t47.png t48.png                                      t11.jpg  t15.jpg


Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • Light in weight: inverter technology makes it easy to be maintained or carried

  • Multiple applicable materials: carbon steel, stainless steel, copper, alumi-num, and others

  • Highly reliable: self-diagnosis function and multiple protections

  • Friendly for plasma torch: post flow for additional cooling of plasma torch

  • Best choice for CNC plasma cutting system: the special HF /Non-HF ignition ensures the best arc starting

  • Highly stable: the expanded service life of the fan and reduced fault rateowing to the smart fan feature



ACUT120S
Rated input voltage /frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)16.5
Rated input current (A)25
Duty cycle (40℃)100%@120A
OCV (V)330
Output current rang (A)30-120
Arc ignition methodHF /Non-HF
Maximum cutting thickness (mm)45
Clean cut thickness (mm)1-30
Air pressure (Mpa)0.45-0.55
Protection classIP23
Insulation classH
Dimension (mm)660*320*560
Weight (kg /lb)50 /110.2



ACUT 120A.jpg



Standard Equipments

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m with clamp and quick plug

  • 1 Pressure-reducing valve

  • 1 Plasma torch


ACUT120S.pdf
