Solar Inverter

‹

›

‹

  • ASP-80/90/100/110/125KTLC

›

ASP-80/90/100/110/125KTLC

Share：

Inquiry
Features
Specification
Application
Download

Flexible design

  • Multi-communication interface:  RS485, GPRS(optional), Wifi(optional)  DC breaker, easy to maintain and safe to use

  • Integrated functions of combiner  box& DC lightning protection, reduce  system cost for users

Efficient conversion

  • Transformerless,max.  efficiency is up to 98.9%

  • Euro. efficiency is up to  98.2%

  • Total current THD <2%

  • Three-level SVPWM  control technology,  increase DC voltage  utilization

Grid friendly

  • LVRT HVRT function

  • Adjustable reactive power,  power factor from 0.8  leading to 0.8 lagging

  • Active and passive anti-islanding protection

  • Continuously adjustable  active power (0-100%)  function

Excellent qualities

  • CQC Gold Sun Certification

  • TUV Certification

  • SAA  Certification

  • CE Certification

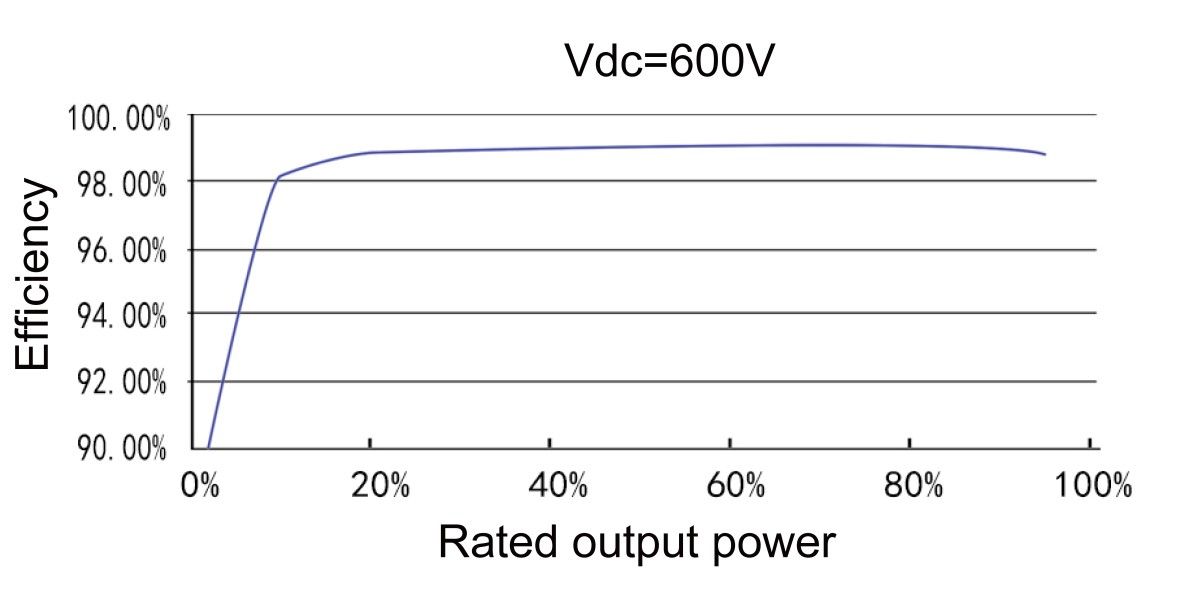

EFFICIENCY CURVE





Model Name80KTLC90KTLC100KTLC110KTLC125KTLC
Input
Max. DC input power120KW135KW150KW165KW187.5KW
Max. DC input voltage1100V
Max. DC input current30A*830A*9
30A*1030A*1030A*10
MPPT voltage range200~1000V
Recommended MPP operating voltage600V
No.of MPPT89101010
Max. no. of strings per MPPT2
Output
Rated output power80KW90KW100KW110KW125KW
Max. output power88KVA99KVA110KVA121KVA137.5KVA
Max. output current127A142.9A
158.8A174.6A199.3A
Rated grid voltage400V
Grid voltage range310~480Vac
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD< 2% (Under the rated power)
Power factor>0.99(rated power) /0.8 leading ~ 0.8 lagging
DC current injection< 0.5% (Under the rated power)
System data
Max. efficiency96.6%98.6%98.7%98.7%98.9%
Euro. efficiency98.1%98.1%98.1%98.1%
98.2%
Humidity range0-100% non-condensing
Cooling typeIntelligent forced air cooling
Temperature range-25~+60°C
Power consumption at night< 1W
Max. working altitude4000m
DisplayLED/LCD(optional)
Communication interfaceRS485/Wifi/GPRS(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchYes
Mechanical data
Dimensions (WxHxD)1050x620x333mm
Weight89kg
Protection classIP66
Standard
Grid-connected standardNB/T32004-2018; IEC61727
Safety standardNB/T32004-2018; IEC 62109-1/2
Electromagnetic compatibilityIEC 61000-6-2/4
