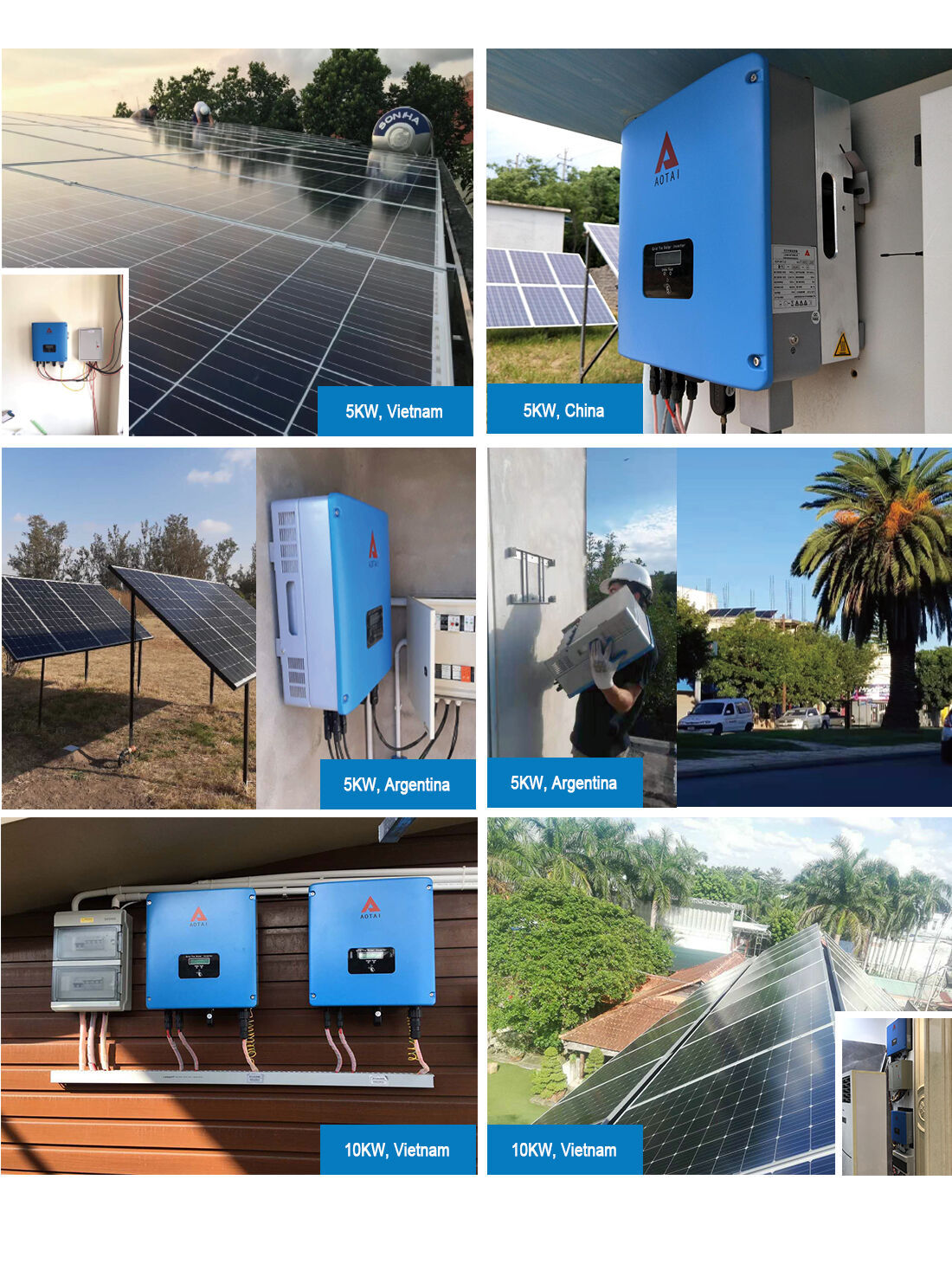

Model Name | 3KTLD | 4KTLD | 5KTLD | 6KTLD | 8KTLD | 10KTLD |
Input |
Max. DC input power | 3900W | 5200W | 6500W | 7200W | 9200W | 11500W |
Max. DC input voltage | 550V |
Max. DC input current | 15A | 15/15A | 15/15A | 15/15A | 20/26A | 20/30A |
MPPT voltage range | 80~550V |
Recommended MPP operating voltage | 360V |
No.of MPPT | 1 | 2 |
Max. no. of strings per MPPT | 1 | 1/2
|
Output |
Rated output power | 3000W
| 4000W | 5000W | 6000W | 8000W | 10000W |
Max. output power | 3.3KVA | 4.4KVA | 5.5KVA | 6KVA | 8KVA | 10KVA |
Max. output current | 15A | 20A | 25A | 27A | 34.8A | 45A |
Rated grid voltage | 230V |
Grid voltage range | 160~270Vac (adjustable) |
Rated grid frequency | 50Hz /60Hz |
Grid frequency range | 45~55Hz /55~65Hz |
THD | < 2% (Under the rated power) |
Power factor | > 0.99 (Under the rated power) /Adjustable range:0.8 leading~0.8 lagging |
DC current injection | < 0.5% (Under the rated power) |
System data |

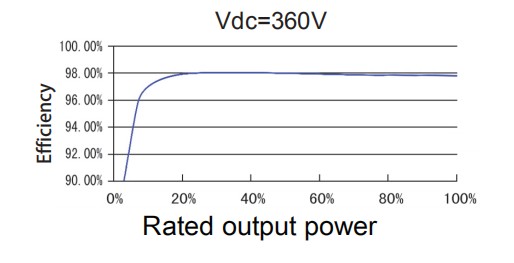

Max. efficiency | 98% | 98.1% | 98.1% | 98.1% | 98.1% | 98.1% |
Euro. efficiency | 97.5% | 97.5% | 97.5% | 97.5% | 97.5% | 97.6% |
Humidity range | 0-100% non-condensing |
Cooling type | Air cooling | Intelligent forced air cooling
|
Temperature range | -25~+60℃ |
Power consumption at night | < 1W |
Max. working altitude | 4000m |
Display | LED /LCD /(optional) |
Communication interface | Wifi /RS485 /GPRS(optional) |
Protection |
DC reverse-polarity protection | Yes |
Short circuit protection | Yes |
Output over current protection | Yes |
Output over voltage protection | Yes |
Insulation resistance monitoring | Yes |
Residual current detection | Yes |
Surge protection | Yes |
Grid monitoring | Yes |
Islanding protection | Yes |
Temperature protection | Yes |
Integrated DC switch | Optional |
Mechanical data |
Dimensions (WxHxD) | 347x368x167mm | 347x368x190mm |
Weight | 7Kg
| 12Kg | 11Kg
|
Protection class | IP66 |
Standard |
Grid-connected standard | NB/T 32004-2018; IEC 61727 |
Safety standard | NB/T 32004-2018; IEC 62109-1/2 |
Electromagnetic compatibility | IEC 61000-6-2/4 |
