Solar Inverter

‹

›

‹

  • ASP-30/33/36/40KTLC

›

ASP-30/33/36/40KTLC

Share：

Inquiry
Features
Specification
Application
Download

Flexible design

  • Multi-communication interface: RS485,  GPRS(optional), Wifi(optional)  DC breaker, easy to maintain and safe to use

  • Integrated functions of combiner box&  DC lightning protection, reduce system cost for users

Efficient conversion

  • Transformerless,max.  efficiency is up to 98.8%

  • Euro. efficiency is up to 98.3%

  • Total current THD <2%

  • Three-level SVPWM control  technology, increase DC  voltage utilization

Grid friendly

  • LVRT function Adjustable reactive power, power factor from 0.8 leading to 0.8 lagging

  • Active and passive  anti-islanding protection

Excellent qualities

  • CQC Gold Sun Certification

  • TUV  Certification

  • SAA Certification

  • CE Certification

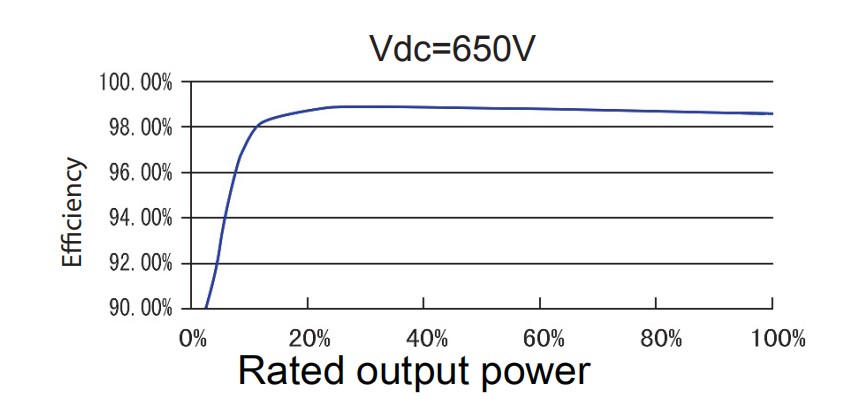

EFFICIENCY CURVE

图片 9.png




Model Name30KTLC33KTLC36KTLC40KTLC
Input
Max. DC input power36000W39600W43200W48000W
Max. DC input voltage1100V
Max. DC input current45/36A45/36A45/45A45/45A
MPPT voltage range650V
Recommended MPP operating voltage650V
No.of MPPT2
Max. no. of strings per MPPT3/234
Output
Rated output power30000W33000W36000W40000W
Max. output power33KVA36.3KVA39.6KVA44KVA
Max. output current48A
53A56A65A
Rated grid voltage400V
Grid voltage range310~480Vac
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD< 2% (Under the rated power)
Power factor>0.99(under the rated power)/Adjustable range：0.8 leading ~ 0.8 lagging
DC current injection< 0.5% (Under the rated power)
System data
Max. efficiency98.7%98.7%98.8%98.8%
Euro. efficiency98.1%98.2%98.2%98.3%
Humidity range0~100% non-condensing
Cooling typeIntelligent forced air cooling
Temperature range-25~+60°C
Power consumption at night< 1W
Max. working altitude4000m
DisplayLED indicator /LCD displayer(optional)
Communication interfaceWifi /RS485 /GPRS(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchYes
Mechanical data
Dimensions (WxHxD)522x482x209mm
Weight32kg
Protection classIP66
Standard
Grid-connected standardNB/T32004-2018; IEC61727
Safety standardNB/T32004-2018; IEC 62109-1/2
Electromagnetic compatibilityIEC61000-6-2/4

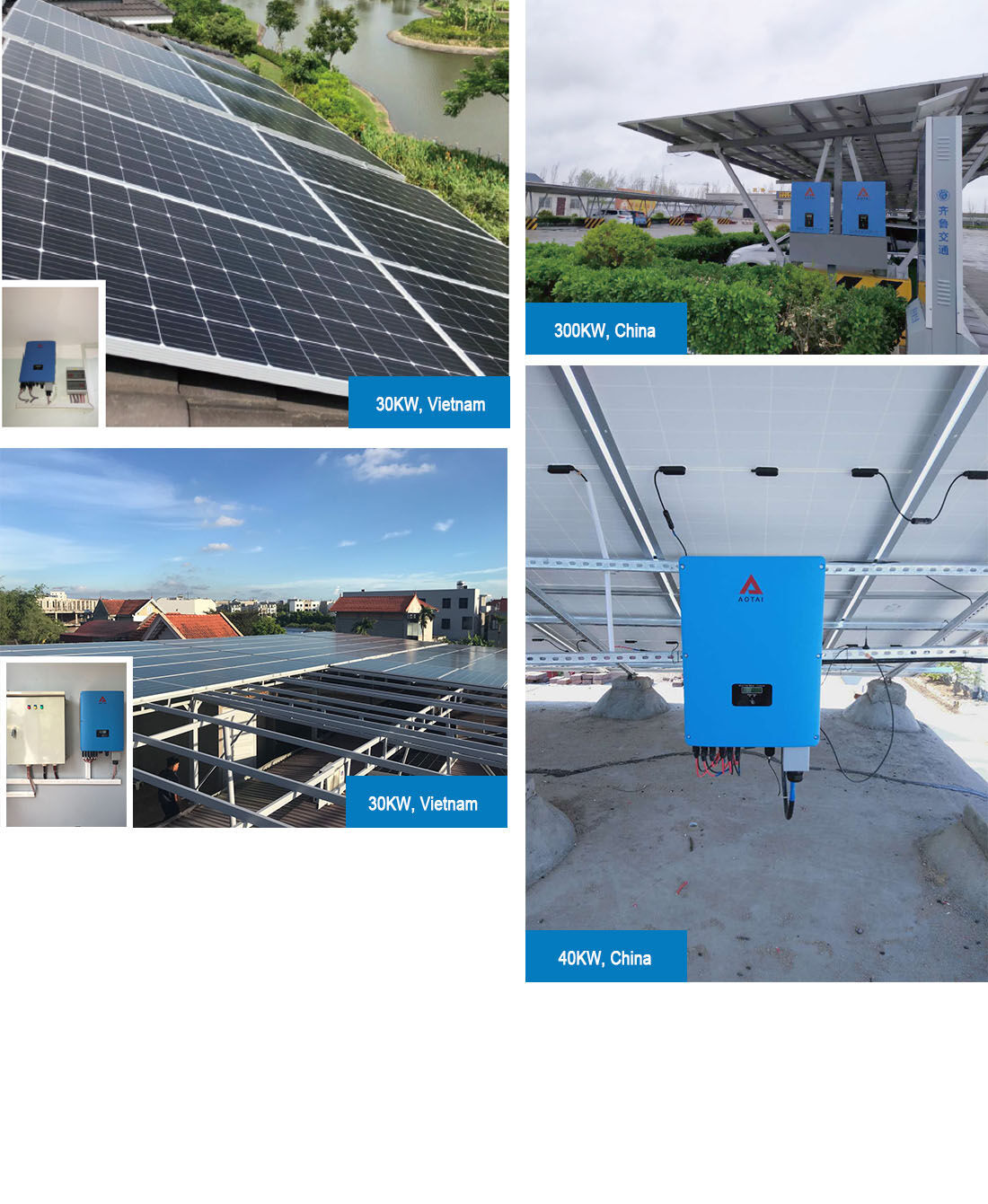

25 -40KTLC.jpg


ASP-30/33/36/40KTLC.pdf
