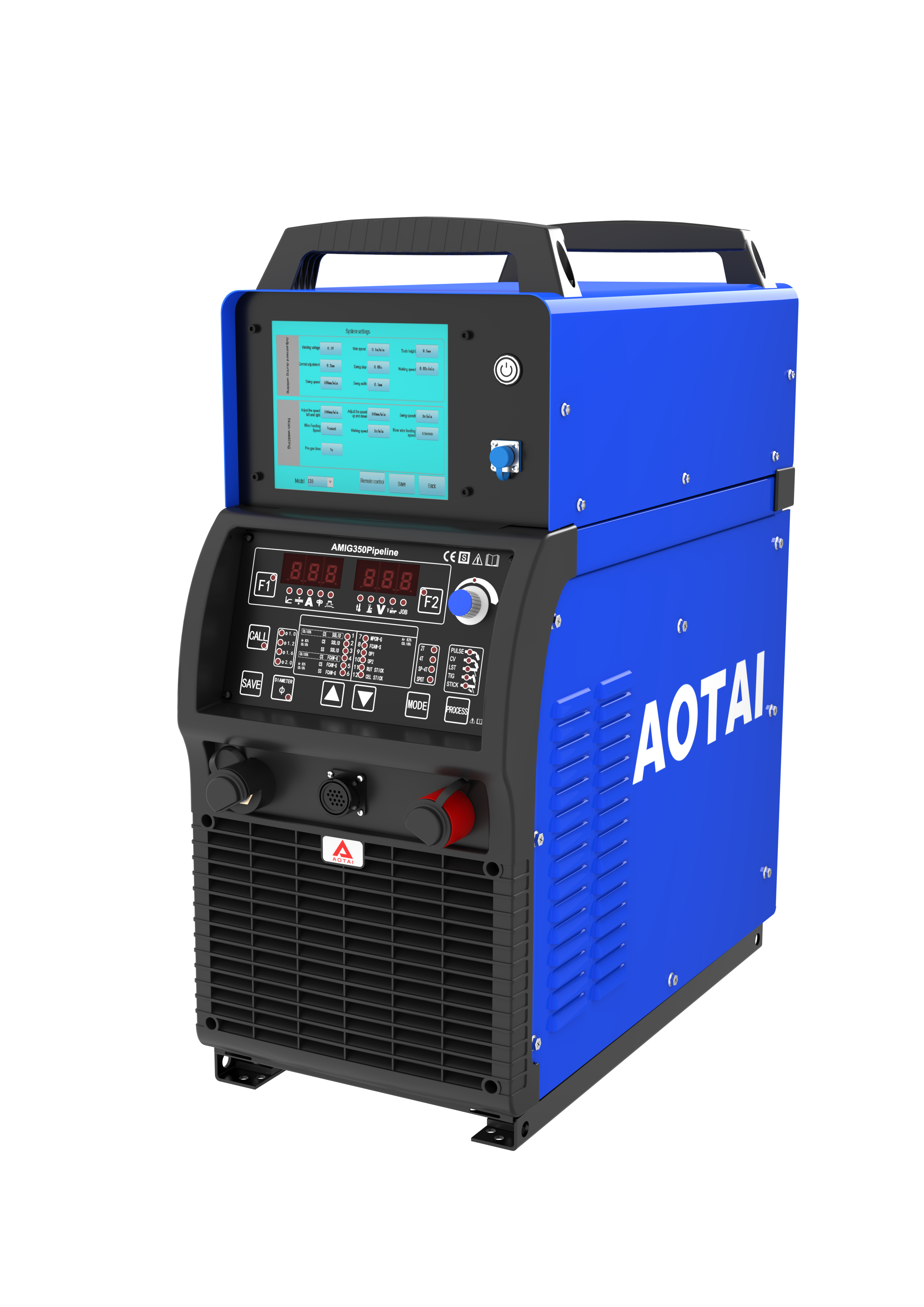

AT350M(YX)

AT350M(YX) is an automatic single-torch pipeline welding system mainly used to automatically weld the girth seam of heat, water transporting, and other pipelines with medium and large diameters. It can also be used in overlay welding and stringer welding through a single welding torch. This is one of the advanced equipment used to realize automatic full-position welding.


Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • The whole sysytem set adopts embedded control that enjoys high running stability and precise control

  • The adopted fully digital welding machine ensures first-class welding performance

  • The professional design of the tractor and rail is for complete adaption to work for the thermal insulation layer on-site narrow space



Welding machine and control system
Powering voltage for control system (V/Hz)1 phase, 220V±10%  50 Hz
Powering voltage for welding machine (V/Hz)3 phase, 380V±10%  50 Hz
Size of Man-Machine interface7-inch
Dimension (mm)695*330*725
Weight (kg /lb)68/149.9
Duty cycle (40℃)60%@350A
Range of output current /voltage60A/17V-350A/31.5V
Wire feeding diameter (mm)Ф0.8, Ф1.0, Ф1.2
Running temperature(℃)-20-50
Insulation classH
Protection classIP23



Welding tractor
Applicable pipe diameter (mm)≥219
Weight of machine head (kg /lb)16 /35.3
Size range of machine head (mm)498*285*280
Quantity of welding torch1
Traveling speed range (mm/min)0-800
Oscillation methodLinear oscillation, angled oscillation
Oscillation speed (mm/min)0-5000
Edge dwell time (s)0-2.0
Stroke of the welding torch in vertical axis (mm)40
Stroke of the welding torch in horizontal axis (mm)40



Standard Equipments

  • 1 AMIG350 PipeLine

  • 1 Control cable assembly

  • 1 Welding cable

  • 1 Welding carriage

  • 1 Remote controller

  • 1 Rail
