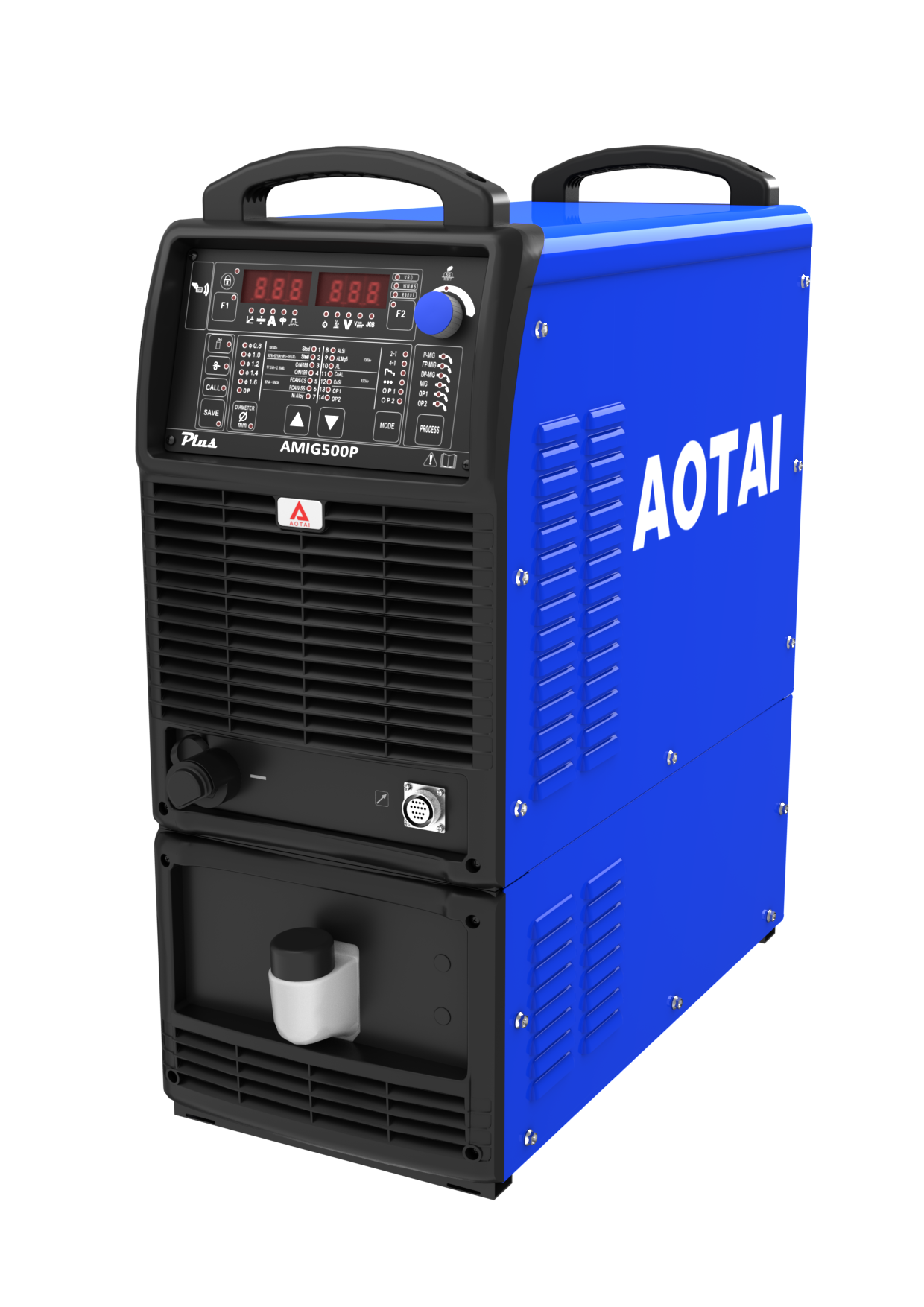

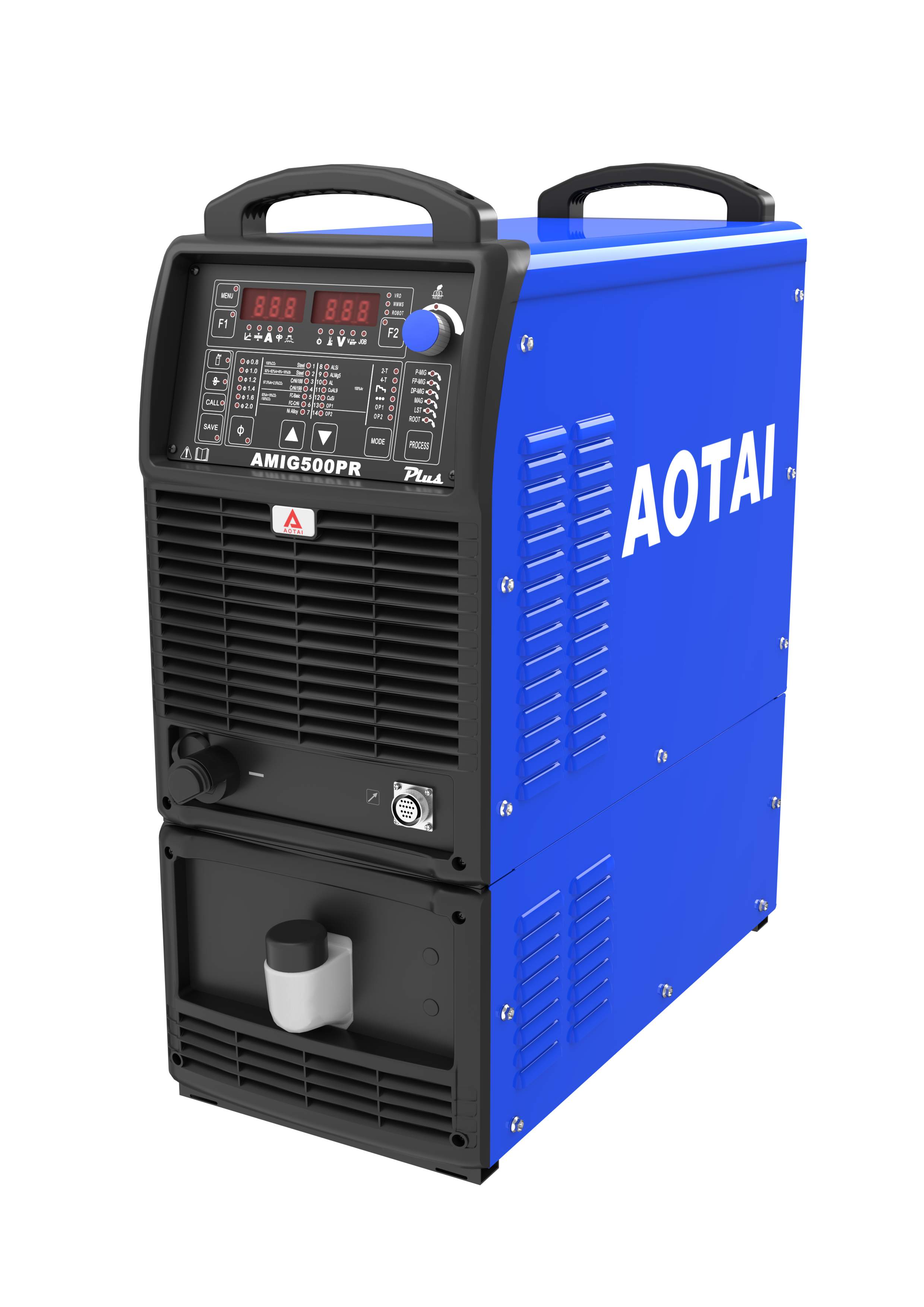

AMIG500PR PLUS is a pulse welding equipment with high efficiency, high quality and high deposition rate. It can conduct fine control to waveform and realize the breakthrough for multiple advanced MIG process through the high-speed ARM 32-bit digital chip. It also adopts new-generation high-frequency mian circuit platform from AOTAI, which can precisely control arc forms and greatly improved the welding effects.
High-frequency inverter: 60KHZ inverting frequency, delicately manage the energy of droplets in real time, energy-centralized and high-stiffness arc
Stable arc: The newest energy control solution, up to 45 meters loop cable in pulsed welding, stable low-current welding with unbroken arc
Precise current: Wider adapting range for mixture gas, more precise current consistency during welding with long electrode extension
Easy arc starting: Freely switch arc starting mode, high arc starting success rate
Advantage process: pulse, twin pulse, super twin pulse, rapid pulse, deep penetration, low spatter, CV and many other welding processes; customized developing process modules according to customer requirements is accessible
Aluminum alloy welding expert: In aluminum alloy welding, it enjoys strong ability to break oxidative film, strong arc directionality, even metal transfer, beautiful seam formation.
Twin-core control: Twin-core 32-bit ARM processor is adopted as the main control system, nanosecond response speed
Stable wire feeding: Newly designed twin closed loops wire feeding control system cooperates with high-torque permanent-magnet machine to ensure precise and stable wire feeding.
One-key operation: save and recall 100 sets of parameters
1 Power source
1 Connected primary cable L=3m
1 Ground cable L=3m
1 Wire feeder
1 Wirefeeder cable L=5m
1 Wire conduit
1 Voltage feedback wire
1 Analog control cable
1 Wire spool holder
