Matching Welding Machine

‹

AMIG400/500PSR Plus

›

‹

  • AMIG400/500PSR Plus

›

AMIG400/500PSR Plus

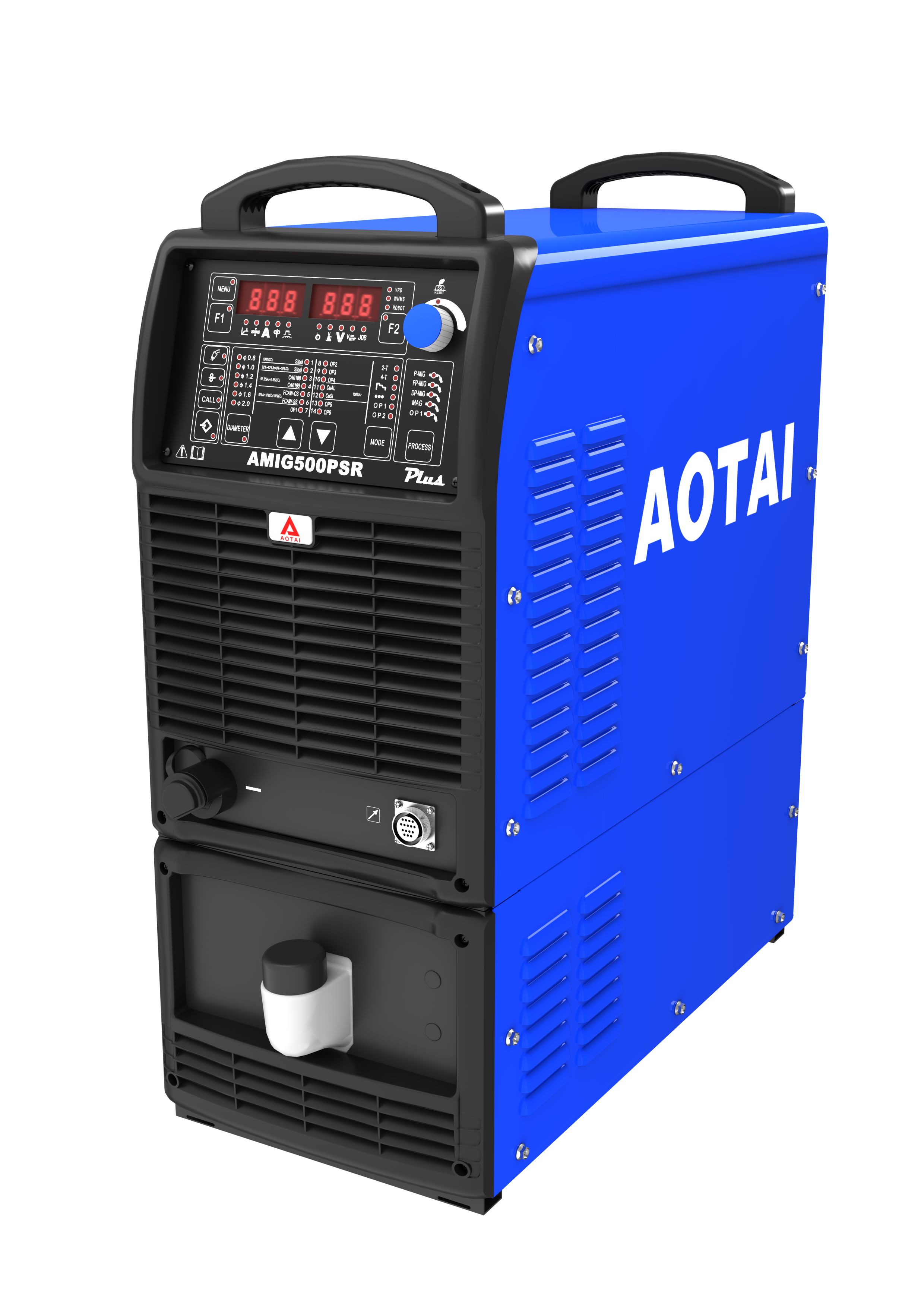

AMIG-400 /500PSR Plus is a high-efficiency pulse MIG welder offering superior weld quality and high deposition rates. Its 32-bit ARM digital control enables precise waveform and advanced MIG processes, while AOTAI's next-generation high-frequency circuit ensures accurate arc control, stable welding, and excellent weld appearance.


Output t35.png t33.png 微信图片_20220317091517.jpg t10.jpg t52.png t53.png t62.png       Input t39.png  t41.png


Process t26.jpg  微信图片_20220317095739.png



Materials t45.png t46.png t47.png t49.png                                           t11.jpg  t15.jpg










Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • High-frequency control: 60 kHz inverter manages real-time droplet transfer control, delivering a concentrated, focused arc stability

  • Stable arc performance: advanced energy control enables stable, low-current pulse welding 45 m cable extension

  • Precise current control: wide adaptability to mixed shielding gases and consistent current with long electrode extension

  • Reliable arc starting: multiple arc-start modes with high ignition success rate

  • Advanced welding processes: pulse, double pulse, rapid pulse, deep penetration, CV, and customized process modules

  • High-speed twin-core control: dual 32-bit ARM processors with nanosecond-level response

  • Stable wire feeding: twin closed-loop feeding system with high-torque permanent magnet motor

  • Efficient operation: one-key save and recall of up to 100 parameter sets



AMIG400PSR PLUSAMIG500PSR PLUS
Rated input voltage /frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)1825
Rated input current (A)27.538
Range of welding current (A)30~40030~500
Range of welding voltage (V)15.5~3415.5~39
OCV (V)76
Duty cycle (40℃)100%@400A100%@500A
Full-load efficiency (%)≥89
Wire diameter (mm)Ф0.8,Ф1.0,Ф1.2,Ф1.4Ф1.0,Ф1.2,Ф1.4,Ф1.6
Gas flow (L/min)15~20
Dimension (mm)660*320*560
Weight (kg/lb)48 /105.8
55 /121.3
Insulation classH
Protection classIP23




500p plus应用案例.jpg



Standard Equipments:

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m

  • 1 Wirefeeder

  • 1 Wirefeeder cable L=5m

  • 1 Wire conduit

  • 1 Voltage feedback wire

  • 1 Analog control cable

  • 1 Wire spool holder
