AMIG350/500Pro

AMIG350/500ProR Plus is AOTAI’s new generation of high-end welding equipment.It uses the FPGA chip as the control core, supplemented by a 60KHz main circuit platform, which has improved the control speed and circuit response speed several times, realized the precise control of the droplet transfer, and brought the top advanced welding technology. The best choice for steel/galvanized sheet/stainless steel/nickel-based alloy and other materials.


Share:

Inquiry
Features
Specification

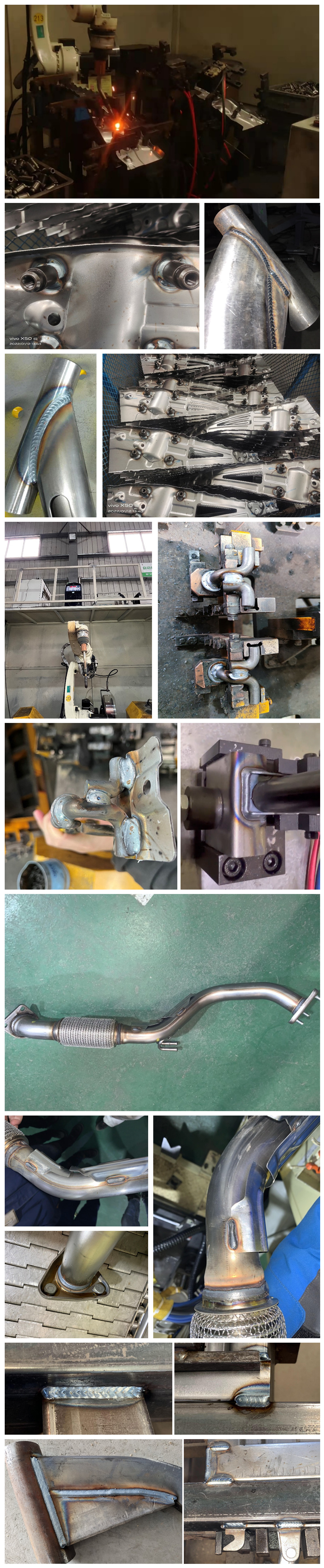

Application
Accessories
Download
  • FPGA Fully digital multi-core control system controls the welding process accurately to achieve low spatter welding.
  • SLST Super low spatter process, expert in thin plate welding, the amount of spatter is reduced by 95% compared with traditional processes.

  • SSAP Super short-arc pulse process, higher welding quality and faster welding speed.

  • CP Constant penetration process, high-quality welds, narrow gap fillet welds are easier to weld.

  • CCP Customized craftsmanship provides customers with a confidentiality mechanism.

  • FSW Fast spot welding function, specially designed for robot high-speed spot welding process

  • 4 Rolls drive, fully digital double closed-loop grating feedback wire feeding system, the wire feeding is more accurate and stable.

ModelAMIG350ProAMIG500Pro
Power supply voltage/Freq3~380V±10%,50/60Hz
3~380V±10%,50/60Hz
Rated power capacity(KVA)1425.2
Rated input current(A)2645
Duty cycle(%)100%100%
Output current range(A)60~35060~500
Output voltage range(V)17~31.517~39
OCV(V)7575
Wire diameter(mm)Ф0.8、Ф1.0、Ф1.2Ф0.8、Ф1.0、Ф1.2
Torch typePushPush
Welding processCV MIG, Pulse,Double pulse, SSAP, CPCV MIG, Pulse,Double pulse, SSAP, CP
Gas flow(L/min)15~2015~20
Insulation classHH
Dimension(mm3635x320x630635x320x630
Weight(kg)6060
