ARC-1000/1250

ARC-1000/1250

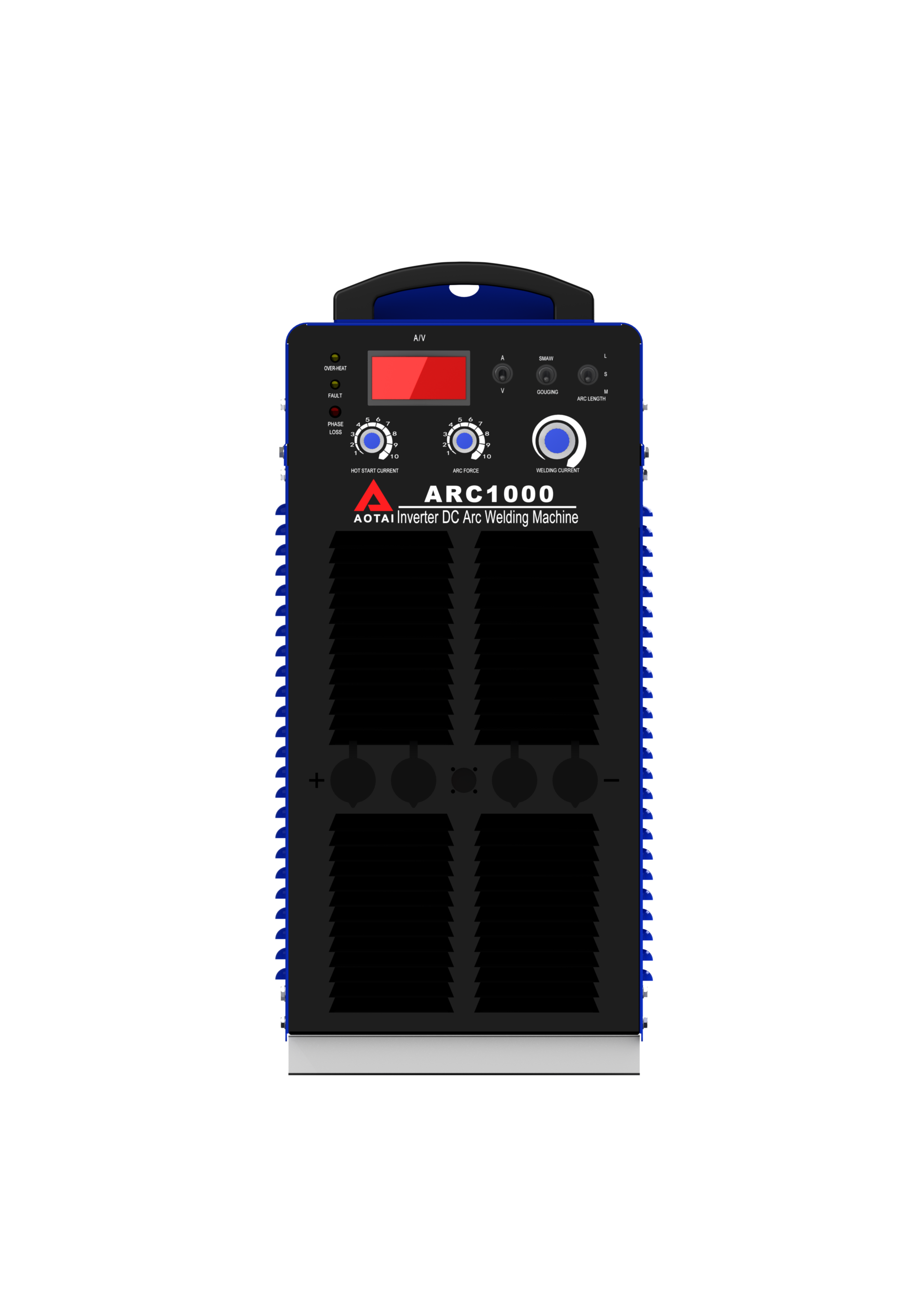

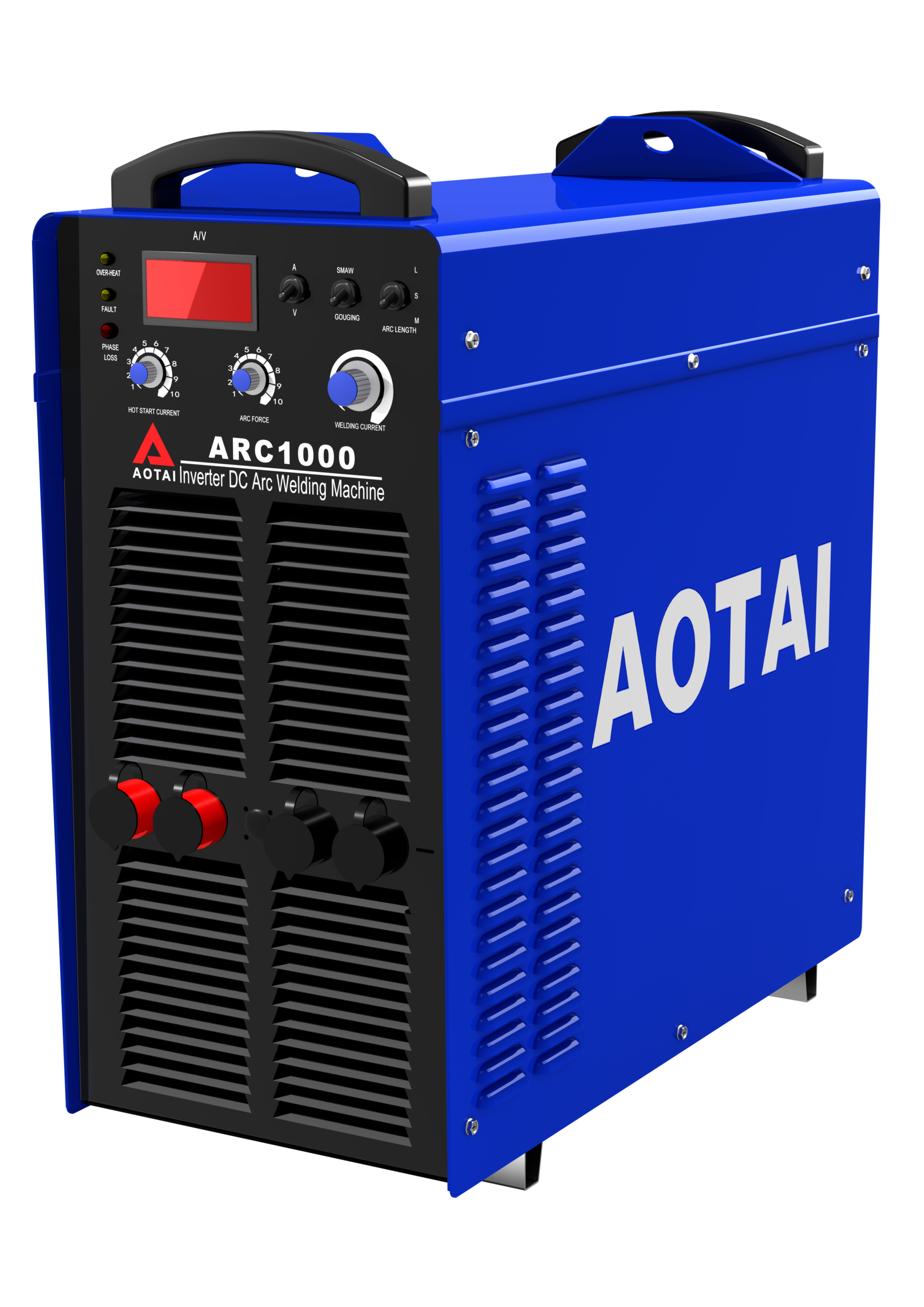

ARC-1000 /1250 is a high-power output welding machine with gouging and SMAW processes. It also has an arc voltage compensation function specially designed for the gouging process to ensure arc stability during gouging.


Output ARC-1000/1250  ARC-1000/1250  ARC-1000/1250       Input ARC-1000/1250  ARC-1000/1250       Process ARC-1000/1250  ARC-1000/1250


                                                                                                                    ARC-1000/1250

Share:

Inquiry
Features
Specification

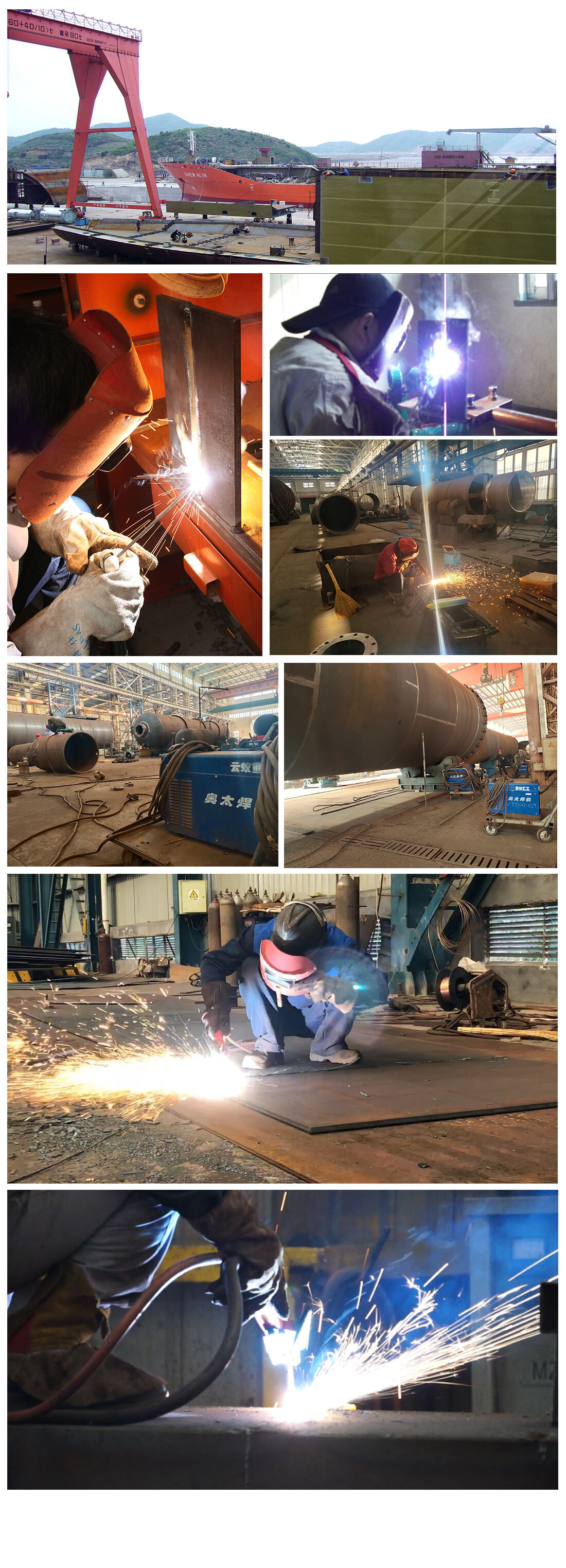

Application
Accessories
Download


  • multiprocess: Gouging & MMA

  • Hot arc starting: stepless adjustment and 100% arc starting sucess rate

  • Arc force: continuously adjustable in MMA mode, which provides anti-stick, unbroken arc, and stable arc for long cable welding

  • Digital display: current and voltage

  • Remote control: wired and wireless(optional)

  • Multiple protections: against overheating, over-current, and over-voltage

  • VRD function: optional

  • Long welding cable: up to 100m

  • Professional GOUGING process: power compensation is designed according to cable length, ensuring unbroken arc

  • High reliability: adopting multiple insulation materials to protect PCB and main circuit

  • Generator-compatible (optional)



ARC1000ARC1250
Rated input voltage/frequency (Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)5567
Rated input current (A)83101
Duty cycle (40̊C)100%@1000A100%@1250A
OCV (V)8290
Output current range (A)60-100060-1250
Efficiency89%
Protection classIP21S
Insulation classH
Dimension (mm)767*352*757767*352*802
Weight (kg/lb)95 /209.8100 /220.9


ARC-1000/1250



Standard Equipments:

  •  1 Power source

  •  1 Connected primary cable L=3m

  •  1 Welding cable L=3m (optional)

  •  1 Ground cable L=3m (optional)
