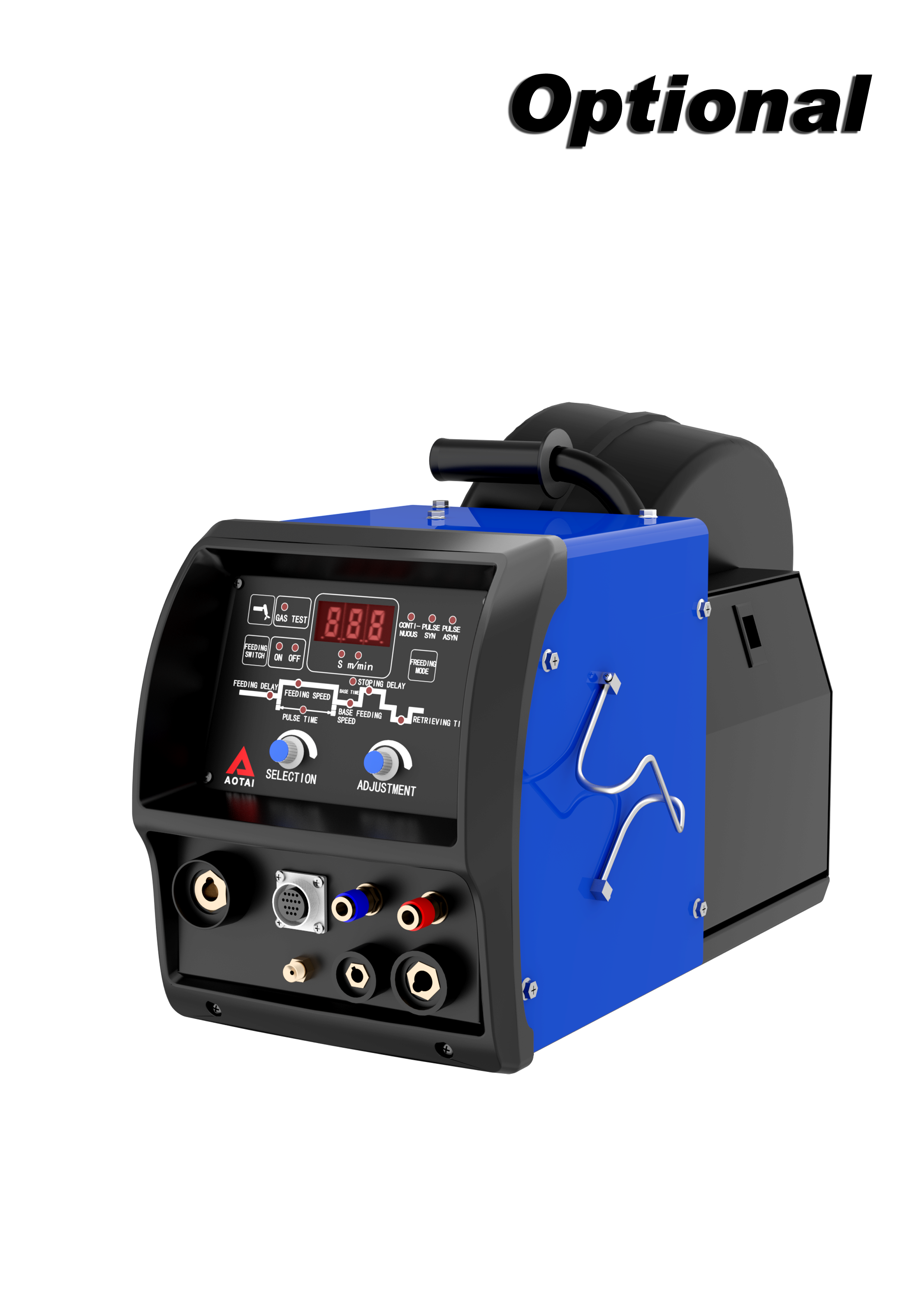

ATIG-PAC-315/400/630

ATIG-PAC Series is digital models with high end MCU technology, suitable for both automatic application and manual welding. It offers multiple parameters adjustment to ensure perfect welding for stainless steel (DC) welding and Aluminum (AC) welding.


Output t34.png  acdc.png  微信图片_20220317091517.jpg     Input t39.png  t41.png    Process t21.jpg  t25.jpg



Share:

Inquiry
Features
Specification

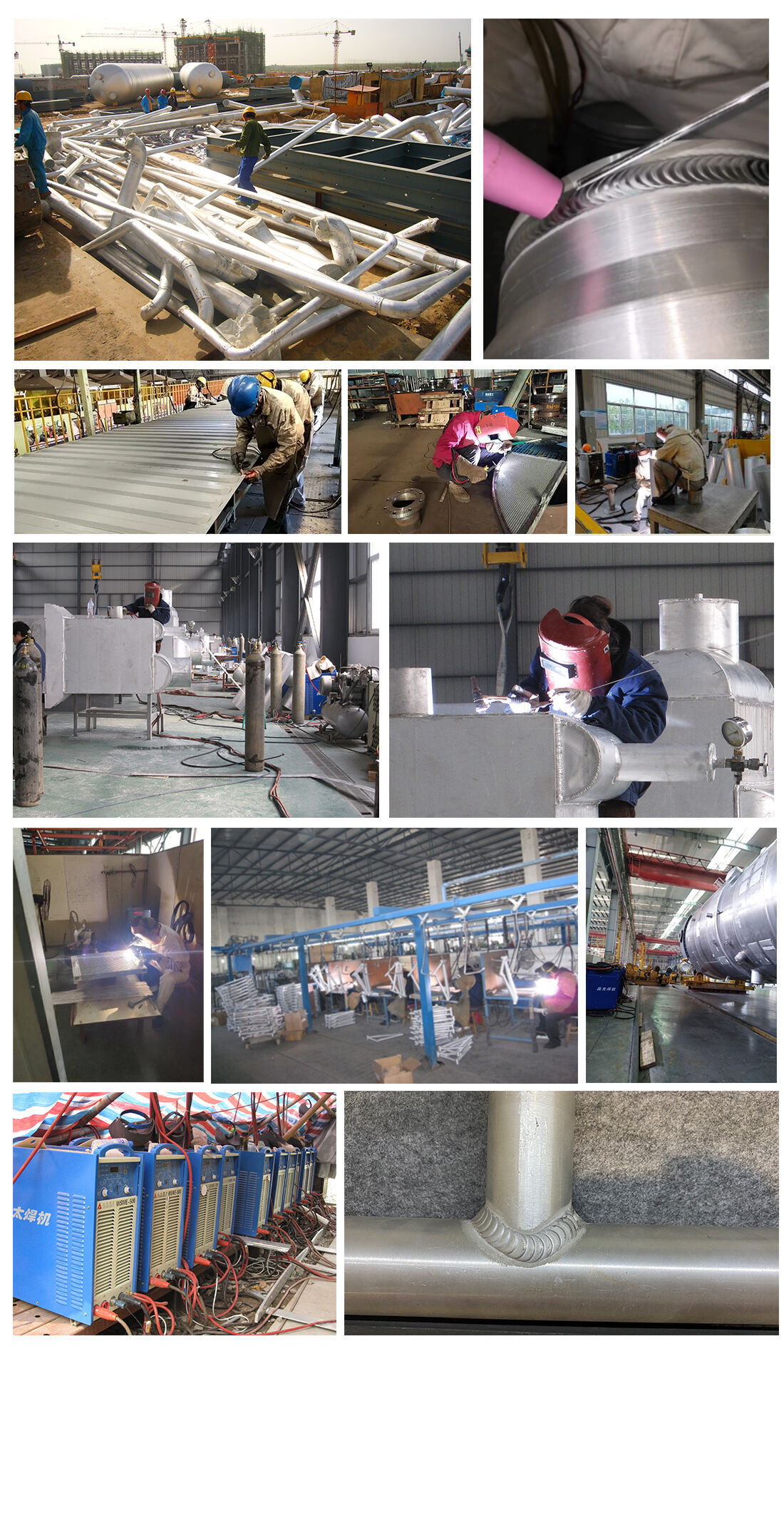

Application
Accessories
Download
  • Multi-process: AC TIG/AC PULSE TIG/DC TIG/DC PULSE TIG/MMA

  • HF start [HF TIG]

  • AC square waveform output, AC TIG aluminum welding

  • TIG parameters are adjustable (pre-gas/post-gas, up-slope/down-slope, arc starting/stopping, peak/base current, duty cycle/frequency, AC current/clean ratio/ AC BIAS/ AC frequency); digital display

  • 2T/4T operation mode;

  • Synchronous mutual welding function can be carried out by two welding machines

  • Water-cooled and gas-cooled TIG torch can be adopted

  • Remote control function: wired remote control [analog and digital types can be selected], foot pedal, potentiometer type welding torch whose current is adjustable

  • Continuously adjustable arc force in MMA mode realizes effects of unbroken arc, anti stick and stable arc

  • Suitable for BAS & RUT welding

  • Full-bridge inverter soft switch control technology, double IGBT modules for primary inverter, secondary inverter module, quick recovery diode module;

  • PCB is processed with three-proofing lacquer; the drive board is processed with rubber for protection

  • It enjoys IP21S class protection and H class insulation

  • Protection against overheat, over-current, over-voltage, lack of coolant and welding torch switch short-circuiting; error code display




ATIG315PACATIG500PACATIG630PAC
Rated input voltage/frequency (Hz)3 phase, 380V±10%, 50 /60Hz
Rated input capacity (KVA)13.625.434.8
Rated input current (A)20.738.752.9
Duty cycle (40̊C)60%@315A60%@500A60%@630A
OCV (V)(MMA /TIG)45 /7945 /7742 /79
MMAOutput current range (A)5-31510-50010-630
Arc force (A)10-200
TIGPre-gas/post gas (s)0.1-9.99/0.1-60
Initial/final current (A)5-315 /5-31510-500 /20-50010-630 /20-630
Up-slope/down-slope (s)0.1-10 /0.1-150.1-10 /0.1-150.1-10 /0.1-15
Peak current (A)5-31510-50010-630
Pulse frequency (Hz)0.2-20
Pulse duty cycle15%-85%
AC frequency (Hz)20-20020-100
AC balance-40%±40%
Protection classIP21S
Dimension (mm)655*324*546665*353*778690*385*825
Weight (kg /lb)50 /110.377 /17090 /198.6





  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Welding cable L=3m

  • 1 Ground cable L=3m

  • 1 TIG torch (water cooled)

  • Water cooling machine (Optional)

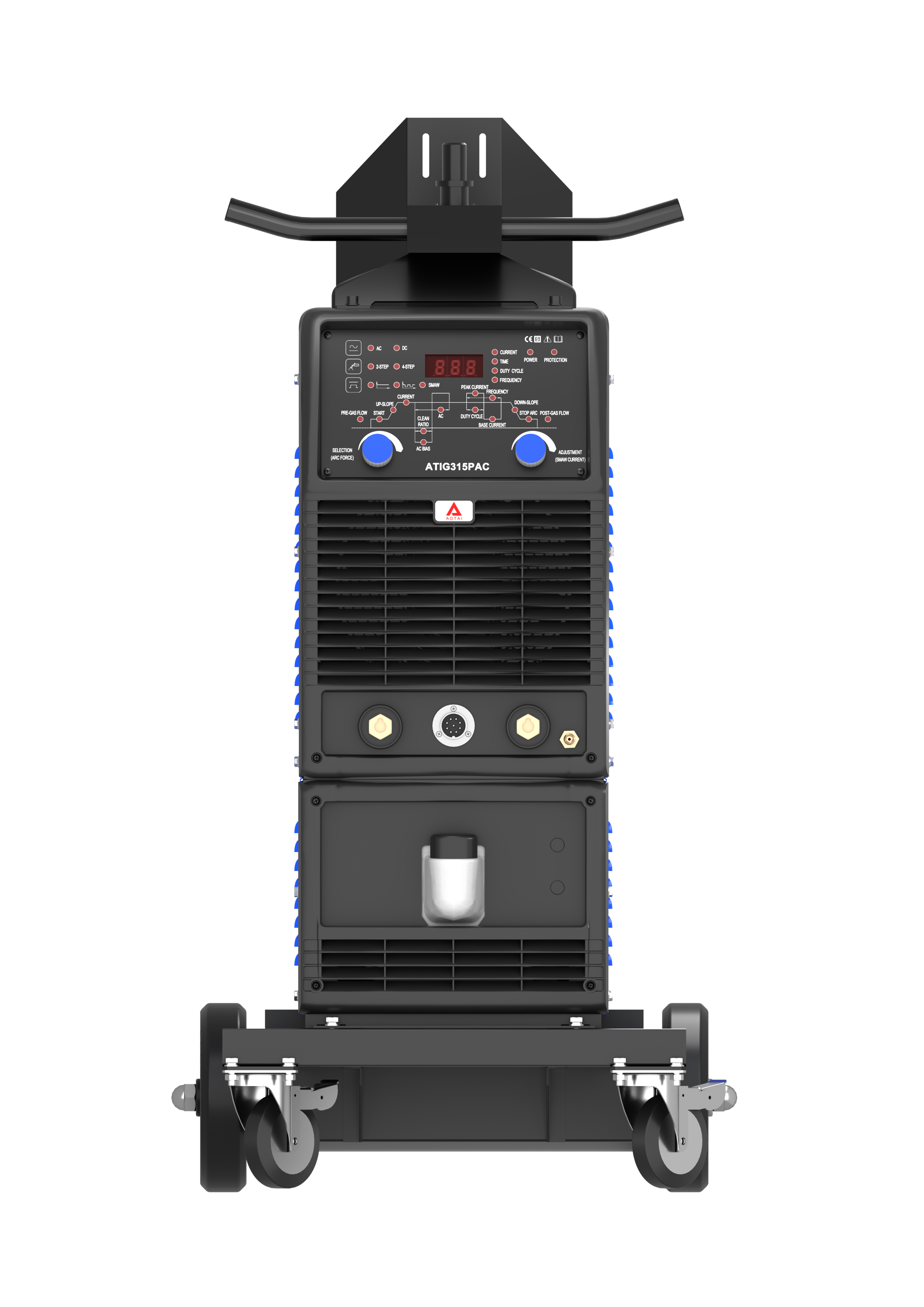

  • Trolley (Optional)

  • Remote control unit (Optional)

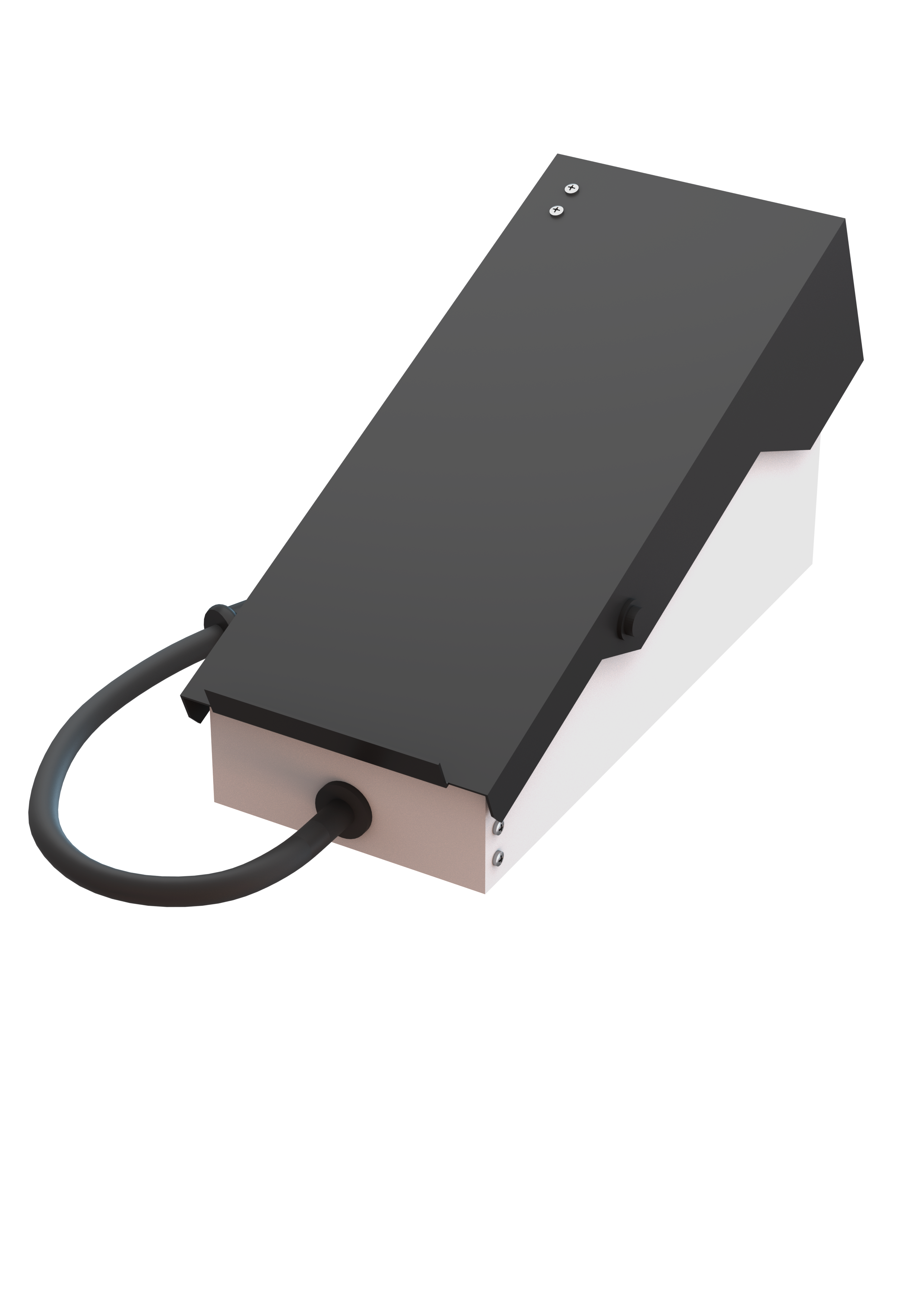

  • Foot pedal (Optional)
